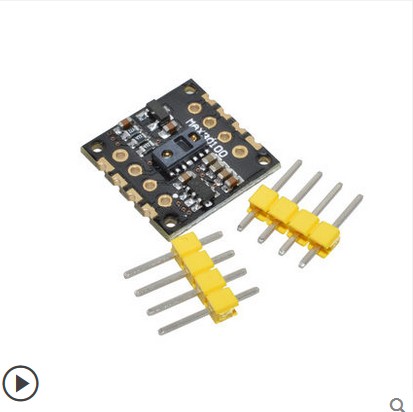

MAX30100 脈搏 血氧飽和 心率 Pulse Oximeter Heart-Rate Sensor

General Description:

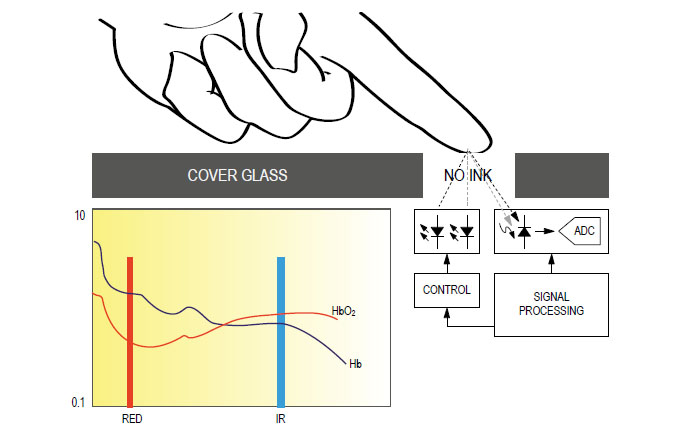

The MAX30100 is an integrated pulse oximetry and heart rate monitor sensor solution. It combines two LEDs, a photodetector, optimized optics, and low-noise analog signal processing to detect pulse oximetry and heart-rate signals.
The MAX30100 operates from 1.8V and 3.3V power supplies and can be powered down through software with negligible standby current, permitting the power supply to remain connected at all times.Applications:
● Wearable Devices
● Fitness Assistant Devices
● Medical Monitoring DevicesBenefits and Features:
● Complete Pulse Oximeter and Heart-Rate Sensor Solution Simplifies Design
Integrated LEDs, Photo Sensor, and High-Performance Analog Front -End
Tiny 5.6mm x 2.8mm x 1.2mm 14-Pin Optically Enhanced System-in-Package
● Ultra-Low-Power Operation Increases Battery Life for Wearable Devices
Programmable Sample Rate and LED Current for Power Savings
Ultra-Low Shutdown Current (0.7μA, typ)
● Advanced Functionality Improves Measurement Performance
High SNR Provides Robust Motion Artifact Resilience
Integrated Ambient Light Cancellation
High Sample Rate Capability
Fast Data Output Capability
