商品說明

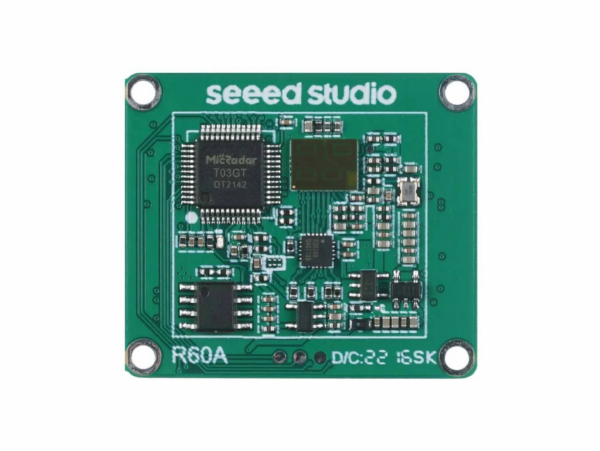

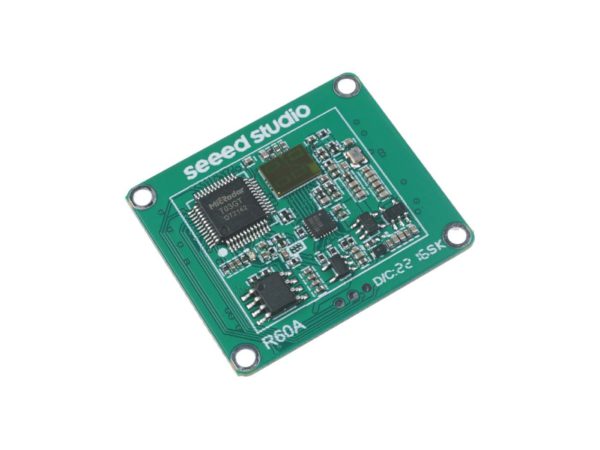

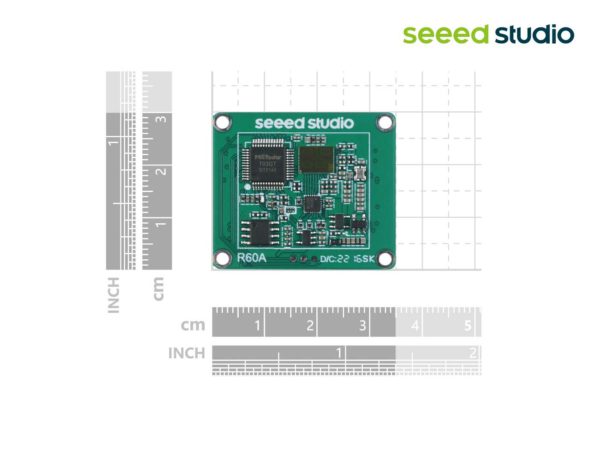

60GHz Respiratory Heartbeat Sensor 生物心律雷達感測器
MR60BHA1 60GHz 雷達模塊基於調頻連續波(FMCW)檢測理論實現個人呼吸率和心率檢測,提供完全私密和安全的環境,不受其他噪聲影響。此外,通過內置標準算法和板載天線,該單元可確保同時高精度地輸出信號。它代表了消費電子、醫療保健和工業應用中高精度、自我調節、隱私保護、安全的生物雷達系統的理想解決方案。
由於距離分辨率在很大程度上取決於可用帶寬,因此 60 GHz 毫米波傳感器將提供比 24 GHz 傳感器更好的性能,以實現高精度和可靠的物體識別。同時,60 GHz 毫米波傳感器收集豐富的點雲數據,因為對於保持呼吸和心跳場景的高測量精度至關重要。由於雷達主要根據呼吸心律工作,通過60GHz毫米波在大塊肌肉表面產生起伏運動,因此人體胸部和背部的起伏會更加明顯。
MR60BHA1雷達利用60GHz FMCW的優良性能,利用智能處理算法實現高精度輸出,如85%的心跳檢測和90%的呼吸檢測。此外,雷達可以不受溫度、濕度、噪聲、氣流、灰塵、光線和其他環境影響的影響。設計為低功率輸出,雷達在被觀察時保持健康的工作狀態。對於隱私保護,雷達提供了一個完美的解決方案,應用FMCW監控技術,配備無需識別的監控能力。
雷達支持二次開發,適應各種場景應用。使用通用 UART 通信接口提供額外的通用協議,即 4 組 IO,由用戶定義保留。檢測區域為水平80°傾斜80°的三維扇形,實測距離在0.4-2m之間。
注意:
- 該傳感器雷達用於呼吸心跳檢測,設計用於成人正常靜息心率範圍為每分鐘 60 至 100 次,測試範圍為每分鐘 100 次以下。至於測試一般人的心率在80次左右。
- 由於檢測機制為調頻連續波機制,理論上不會出現同頻干擾。但是強烈建議雷達傳感器之間至少保持 1m 的安裝間距,以免相互干擾。
特徵
- 使能理論:基於FMCW調頻連續波信號實現雷達檢測
- 標準算法:自適應環境下同時感知和輸出人體呼吸頻率和心律
- 完善的隱私保護:應用FMCW監控技術,提供無需身份識別的監控能力
- 健康工作狀態:輸出功率低至對人體無害
- 高穩定性:不受溫度、濕度、噪音、氣流、灰塵、光線和其他環境影響
- 測量精度高:心跳精度高達85%,呼吸精度高達90%
- 高彈性硬件設計雷達:支持二次開發,適應各種場景應用
應用
- 智能家居
- 衛生保健
- 呼吸頻率檢測
- 心跳率檢測
- 智能酒店
- 醫療助理
Documents
- Breathing and Heartbeat Radar Sensor Datasheet
- Breathing and Heartbeat Radar Sensor User Manual
- 60G-Radar-heartbeat-3D
- Upper Computer Software
- Seeed mmWave sensor series V2.0.pptx
- Seeed Studio MMWave Sensor Case Design
教學專題
-
[Project] med Spec Mk.I – a medical tricorder –
=========================================================
60GHz mmWave Sensor – Human Resting Breathing and Heartbeat Module
Description
The MR60BHA1 60GHz radar module implements personal breathing rate and heart rate detection based on Frequency Modulation Continuous Wave(FMCW) detected theory, providing a fully private and secure environment, independently from other noisy influences. Additionally, with built-in a standard algorithm and onboard antenna, the unit ensures simultaneous signal output in high accuracy. It represents an ideal solution for high-accurate, self-regulation, privacy-protected, secure biotic radar systems in consumer electronics, healthcare as well as industrial applications.
Because the range resolution is heavily dependent on available bandwidth, 60 GHz mmWave sensors will offer significantly better performance than 24 GHz sensors for high-accuracy and reliable object identification. Meanwhile, 60 GHz mmWave sensors gather rich point-cloud data as it is critical to maintain high measurement accuracy for respiratory and heartbeat scenarios. As the radar works mainly on the basis of the respiratory heart rhythm causing undulating movements on the surface of the large muscles through 60 GHz mmWave, the undulation of the human chest and back will be more pronounced
The MR60BHA1 radar leverages the fine performance of 60 GHz FMCW and utilizes an intelligent processing algorithm to achieve the high-accuracy output, as 85% of heartbeat detection and 90% of breathing detection. Furthermore, the radar can be independent from temperature, humidity, noise, airflow, dust, light, and other environmental influences. Designed as low power output, the radar maintains health-friendly working status while it is observed. For privacy protection, the radar provides a perfect solution that applies FMCW monitoring technology to equip surveillance capabilities without identification.

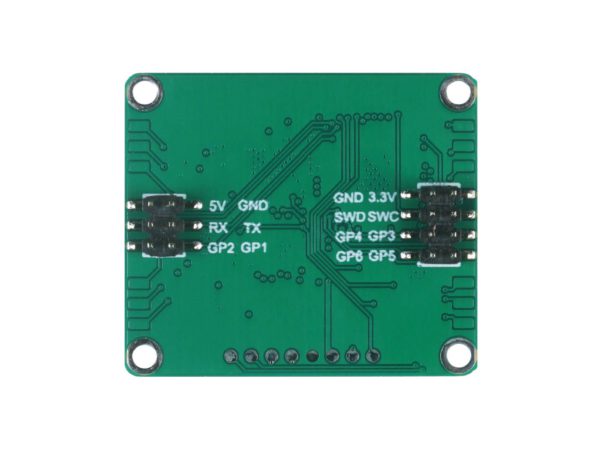

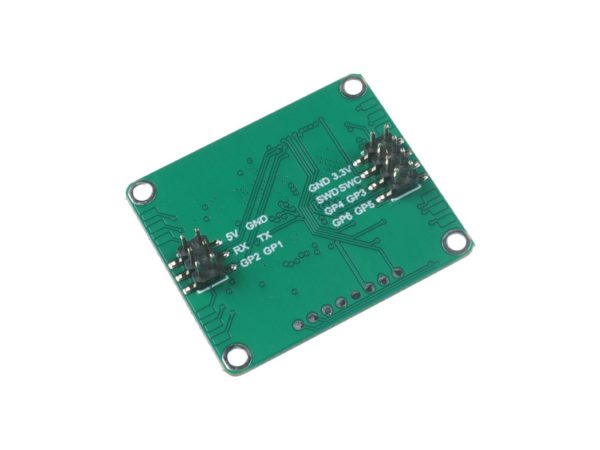

The radar supports secondary development and it adapts to various scenarios applications. Using a universal UART communication interface provides an extra common protocol as 4 groups of IO that are reserved by the user’s definition. The detected area is a three-dimensional sector of 80° horizontally and 80° tilted and the measured distance is between 0.4-2 m.
Feature
- Enabled theory: Implement radar detection based on FMCW FM continuous wave signals
- Standard algorithm: Sense and output simultaneously human respiratory rate and heart rhythm in the self-adaption environment
- Perfect privacy protection: Apply FMCW monitoring technology to provide surveillance capabilities without identification
- Health-friendly working status: Output power as low as harmless to the human body
- High stability: Independ from temperature, humidity, noise, airflow, dust, light, and other environmental influences
- High measured accuracy: Achieve heartbeat accuracy up to 85% and achieve breathing accuracy up to 90 %
- High flexibility hardware design radar: Support secondary development, adapt to various scenarios applications
Application
- Smart home
- Health care
- Breathing rate detection
- Heartbeat rate detection
- Smart hotel
- Medical assistants
Specification
Parameter content |
Minimum |
Typical |
Maximum |
Unit |
Performance |
||||
Detection distance (thoracic) |
0.4 |
2 |
m |
|
Respiratory measurement accuracy |
90 |
% |
||
Heartbeat measurement accuracy |
85 |
% |
||
Refresh time |
1 |
30 |
S |
|
Observation set-up time |
20 |
S |
||
Operating parameters |
||||
Operating voltage (VCC) |
4.6 |
5 |
6 |
V |
Operating current (ICC) |
150 |
mA |
||
Operating temperature (TOP) |
-20 |
60 |
℃ |
|
Storage temperature (TST) |
-40 |
80 |
℃ |
|
Launch parameters |
||||
Operating frequency (fTX) |
58 |
60 |
63.5 |
GHz |
Transmitted power (Pout) |
6 |
dBm |
||
Antenna parameters |
||||
Antenna gain (GANT) |
4 |
dBi |
||
Horizontal beam (-3dB) |
-40 |
40 |
o |
|
Vertical beam (-3dB) |
-40 |
40 |
o |
24GHz and 60GHz Radar Sensors Comparison
Parameter | 24GHz Radar Sensors | 60 GHz Radar Sensors |
Frequency | 24 GHz | 60 GHz |
Theory | Doppler | FMCW |
Antenna | 1T1R | 1T3R |
Position Detection | – | Yes |
Point-Cloud Data | – | **** |
Velocity Resolution | ** | **** |
Range Resolution | ** | **** |
Precision | *** | **** |
Part List
MR60BHA1 60GHz mmWave Radar Module | x1 |
