Grove – Piezo Vibration Sensor MEAS 壓電式 振動 感測器 震動傳感器 seeed原廠

-18%

Grove – Piezo Vibration Sensor MEAS 壓電式 振動 感測器 震動傳感器 seeed原廠

NT$267 NT$220 未稅

主要用於汽車防盜報警器、臥式滾筒洗衣機振動不平衡及其他要求安靜、小噪音的家用電器如空調及電廣靶鏢記分等 振動 信號的檢測,也可以用於記數器的觸發器做為柔性開關、脈膊檢測、聲納測量等等。

尚有庫存

  • 商品說明

商品說明

Grove – Piezo Vibration Sensor MEAS 壓電式振動感測器 震動傳感器

適用於測量柔韌性,振動,衝擊和触感。該模塊基於PZT薄膜傳感器LDT0-028。當傳感器來回移動時,其內部的電壓比較器將產生一定的電壓。

因此,輸出高低水平。儘管它具有高強度衝擊接收性,但寬動態範圍(0.001Hz~1000MHz)也保證了出色的測量性能。最後,您可以通過螺絲調節電位器來調節其靈敏度。

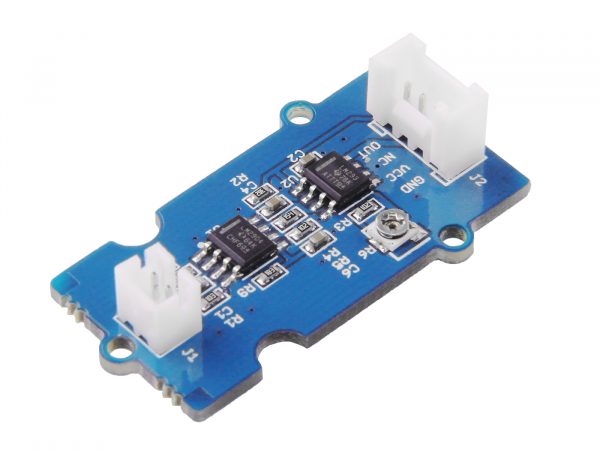

Grove - Piezo Vibration Sensor

特徵

  • 標準Grove接口
  • 寬動態測量範圍:為0.1Hz〜180Hz
  • 測量靈敏度可調
  • 高度感知強烈衝擊



出貨清單

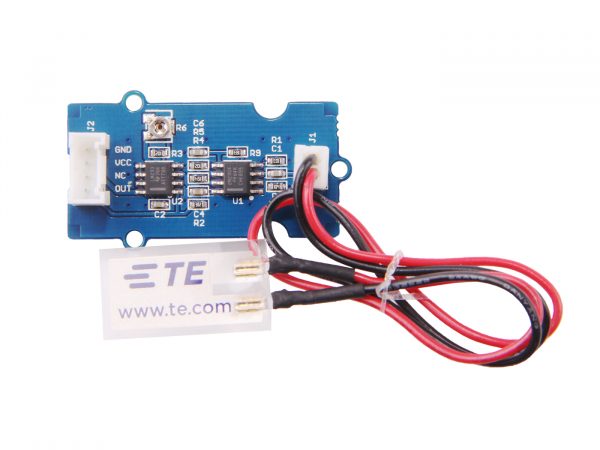

  • Grove – Piezo Vibration Sensor x1
  • Grove連接線 x1



Documents





=========================================================



Grove – Piezo Vibration Sensor

Grove- Piezo Vibration Sensor is suitable for measurements of flexibility, vibration, impact and touch. The module is based on PZT film sensor LDT0-028. When the sensor moves back and forth, a certain voltage will be created by the voltage comparator inside of it.

Therefore, outputs high & low levels. In spite of the fact that it has a high receptivity for strong impacts, a wide dynamic range (0.001Hz~1000MHz) also guarantees an excellent measuring performance. Finally, you can adjust its sensitivity by adjusting the potentiometer with a screw.

Features

  • Standard grove socket
  • Wide dynamic range:0.001Hz~1000MHz
  • Adjustable sensitivity
  • High receptivity for strong impact

Applications

  • Vibration Sensing in Washing Machine
  • Low Power Wakeup Switch
  • Low Cost Vibration Sensing
  • Car Alarms
  • Body Movement
  • Security Systems
