Beetle  BLE 開發板-Arduino ATmega328整合CC2540 (NANO內建藍芽)

商品說明

Beetle  BLE – Arduino ATmega328+CC2540 (NANO+藍芽4.0)

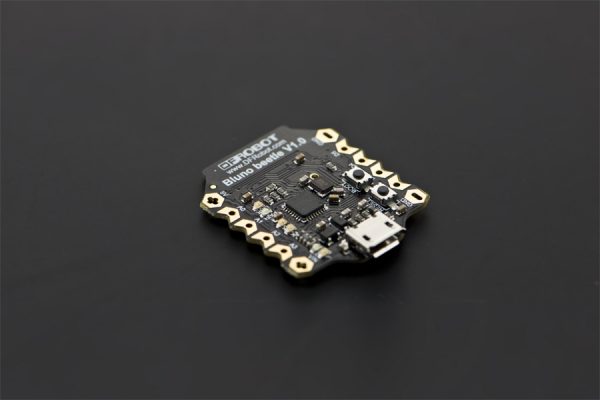

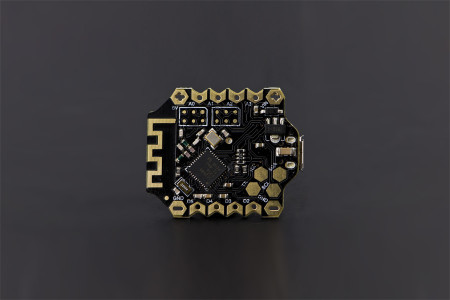

Beetle  BLE 是一款只有SD卡大小，集成藍牙4.0功能的Arduino主控器。它是可穿戴電子應用的又一突破，讓DIY用戶在項目設計中有了更多選擇。

它與DFRobot暢銷的Bluno系列主控完全相容，可以通過Micro USB介面可直接下載、調試程式，無需編程器，同時也支援藍牙遠端更新Arduino程式。

V形大尺寸鍍金IO口，體積小巧，可將將導線擰於其上，縫製在衣服上，不焊接也可以使用。是可穿戴設備的不二之選。

可加購 Beetle BLE 多功能擴展板，使得Beetle BLE更佳方便靈活使用

特徵

規格

• 藍牙晶片：TI CC2540
• 工作頻率：2.4GHz
• 調製或協定：藍牙低功耗，V4.0
• 靈敏度：-93dBm
• 工作溫度範圍：-10 ℃ ~ +85 ℃
• 最遠傳輸距離： 50m左右（空曠地帶）
• 微控制器：ATmega328
• 時鐘頻率：16 MHz
• 工作電壓：5V DC
• 輸入電壓：<8V (Vin<8V)
• 數字口數量：4個
• 模擬輸入口數量：4個
• PWM口數量：2個
• UART埠：1組
• I2C埠：1組
• Micro USB介面：1個
• 電源埠：2組

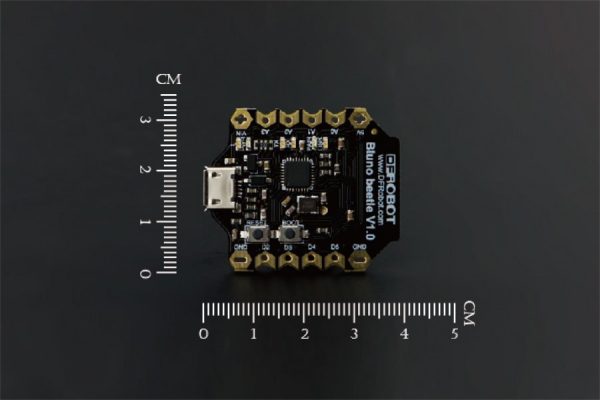

• 尺寸： 28.8mm X 33.1mm
• 重量：10g



出貨清單

• Beetle BLE x1



Documents

• Wiki (Beetle BLE – The smallest Arduino bluetooth)
• wiki
• Schematic
• Layout_Top
• Layout_Ground



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



Beetle BLE – The smallest Arduino bluetooth 4.0 (BLE)

The Beetle Ble (Former name as Bluno Beetle)  is  an Arduino Uno based board with  bluetooth 4.0 (BLE).  It is probably thesmallest Arduino BLE board in the market.  It uses standard Arduino IDE to upload codes via  without any extra library and drivers.  This Beetle BLE is another milestone in the Beetle line, which makes DIY users have more options in the project design. It is fully compatible with Bluno in instructions and procedures. Support Bluetooth HID and ibeacon modes. You may also check Bluetooth microcontrollor selection guide to get more information.

The Beetle BLE offers a super tiny and low cost Arduino with bluetooth 4.0. The Beetle BLE can be used for disposable projects, such as DIY projects, workshops, gift projects, E-Textiles wearable and educational. For students and makers who can not afford too much on hardware purchasing, Beetle can be a great solution for them.

Just like a native Arduino board, but with Bluetooth 4.0. An APP called Play Bluno is avaliable on IOS and Android which gives a quick access to this little tiny board.

It not only supports USB programming, but also wireless uploading method. With the V shaped gilded I/O interface, it is convenient to screw conductor wire on it, which could a good choice in the wearable market.

FEATURES

SPECIFICATION

DOCUMENTS

SHIPPING LIST
