Gravity: Bluno Beetle Shield Beetle BLE 多功能擴展板 DFRobot原廠

NT$333 NT$260 未稅

只要按照說明,將Bluno Beetle焊接在上面,你就可以直插3pin的傳感器和其他擴展設備。另外,擴展板還具備外接電源接口,可直接外接供電。

尚有庫存

  • 商品說明

商品說明

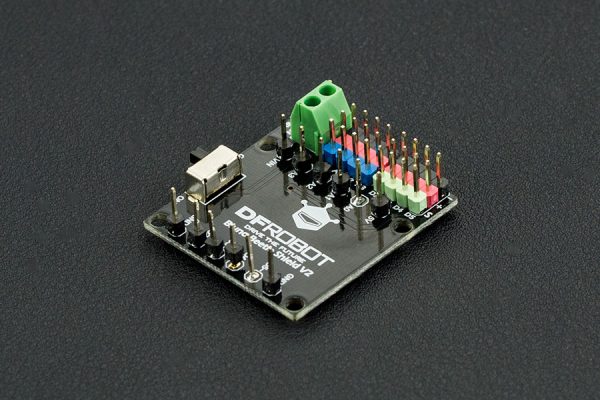

Gravity: Bluno Beetle Shield Beetle BLE 多功能擴展板

在硬幣大小的bluno beetle控制器上如何接線?如果你不懂焊接,這將會是一個頭痛的問題。為了讓用戶方便快捷地利用Bluno Beetle的端口資源,DFRobot特製了這款擴展板。

只要按照說明,將Bluno Beetle焊接在上面,你就可以直插3pin的傳感器和其他擴展設備。另外,擴展板還具備外接電源接口,可直接外接供電。

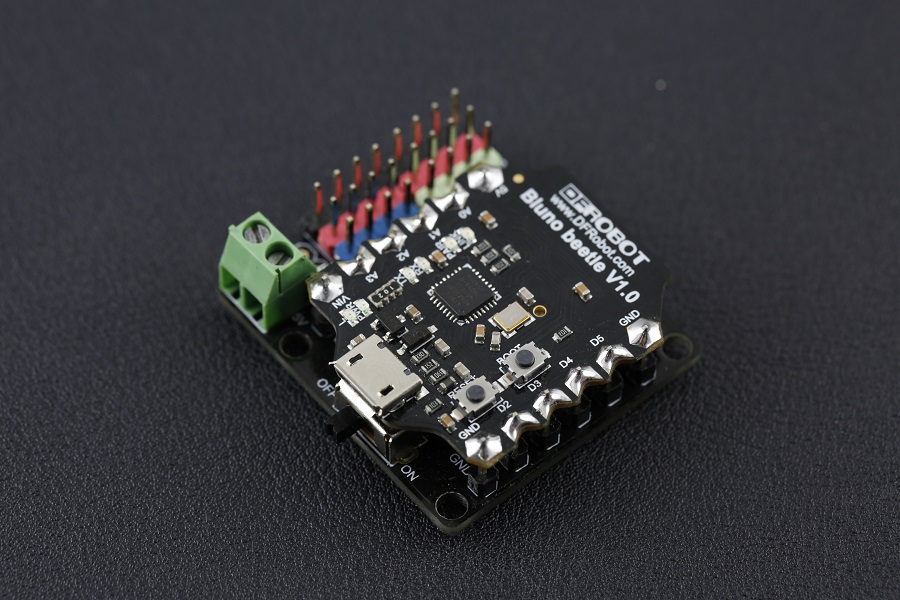

Bluno Beetle 堆疊在Bluno Beetle Shield上

規格

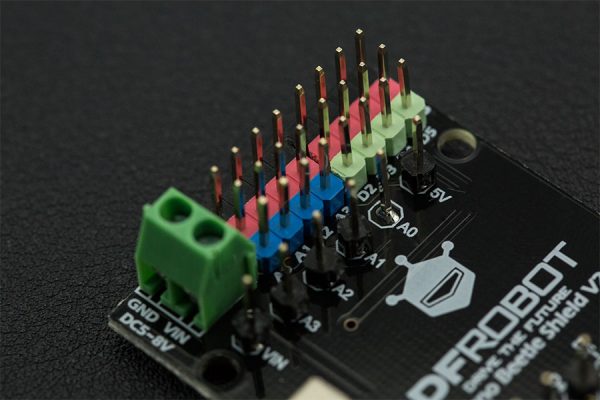

  • 4個數字口(D2-D5),
  • 4個模擬口(A0-A3)。

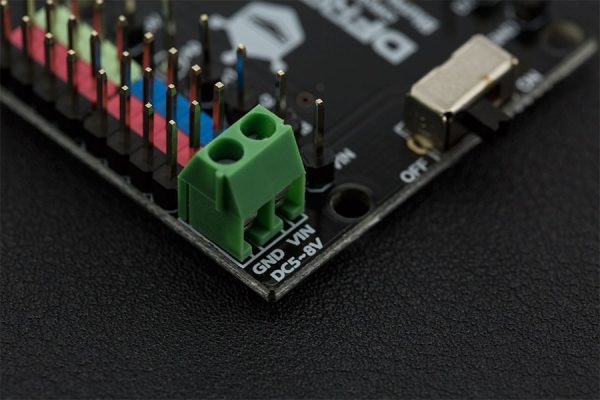

  • VIN輸入電源範圍:5~8V

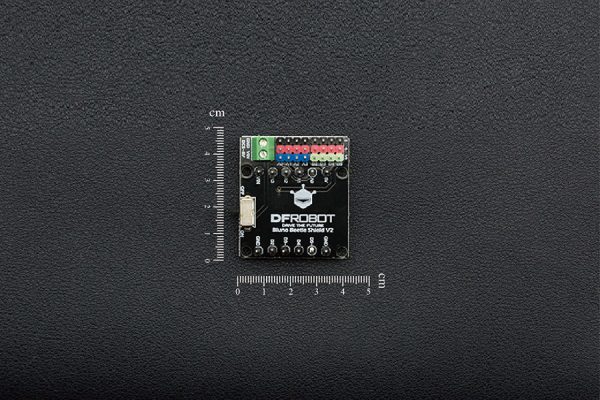

  • 尺寸:38*37mm

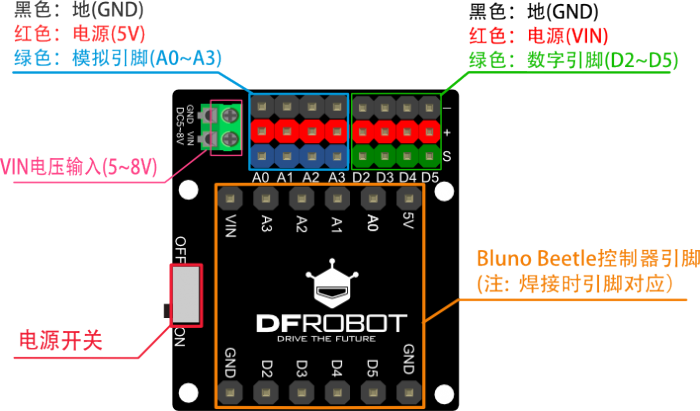

引腳說明

DFR0356 pin out1.png
注意:
  • 數字口(D2-D5)上方的紅色VCC管腳與VIN端直連,如果你在VIN接了5.5V以上的電壓,切忌直連5V的傳感器設備,以免燒壞。
  • 模擬口(A0~A3)上方的紅色VCC管腳與Bluno Beetle 5V端直連
  • 電源開關:接通或者關斷外接電源
當你通過USB連接Beetle供電時,只有模擬口的電源管腳有5V電壓;當你通過VIN外接供電時,數字口上的電源管腳擁有與VIN相同的供電電壓,模擬口也會有5V供電(推薦)

使用注意事項

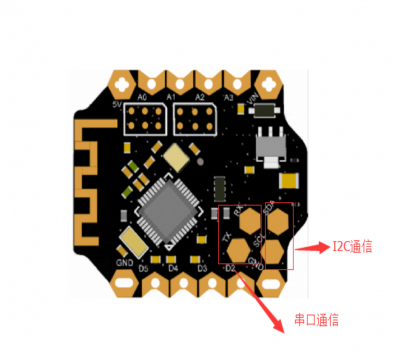

1.在焊接之前如果使用串口或者使用I2C接口,需要焊接出來引線(因為串口和I2C接口在Bluno beetle的背面)

Bluno beetle.png
2.按照引腳對應焊接好

焊接時要注意正反面,按照對應引腳焊接,注意Beetle底部元件與金屬開關需要保持一點距離,防止短路。



Bluno beetle焊接圖1.png

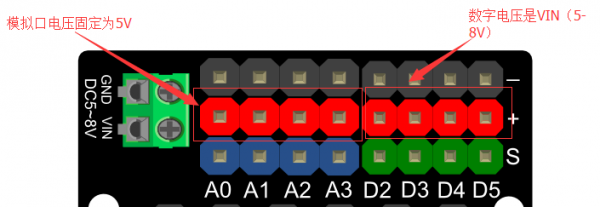

3.模擬口的電壓固定在5V,數字口的電壓是隨Vin的變化而變化的

出貨清單

  • Bluno Beetle Shield x1





Documents





=========================================================



Gravity: Bluno Beetle Shield

The Bluno Beetle Shield expands the Beetle’s single analog and digital I/O pins to the 3 pin “gravity” interface, giving more power and ground connections and making it easier to attach gravity interface modules. It also includes a convenient external power supply and a 5-8v switch to power the board on and off. To use the shield, the Bluno Beetle is stacked on to the shield’s I/O pins and then soldered in place.

FEATURES

  • Digital I/O Pins x4: D2-D5
  • Analog Input Pins x4: A0-A3
  • Vin input range: 5-8v
  • Mounting Holes x4 (3mm diameter)
  • Power Switch

DOCUMENTS

SHIPPING LIST

  • Bluno Beetle Shield x1
