micro: Breadboard 麵包板 擴展板 DFRobot原廠
NT$500 NT$420 未稅
該擴展板適用於電子電路組裝,調試及訓練。micro:bit麵包板擴展板可應用於以micro:bit為基礎的各個項目,例如光控小燈,智能門鈴,溫度報警器等。
尚有庫存
- 商品說明
商品說明

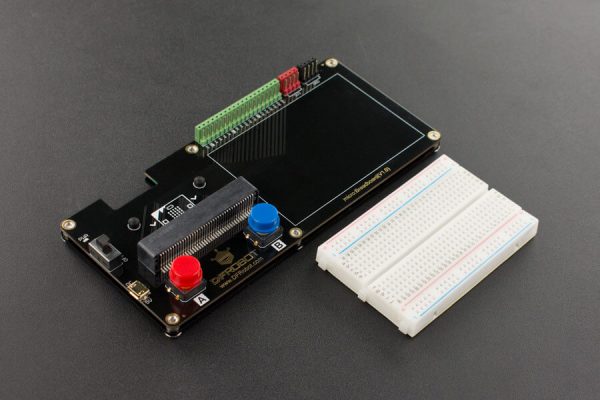

micro: Breadboard 麵包板 擴展板
這是一款基於 micro:bit 主板設計,專注於入門教育的擴展板。支持 micro:bit 直插,即插即用,方便快捷。
該擴展板搭載標準8.2cm*5.5cm的中型麵包板(麵包板獨立包裝,自主黏貼),各類電子元器件可直接插拔搭建電路,降低了電路連接入門門檻。
所有IO口皆以排針排母方式引出,簡單易用;電路免焊接,可重複使用各元件,節省了電路組裝時間;板載AB按鍵,方便控制,玩法更多樣;配備PWR狀態指示燈,獨立電源開關,方便實時查看供電情況。
該擴展板適用於電子電路組裝,調試及訓練。 micro:bit 麵包板擴展板可應用於以 micro:bit 為基礎的各個項目,例如光控小燈,智能門鈴,溫度報警器等。
特徵
- 電路免焊接,可重複使用元件
- 所有的IO口以排針排母的方式引出,簡單易用
- 支持圖形化編程,mind+和python
- Micro USB 5V電源接口
規格
- 工作電壓:3.5~5V
- 數字輸出電壓:0V/3.3V
- 模擬輸出電壓:0~3.3V DC
- 接口使用排針和排母
- micro:bit接口x19(P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P19 P20)
- 電源接口x4
- GND接口x4
- 8.2cm*5.5cm中型麵包板x1
- PWR供電指示燈x1
- 板載兩個A,B按鍵

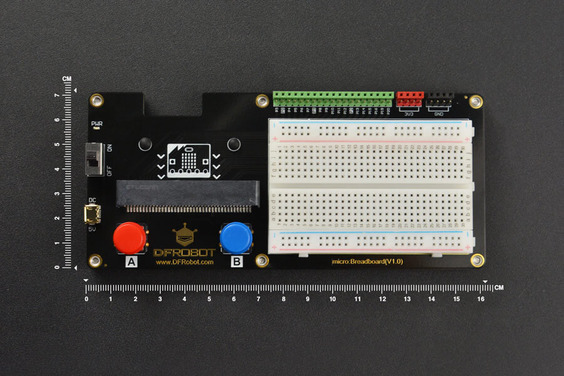

- 模塊尺寸:16.2cm*7.2cm
- 安裝孔規格:M3螺絲孔

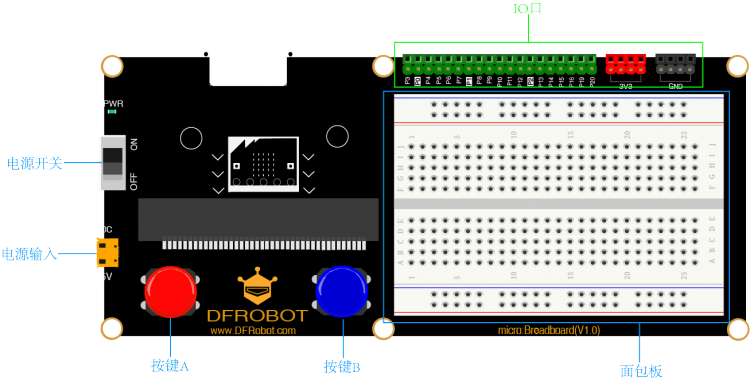

功能說明
出貨清單
- Micro:bit 麵包板擴展板 x1
- 中型麵包板 x1
Documents
=========================================================
micro: Breadboard
Micro:breadboard is a micro:bit-based expansion board specially designed for STEM-starter. It comes with a 3.23*2.17” breadboard (independent packing, you need to stick them together), on which you can directly build circuit with all sorts of electronic components.All IO ports are led out in the form of pin header and female header, no welding required, plug and play. The electronic parts can be used repeatedly, which greatly reduces the circuit building time. The board has on-board AB buttons, PWR indicator, and independent power switch, more ways to play, meanwhile, much easier to use.
This micro:breadboard is especially suitable for building and debugging circuits. It also can be applied to the micro:bit-based applications like, light control lamp, smart doorbell, temperature alarm etc.
FEATURES
- Free from soldering, electronic components can be used repeatedly
- IO ports are led out in the form of pin header and female header, easy to use;
- Support visual programming, mind+ and python
- Micro USB 5V power interface
SPECIFICATION
- Operating Voltage: 3.3~5V
- Digital Output Voltage: 0V/3.3V
- Analog Output Voltage: 0~3.3V DC
- Pin Header and Female Header Interface
- micro:bit Interface ×19 (P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P19 P20)
- Power Interface ×4
- GND Port ×4
- 3.23 * 2.17” Breadboard (middle size) ×1
- PWR Indicator ×1
- Power Switch ×1
- On-board Button(A/B) ×2
- Dimension: 16.2cm×7.2cm/6.38×2.83”
- Mounting Hole Size: M3 Screw hole
DOCUMENTS
SHIPPING LIST
- Micro:bit Breadboard x1
- Middle Size Breadboard x1
