Grove AI HAT 人工智慧 for Edge Computing 邊緣運算

用於邊緣計算的Grove AI HAT（以下稱為“Grove AI HAT”）是圍繞Sipeed MAix M1 AI MODULE和Kendryte K210處理器構建的。它是一款低成本但功能強大的樹莓派AI帽子，可幫助樹莓派在邊緣運行AI，它還可以獨立地用於邊緣計算應用。

MAix M1是功能強大的RISC-V 600MHz AI模塊，具有雙核64位CPU，230GMULps 16位KPU（神經網絡處理器），FPU（浮點單元）支持DP和SP，APU（音頻處理器）支持8個麥克風。

除了功能強大的Kendryte K210處理器外，用於Edge Computing板的Grove AI HAT還提供豐富的外設：I2C / UART / SPI / I2S / PWM / GPIO。該帽子還提供LCD和相機接口，支持Sipeed 2.4英寸QVGA LCD和DVP相機，它將為您的AI視覺項目提供幫助和便利。就像用於RISC-V AI + IoT的Sipeed MAix BiT套件一樣，我們很快就會發布帶有攝像頭和LCD的套件。對於AI語音識別應用，我們添加了高品質的麥克風。對於機器人或運動應用，有一個板載3軸加速度計傳感器，與外部傳感器相比，它更精確，更易於使用。

我們為這個帽子增加了6個樹叢連接器，包括1xDigital IO，2xAnalog IO，1xI2C，1xUART和1xPWM。最重要的是，基於kendryte-standalone-sdk，我們添加了完整的ArduinoCore-API接口，以支持Arduino IDE，Linux，Windows，Mac OS X和其他開發環境。這意味著您可以輕鬆地在此板上運行Grove Arduino庫和許多優秀的Arduino庫。

我們希望這個板可以幫助您進行邊緣計算，AI視覺，語音識別和其他AI項目，只需享受它。



特徵

  • 處理器：沒有WiFi的Sipeed MAIX-I模塊（第一個RISC-V 64 AI模塊，內部K210）
  • 1個USB 2.0設備，C型（電源和編程）
  • 6x Grove接口：包括1x數字IO，1x PWM，1x I2C，1x UART，2x ADC
  • 1個電源LED，1個啟動LED（可用作用戶LED）
  • 1個重置按鈕，1個啟動按鈕（可用作用戶按鈕）
  • 1x LCD接口
  • 1x相機接口
  • 1x數碼麥克風
  • 1x加速度計傳感器
  • 1x JTAG和ISP UART引腳接頭
  • 2x 20引腳接頭，帶I2C，UART，SPI，I2S，PWM，GPIO

規格參數

參數 值
中央處理器 K210 RISC-V雙核64bit，400Mh（最大600Mhz）
FPU 符合IEEE754-2008標準的高性能流水線FPU
KPU（神經網絡處理器） •支持主流培訓框架根據特定限制規則訓練的定點模型
•支持1×1和3×3卷積內核
•支持任何形式的激活功能
•實時工作的最大支持神經網絡參數大小為5MiB 5.9MiB
APU（音頻處理器） •高達192kHz的採樣率
•最多8個通道的音頻輸入數據，即4個立體聲通道
調試支持 用於調試的高速UART和JTAG接口
電源電壓 5V
不能超過5.5V
IO電壓 3.3V
工作環境溫度 -20 – 70℃
ADC 板載16位ADC
3軸加速度計 ADXL345±2 g /±4 g /±8 g /±16 g
Micrephone 靈敏度：-26 dB;信噪比：61 dB
GPIO 2x 20 Pin Header與Raspberry Pi兼容
格羅夫接口 1x數字IO，1x PWM，1x I2C，1x UART，2x ADC
USB接口 USB 2.0設備，C型（電源和編程）
LCD接口 8位MCU LCD 24P 0.5mm FPC連接器
DVP攝像頭接口 24P 0.5mm FPC連接器
按鍵 1個重置按鈕，1個啟動按鈕（可用作用戶按鈕）
LED 1個電源LED，1個啟動LED（可用作用戶LED）

注意

  • 所有數字和模擬IO接口電平均為3.3V。請不要輸入超過3.3V，否則可能會損壞CPU。
  • 輸入電源電壓為5V，不能超過5.5V。



應用

  • 用於邊緣計算的AI
  • 智能建築
  • 醫療器材
  • 自動化與過程控制
  • 機器人

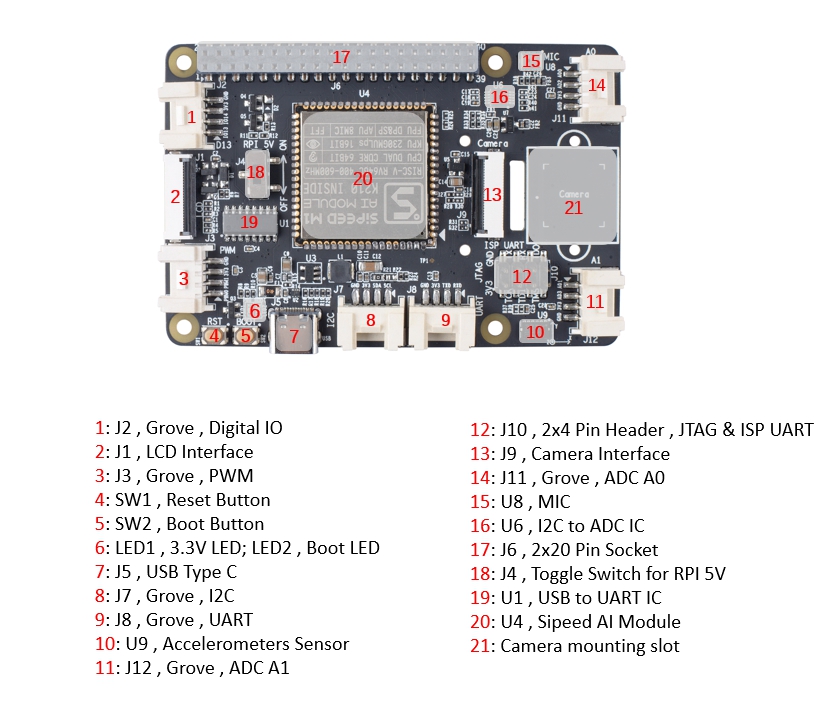

硬件概述

出貨清單

  • Grove AI HATfor Edge Computing x1



Documents



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



Grove AI HAT for Edge Computing

The Grove AI HAT for Edge Computing is built around Sipeed MAix M1 AI MODULE with Kendryte K210 processor inside. It’s a low cost but powerful raspberry pi AI hat which assists raspberry pi run the AI at the edge, it also can work independently for edge computing applications.
The MAix M1 is a powerful RISC-V 600MHz AI module that features dual-core 64-bit CPU, 230GMULps 16-bit KPU(Neural Network Processor), FPU(Float Point Unit) supports DP&SP, and APU(Audio Processor) supports 8 mics.
In addition to the powerful Kendryte K210 processor, the Grove AI HAT for Edge Computing board provides a wealth of peripherals: I2C/UART/SPI/I2S/PWM/GPIO. The hat also offers an LCD and a camera interface, which supports the Sipeed 2.4inch QVGA LCD and DVP camera, it will be helpful and convenience with your AI vision project. Just like the Sipeed MAix BiT Kit for RISC-V AI+IoT, we will release the kit with a camera and an LCD soon. For AI voice recognition applications, we add a high-quality microphone. And for robot or motion applications, there is an onboard 3-axis accelerometers sensor, which is more accurate and easy to use compared to external sensors.
We have released varies of SIPEED AI products, we believe it is time to make it Grove and bring all our hundreds of grove senors and grove actuators to your AI applications. So here comes the Grove AI HAT for Edge Computing. We’ve added 6 grove connectors to this hat, including 1xDigital IO, 2xAnalog IO, 1xI2C, 1xUART, and 1xPWM. On top of that, based on kendryte-standalone-sdk, we added the full ArduinoCore-API interface to support Arduino IDE, Linux, Windows, Mac OS X, and other development environments. Which means you can run Grove Arduino Libraries and many excellent Arduino librarieson this board easily.
We hope this board may help you with your edge computing, AI vision, voice recognition, and other AI project.
Sincerely thanks for yokonav, marioalemn, shunya.sato.310, ross728, hitmanarky and all the other customers who gave us advice during the development of the this hat, we’ve listened to their opinions and adopted some suggestions. Please advise us in New Product Ideas, looking forward to your valuable comments.

Features

  • Processor: Sipeed MAIX-I module w/o WiFi ( 1st RISC-V 64 AI Module, K210 inside )
  • 1x USB 2.0 Device, Type C(Power and Programming)
  • 6x Grove Interface: include 1x Digital IO, 1x PWM, 1x I2C, 1x UART, 2x ADC
  • 1x Power LED, 1x Boot LED(can be used as User LED)
  • 1x Reset Button, 1x Boot Button (can be used as User Button)
  • 1x LCD Interface
  • 1x Camera Interface
  • 1x Digital Mic
  • 1x Accelerometers Sensor
  • 1x JTAG & ISP UART Pin Header
  • 2x 20 Pin Header with I2C, UART, SPI, I2S, PWM, GPIO

Specification

Parameter Value
CPU K210 RISC-V Dual Core 64bit, 400Mh(Max. 600Mhz)
FPU IEEE754-2008 compliant high-performance pipelined FPU
KPU(Neural Network Processor ) • Supports the fixed-point model that the mainstream training framework trains according to specific restriction rules
• Support for 1×1 and 3×3 convolution kernels
• Support for any form of activation function
• The maximum supported neural network parameter size for real-time work is 5MiB to 5.9MiB
APU(Audio Processor) • Up to 192kHz sample rate
• Up to 8 channels of audio input data, ie 4 stereo channels
Debugging Support High-speed UART and JTAG interface for debugging
Supply Voltage 5V
can not exceed 5.5V
IO Voltage 3.3V
Operating Ambient Temperature -20 – 70℃
ADC Onboard 16-bit ADC
3-Axis Accelerometers ADXL345 ±2 g/±4 g/±8 g/±16 g
Micrephone Sensitivity:-26 dB;SNR:61 dB
GPIO 2x 20 Pin Header compatible with Raspberry Pi
Grove Interface 1x Digital IO, 1x PWM, 1x I2C, 1x UART, 2x ADC
USB Interface USB 2.0 Device, Type C(Power and Programming)
LCD Interface 8bit MCU LCD 24P 0.5mm FPC connector
DVP Camera Interface 24P 0.5mm FPC connector
Button 1x Reset Button, 1x Boot Button (can be used as User Button)
LED 1x Power LED, 1x Boot LED(can be used as User LED)

Attention

  • All digital and analog IO interface levels are 3.3V. Please do not input more than 3.3V, otherwise the CPU may be damaged.
  • The input power supply voltage is 5V and cannot exceed 5.5V.

Applications

  • AI for Edge Computing
  • Smart Building
  • Medical equipment
  • Automation & Process Control
  • Robot
