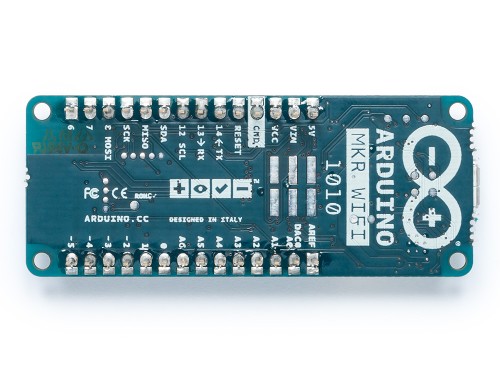

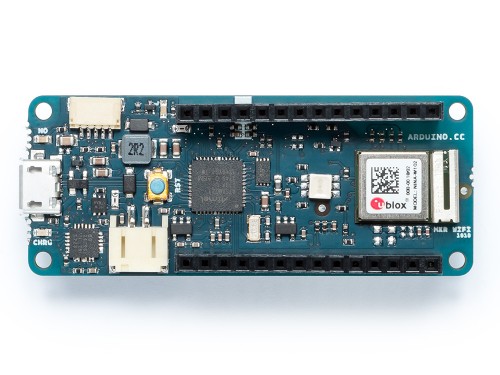

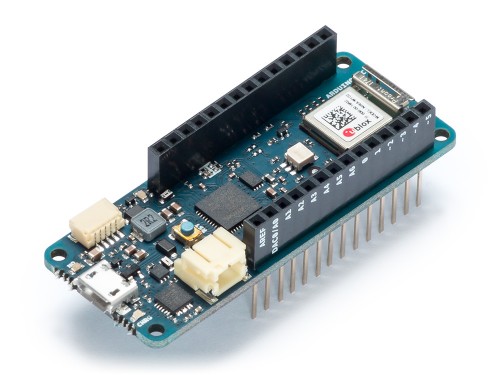

美國原廠官網指定經銷代理 Arduino MKR WIFI 1010 義大利製 原MKR1000升級版

-13%

美國原廠官網指定經銷代理 Arduino MKR WIFI 1010 義大利製 原MKR1000升級版

NT$1,714 NT$1,500 未稅

MKR WIFI 1010是MKR 1000 WIFI的重大改進。它配備了由U-BLOX製造的ESP32模塊。該板旨在通過ESP32模塊的靈活性和低功耗來加速和簡化基於WiFi的物聯網應用的原型設計。

尚有庫存

  • 商品說明

商品說明

美國原廠官網指定經銷代理 ARDUINO MKR WIFI 1010 義大利製 原MKR1000升級版



MKR WIFI 1010 是MKR 1000 WIFI 的升級版。它配備了由U-BLOX製造的 ESP32 模塊。該板旨在通過ESP32模塊的靈活性和低功耗來加速和簡化基於WiFi的物聯網應用的原型設計。

美國官方授權代理經銷 Arduino MKR WIFI 1010 義大利製

由三個主要部分組成:

  • SAMD21 Cortex-M0 + 32位低功耗ARM MCU;
  • U-BLOX NINA-W10系列低功耗2.4GHzIEEE®802.11b / g / n Wi-Fi;
  • ECC508加密認證。

MKR WIFI 1010 包括32位計算能力,通常豐富的I / O接口,以及帶有Cryptochip的低功耗Wi-Fi,用於使用SHA-256加密進行安全通信。此外,它還提供易於使用的Arduino軟件(IDE),用於代碼開發和編程。所有這些功能使該電路板成為緊湊型新興物聯網電池供電項目的首選。

其USB端口可用於為電路板供電(5V)。它有一個Li-Po充電電路,允許Arduino MKR WIFI 1010使用電池供電或外接5伏電源,在外接電源運行時為Li-Po電池充電。從一個源切換到另一個源是自動完成的。

警告:與大多數Arduino板不同,MKR WIFI 1010的運行電壓為3.3V。I / O引腳可承受的最大電壓為3.3V。向任何I / O引腳施加高於3.3V的電壓可能會損壞電路板。雖然輸出到5V數字設備是可能的,但與5V設備的雙向通信需要適當的電平轉換。



  • The MKR WIFI 1010 is a significant improvement on the MKR 1000 WIFI. It’s equipped with an ESP32 module made by U-BLOX. This board aims to speed up and simplify the prototyping of WiFi based IoT applications thanks to the flexibility of the ESP32 module and its low power consumption.

    The board is composed of three main blocks:

    • SAMD21 Cortex-M0+ 32bit Low Power ARM MCU;
    • U-BLOX NINA-W10 Series Low Power 2.4GHz IEEE® 802.11 b/g/n Wi-Fi; and
    • ECC508 Crypto Authentication.

    The MKR WIFI 1010 includes 32-bit computational power, the usual rich set of I/O interfaces, and low power Wi-Fi with a Cryptochip for secure communication using SHA-256 encryption. Plus, it offers ease of use Arduino Software (IDE) for code development and programming. All of these features make this board the preferred choice for the emerging IoT battery-powered projects in a compact form.

    Its USB port can be used to supply power (5V) to the board. It has a Li-Po charging circuit that allows the Arduino MKR WIFI 1010 to run on battery power or an external 5 volt source, charging the Li-Po battery while running on external power. Switching from one source to the other is done automatically.

    Warning: Unlike most Arduino boards, the MKR WIFI 1010 runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Applying voltages higher than 3.3V to any I/O pin could damage the board. While output to 5V digital devices is possible, bidirectional communication with 5V devices needs proper level shifting.







微控制器 SAMD21 Cortex-M0 + 32位低功耗ARM MCU
板電源(USB / VIN) 5V
支持電池(*) Li-Po單節電池,最小3.7V,700mAh
電路工作電壓 3.3V
數字I / O引腳 8
PWM引腳 12(0,1,2,3,4,5,6,7,8,10,A3 – 或18 – ,A4-或19)
UART 1
SPI 1
I2C 1
I2S 1
連接 無線上網
模擬輸入引腳 7(ADC 8/10/12位)
模擬輸出引腳 1(DAC 10位)
外部中斷 8(0,1,4,5,6,7,8,A1-或16-,A2-或17)
每個I / O引腳的直流電流 7毫安
閃存 256 KB
SRAM 32 KB
EEPROM 沒有
時鐘速度 32.768 kHz(RTC),48 MHz
LED_BUILTIN 6
全速USB設備和嵌入式主機 包括
LED_BUILTIN 6
長度 61.5毫米
寬度 25毫米
重量 32克
