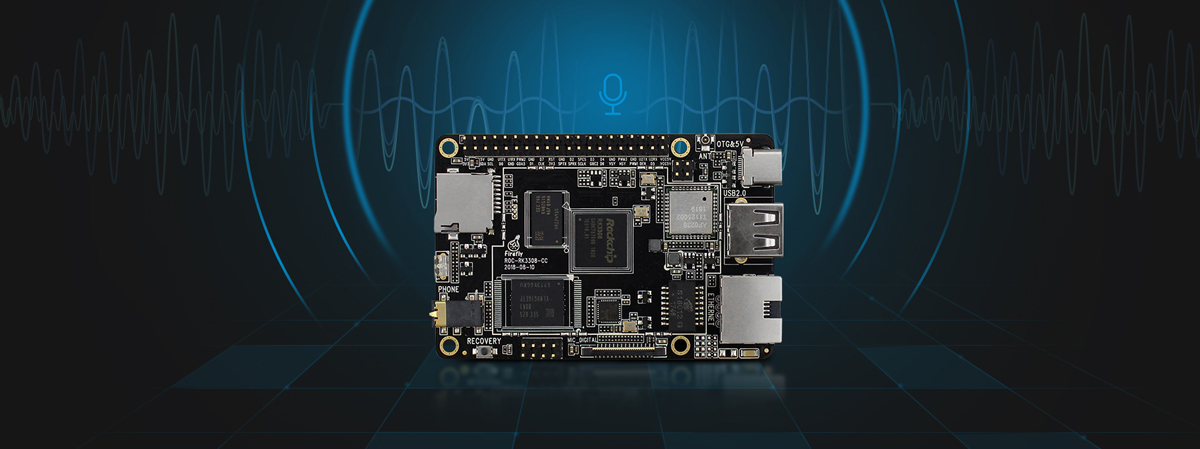

ROC-RK3308-CC 四核64位 AIOT 開發板

它是一款微型緊湊型主板,配備經濟高效的RK3308核心工藝和高性能編解碼器。它可以支持各種人工智能和物聯網操作系統,並可配置六個麥克風陣列板和POE擴展板。ROC-RK3308-CC是一種集成了多種功能的AI + IOT開源主板。

貨號: 102110237 分類: , 標籤: , ,
  • 商品說明

商品說明

ROC-RK3308-CC 四核64位 AIOT 主板

它是一款微型緊湊型主板,配備經濟高效的RK3308核心工藝和高性能編解碼器。它可以支持各種人工智能和物聯網操作系統,並可配置六個麥克風陣列板和POE擴展板。ROC-RK3308-CC是一種集成了多種功能的AI + IOT開源主板。

It is a miniature and compact main board which is equipped with a cost-effective RK3308 Core Processorand a high-performance CODEC. It can support various artificial intelligence and IOT operating systems,and can be configured with six microphone array board and POE expansion board. ROC-RK3308-CC is a kind of AI+IOT open source main board incorporating many kinds of functions.

ROC-RK3308-CC 四核64位 AIOT 開發板

經濟高效的四核處理器

它配備了經濟高效的RK3308 64位四核ARM Cortex-A35處理器,頻率高達1.3GHz,並配有高性能CODEC和VAD,可用於智能音頻解決方案,自動語音識別等的開發。

It’s equipped with cost-effective RK3308 64-Bit Quad-Core ARM Cortex-A35 processor, frequency up to1.3GHz, and with high-performance CODEC and VAD, which can be used for development of the smart audiosolution, automatic speech recognition, etc.

RK3308-02

支持操作系統和服務

ROC-RK3308-CC現在支持Buildroot系統,即將支持ROS,AliOS Things和其他操作系統。語音服務功能支持三種語音服務:百度DuerOS,AISpeech,iFLYTEK,並且稍後將支持亞馬遜Alexa。豐富的操作系統/服務支持,輕鬆實現AIOT開發和產品應用。

ROC-RK3308-CCsupports the Buildroot system now and is about to support ROS, AliOS Things and other operatingsystems. The voice service function supports three-voice suits: Baidu DuerOS, AISpeech, iFLYTEK, andwill support Amazon Alexa later. Rich operating system/service support for AIOT development and productapplication easily.

RK3308-03

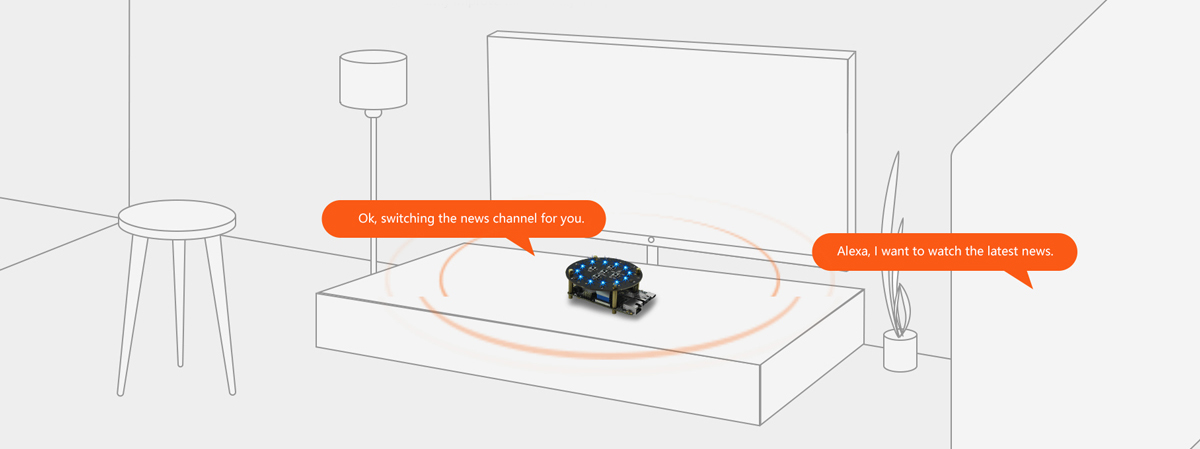

配置遠場麥克風陣列板

它可以配置遠場麥克風陣列板,包括6個數字麥克風,12個三色LED,5個鍵。它支持關鍵詞喚醒,迴聲消除和降噪,VAD(語音激活檢測)和聲源定位等,可以顯著提高自動語音識別的準確性和精確度。

It can be configured with a far-field microphone array board, including 6 digital microphones, 12three-color LEDs, 5keys. It supports keyword wakeup, echo cancellation and noise reduction, VAD (Voice ActivationDetection) and soundsource location etc., which can significantly improve the accuracy and precision of automatic speechrecognition.

RK3308-04

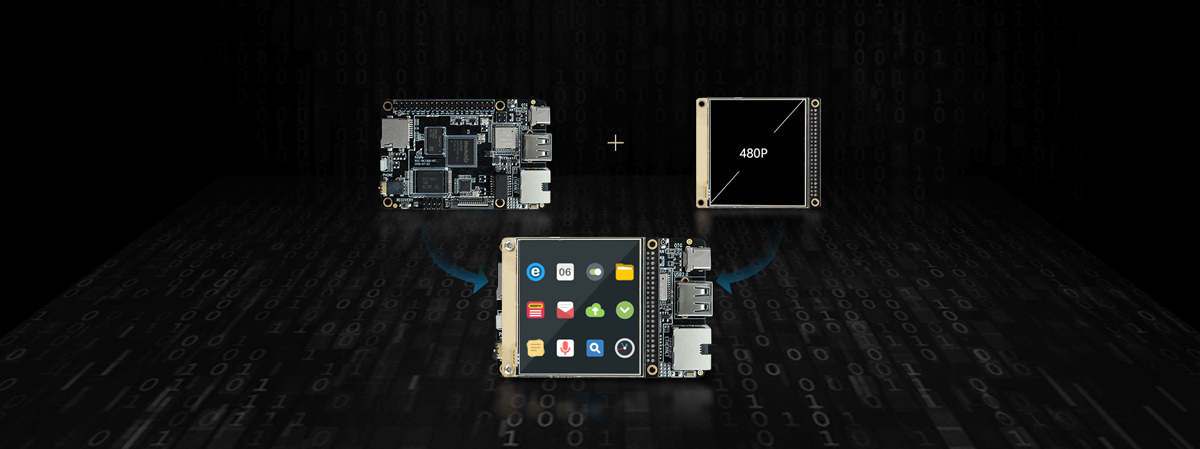

支持MCU顯示屏

主板可以支持MCU顯示屏,最大分辨率為480P,可以使顯示更簡單,更方便。

Themain board can support MCU Display Screen with the maximum resolution of 480P, which can make displaysimpler andmore convenient.

RK3308-05

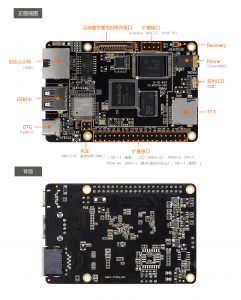

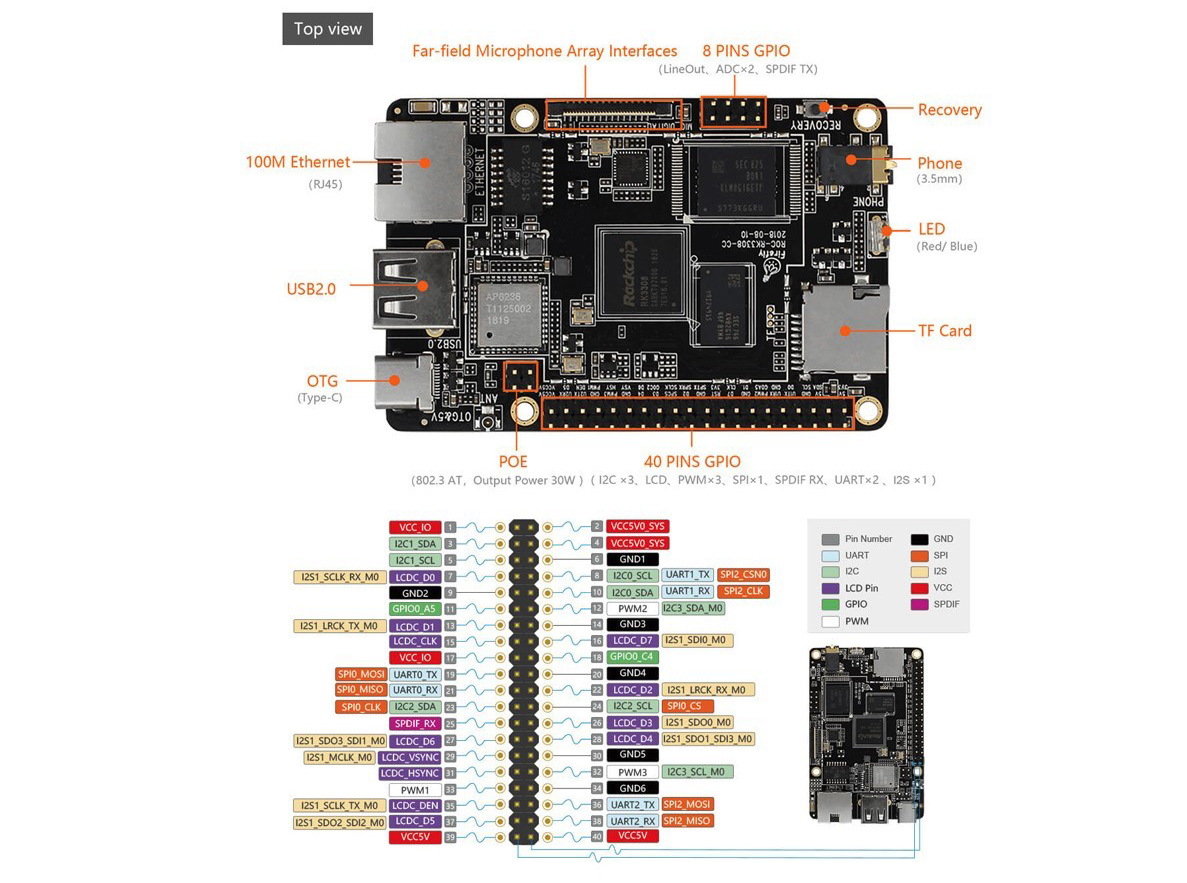

豐富的擴展接口

配備40Pin擴展接口,包括I2C x 3,LCD,PWM x 3,SPI x 1,I2S x 1,SPDIF RX,UART x 2(oneUART用作調試)等接口,並可支持POE擴展。

Equippedwith 40Pin expansion interfaces, including I2C x 3, LCD, PWM x 3, SPI x 1, I2S x 1, SPDIF RX, UART x 2(oneUART is used as Debug) and other interfaces, and can support POE expansion.

RK3308-06



打開SDK

打開SDK,教程,技術資料和開發工具,使開發更容易,更方便。

Open SDK, tutorials,technical materials and development tools to make development easier and more convenient.

RK3308-07

參數

SOC

RK3308(28nm工藝)

中央處理器

四核Cortex-A35,主頻高達1.3GHz

內存

支持128MB-512MB DDR3

存儲

NandFlash:支持128MB,256MB

eMMC:支持4GB-128GB

SPI Flash:16MB~512 MB

支持MicroSD(TF)卡插槽擴展

硬件功能

以太網絡

100M乙太網(RJ45接口)

WiFi /藍牙

支持802.11 b / g / n協議,支持藍牙4.2

顯示

支持8位MCU顯示屏,分辨率高達480P

音頻

內置音頻編解碼器,包括ADC×8和DAC×2

USB

USB 2.0×1,OTG×1(Type-C)

調試

調試UART×1,用於開發和調試

恢復×1

接口

POE(IEEE802.3AT標準)

I2C×3(iomux),UART×2(一個用於調試),SPI×1,PWM×3

I2S×1(iomux),LCD(8位MCU)

ADC×2,LINEOUT,SPDIF IN / OUT

麥克風陣列

模塊模式:循環

數組元素數:6

模塊尺寸:直徑86mm

喚醒距離:> 20米

識別距離:> 5米

信噪比:SNR> 63dB

工作溫度:-20°C – 80°C

聲源位置:水平360°

定位精度:±12°

支持關鍵字喚醒,聲源定位,噪聲抑制和VAD

系統軟件

系統/服務

支持Buildroot,

支持會話人工智能操作系統:DuerOS,

亞馬遜AVS(Alexa語音服務),

IOT的阿里嵌入式操作系統:AliOS Things,

開源機器人操作系統:ROS(機器人操作系統)

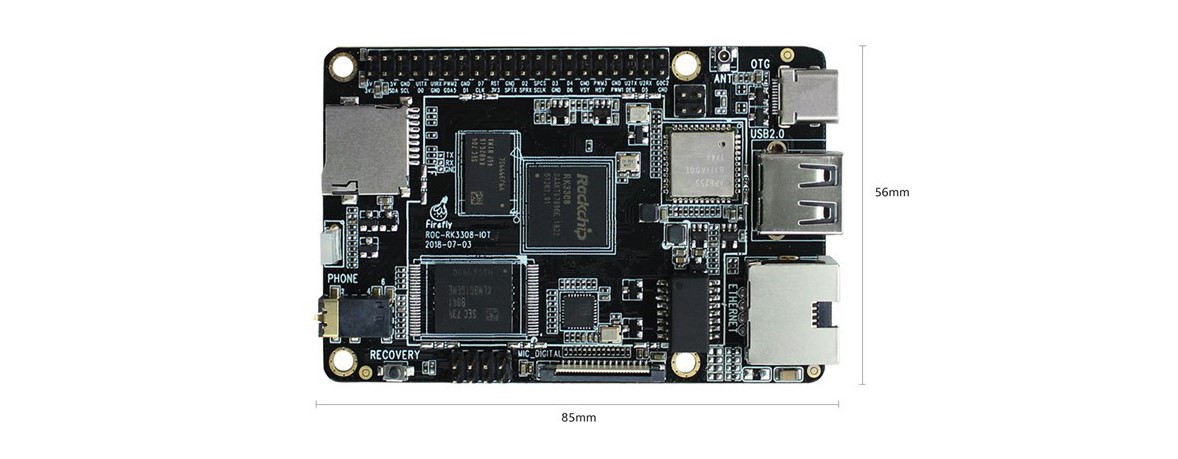

外形尺寸

尺寸

85毫米×56毫米
