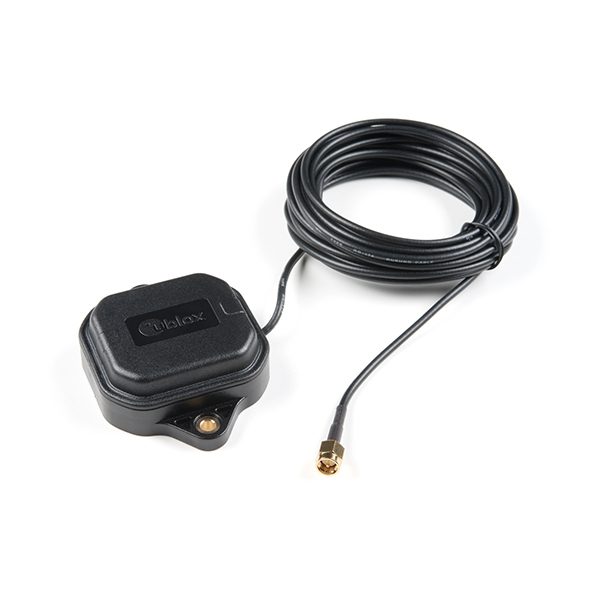

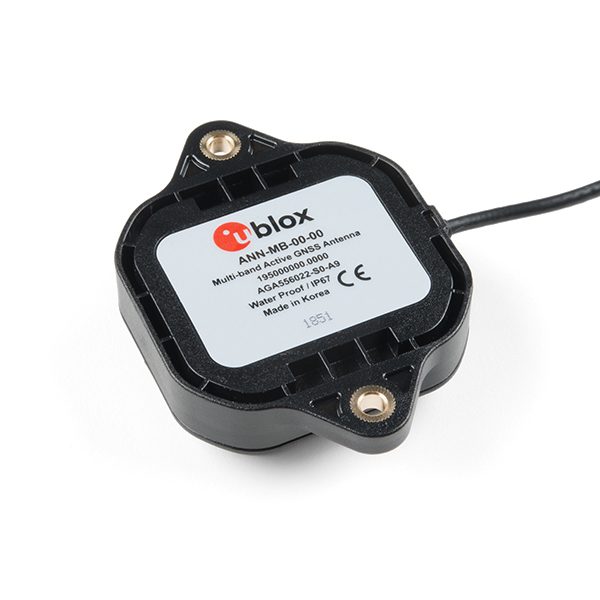

GNSS Multi-Band Magnetic Mount Antenna 多頻 帶磁性安裝天線- 5m (SMA)

ANN-MB-00 GNSS多頻帶天線與其他G​​NSS / GPS天線非常獨特，因為它設計用於接收經典的L1 GPS頻段和新推出的L2 GPS頻段。此外，u-blox的ANN-MB-00非常精良，帶有帶安裝孔的磁性底座，可為最惡劣的環境提供額外的固定。

專為最新的u-blox F9平台 – 包括ZED-F9P模塊 – 設計，提供快速，簡便，可靠的多頻段天線解決方案，但可與任何可受益於L1 /的GPS / GNSS接收器配合使用L2雙接收。

該天線支持GPS，GLONASS，Galileo和BeiDou，包括高性能多頻帶RHCP雙饋貼片天線元件，內置高增益LNA和SAW預濾波，以及5米SMA電纜。



特徵

• 頻率：
  • L1頻段：1559-1606MHz
  • L2 / L5頻段：1197-1249MHz
• 峰值增益（直徑超過15厘米的地平面）：
  • L1頻段：3.5dBic
  • L2 / L5頻段：0-2.0dBic
• VSWR：最大 2
• 帶寬：分鐘 200MHz的
• 阻抗：50歐姆
• 極化RHCP
• 支持GPS，GLONASS，Galileo和BeiDou

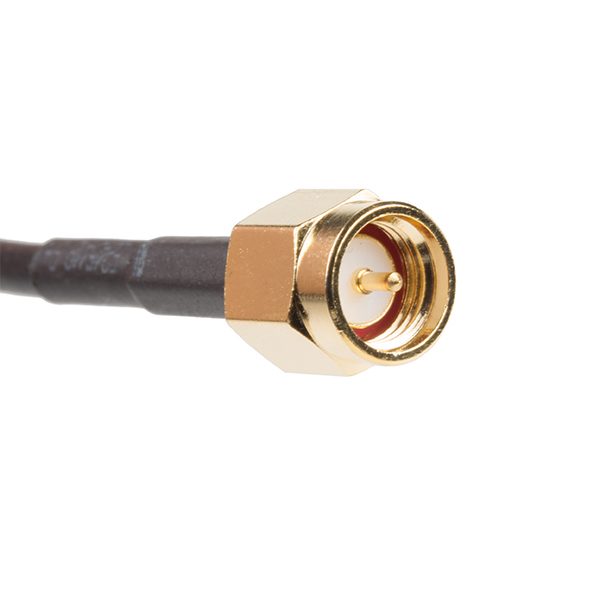

• 5米同軸電纜，帶SMA連接器
• 磁性底座，固定安裝選項（螺釘安裝，2 x M4螺釘）

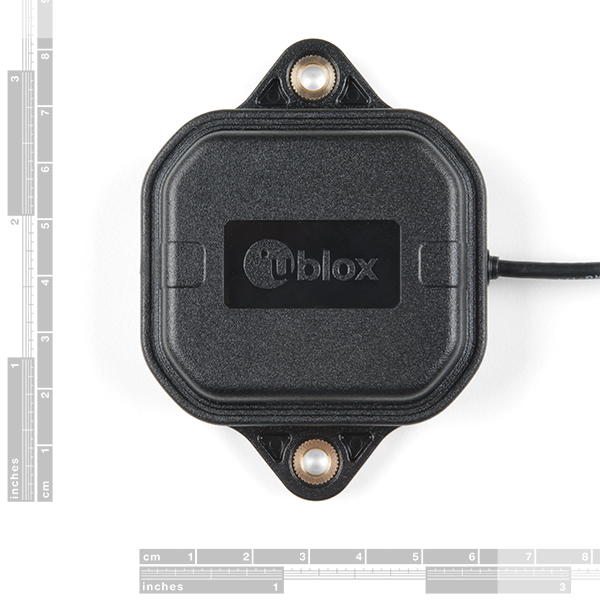

• 尺寸：60.0mm x 82.0mm x 22.5mm
• 重量：175克（含電纜）

Documents

• 數據表（ANN-MB-00）
• 產品摘要



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



GNSS Multi-Band Magnetic Mount Antenna – 5m (SMA)

The ANN-MB-00 GNSS multiband antenna is extremely unique from other GNSS/GPS antennas in that it is designed to receive both the classic L1 GPS band and the newly launched L2 GPS band. Additionally, the ANN-MB-00 from u-blox is extremely well built with both a magnetic base with mounting holes for additional anchoring for the harshest environments.

Designed for the latest u-blox F9 platform–including the ZED-F9P module–it provides a fast, easy, and reliable multi-band antenna solution but can be used with any GPS/GNSS receiver that can benefit from the L1/L2 dual reception.

This antenna supports GPS, GLONASS, Galileo, and BeiDou and includes a high-performance multi-band RHCP dual-feed patch antenna element, a built-in high-gain LNA with SAW pre-filtering, and a 5m SMA cable.

Features

• Frequency:
  • L1 Band: 1559-1606MHz
  • L2/L5 Band: 1197-1249MHz
• Peak gain (over 15cm diameter ground plane):
  • L1 Band: 3.5dBic
  • L2/L5 Band: 0-2.0dBic
• VSWR: max. 2
• Bandwidth: min. 200MHz
• Impedance: 50 Ohm
• Polarization RHCP
• Supports GPS, GLONASS, Galileo, and BeiDou
• 5m coaxial cable with SMA connector
• Magnetic base, fixed installation option (screw mount, 2 x M4 screws)
• Dimensions: 60.0mm x 82.0mm x 22.5mm
• Weight: 175g (including cable)

Documents

• Datasheet (ANN-MB-00)
• Product Summary
