原廠英國製 Raspberry Pi 3 Model A+ 樹莓派 Pi3A+ Plus 開發板

商品說明

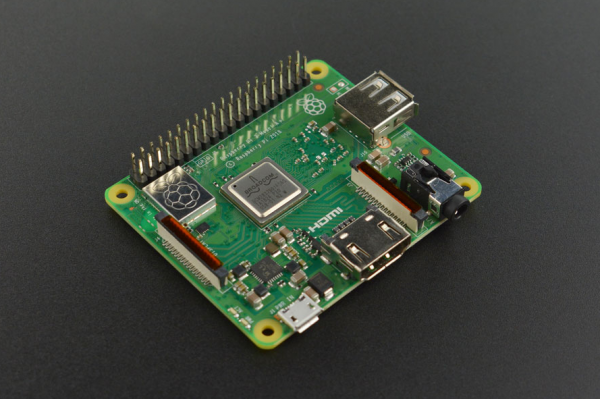

Raspberry Pi 3 Model A+ 樹莓派 Pi 3 A+ Plus

Raspberry Pi 3 A+ 開發板 保固期：30天

Raspberry Pi 3 Model A+ 將Raspberry Pi 3系列擴展為A + 板格式。

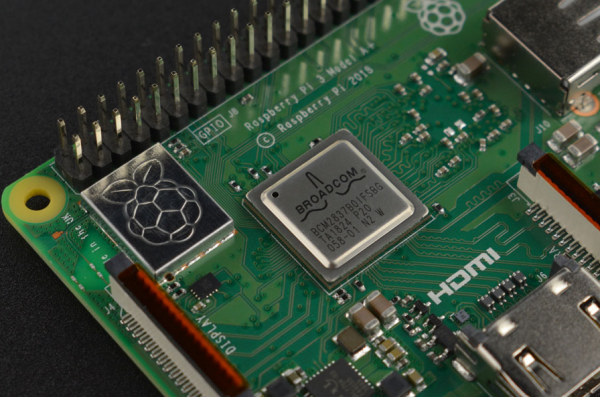

標準A+尺寸，這款Raspberry Pi 3 A+繼承了其Raspberry Pi 3 B+的大部分功能。它集成了1.4 GHz 64位四核處理器，具有雙頻2.4GHz和5GHz無線局域網，藍牙4.2和改進的熱管理功能。

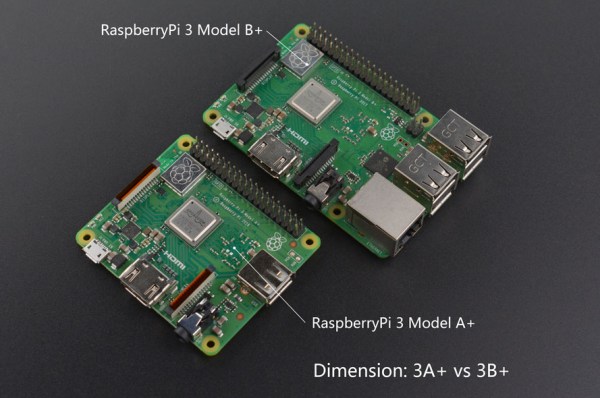

與Pi 3B+相比，新的Pi 3A+具有更小的RAM並且降低了USB集線器和以太網控制器，這使得它能夠提供更低的價格以及保持小體積。同時，它與Pi 1A+兼容，對於Pi 1A +粉絲或者想要更小的Raspberry Pi主板的人來說，這款Pi 3 A+將是您的最佳選擇！



Raspberry Pi 3 Model A+, the newest member of Raspberry Pi range, was released by Raspberry Pi Foundation last year. Back in 2014, the original Raspberry Pi Model B+ came out, closely followed by a cut-down Model A+

Now, the Raspberry Pi 3 Model A+ extends the Raspberry Pi 3 range into the A+ board format.

With standard A+ size, this Raspberry Pi 3 model A+ inherits most features of its big brother, Raspberry Pi 3 B+. It integrates a 1.4 GHz 64-bit quad-core processor and features dual-band 2.4GHz and 5GHz wireless LAN, Bluetooth 4.2 and improved thermal management.
Compared with Pi 3B+, the new Pi 3A+ has smaller RAM and drops USB hub and Ethernet controller, which makes it able to provide a lower price as well as keep a small body. Meanwhile, it is compatible with Pi 1A+, for Pi 1A+ fans or someone who wants smaller Raspberry Pi main-board, this Pi 3 A+ would be the best choice for you!



樹莓派 3 A+ vs 樹莓派 1 A+

	Raspberry Pi 3A +	Raspberry Pi A +
處理器	Broadcom BCM2837B0，Cortex-A53,64位Soc @ 1.4 GHz	700MHz Broadcom BCM2835
內存	512MB LPDDR2 SDRAM
WiFi和藍牙	2.4GHz和5GHz IEE 802.11.b / g / n / ac無線局域網，藍牙4.2 / BLE	沒有
訪問	擴展的40引腳GPIO接頭
視頻和聲音	HDMI / DSI / CSI / RAC
輸入功率	Micro USB（5V / 2.5A輸入）
SD卡插槽	Micro SD卡插槽（TF卡）
USB	1個USB 2.0端口

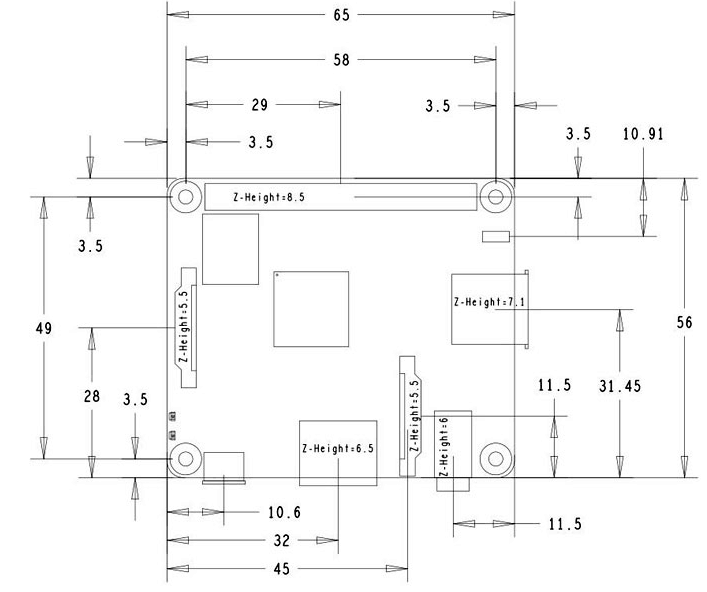

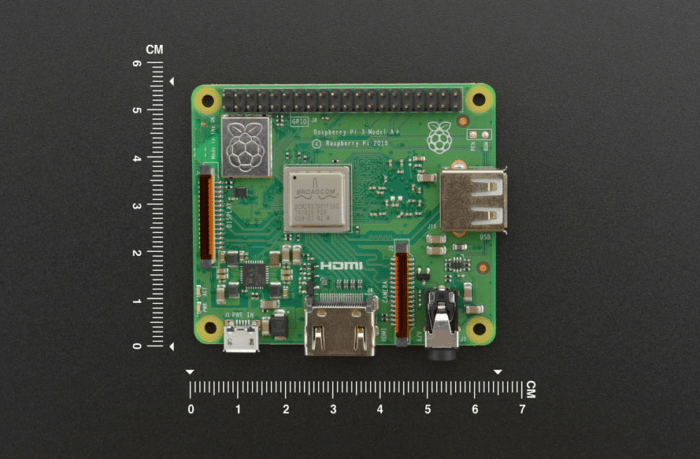

尺寸圖

規格

• 1.4GHz 64位四核ARM Cortex-A53 CPU
• 雙頻2.4GHz和5GHz 802.11ac無線局域網和藍牙4.2 / BLE
• 存儲：Micro-SD卡
• GPIO：40引腳GPIO雙排接頭
• 512MB LPDDR2 SDRAM
• 改進的USB大容量存儲啟動
• 改善熱管理
• 5V / 2.5A電源輸入
• CSI攝像頭端口，用於連接Raspberry Pi攝像頭模塊
• 用於連接Raspberry Pi Touch Display的 DSI顯示端口

DOCUMENTS

• Raspberry Pi 3A +機械製圖
• Raspberry Pi 3A +原理圖

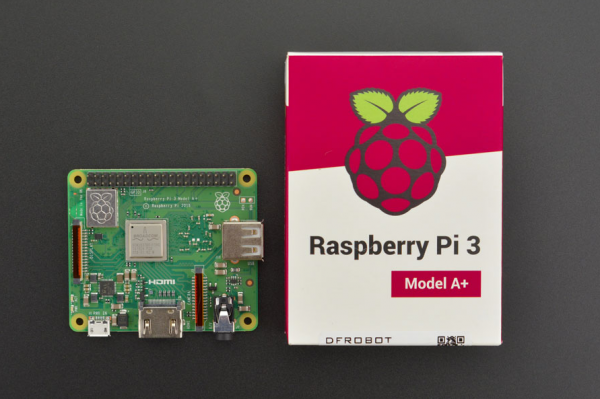

出貨清單

• Raspberry Pi 3型號A + x1
