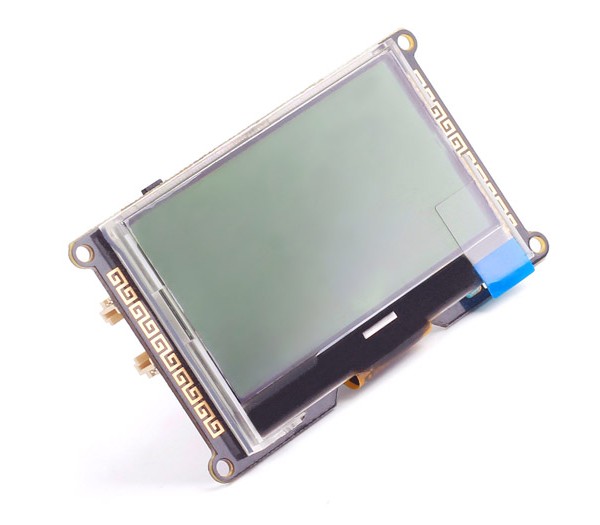

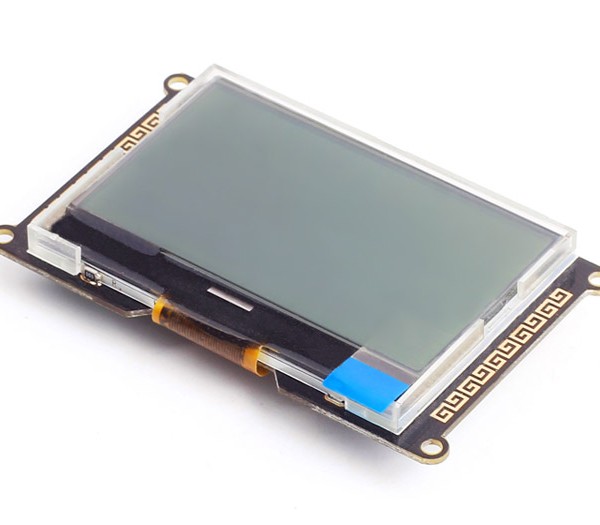

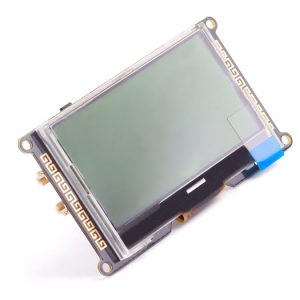

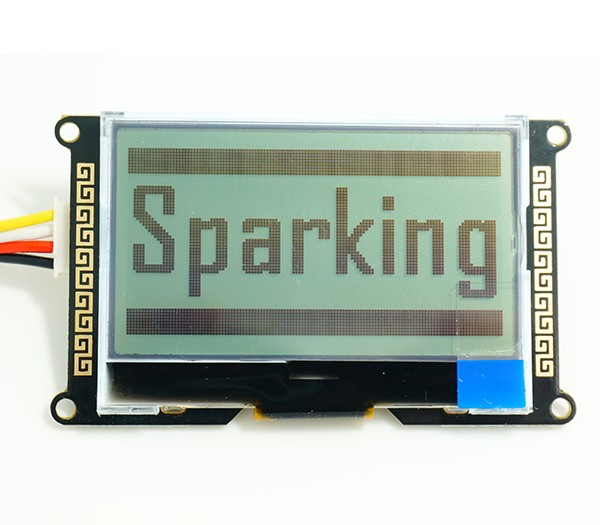

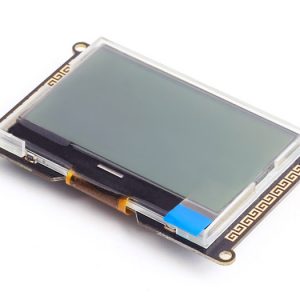

I2C_LCD (With universal Grove cable) 圖形文字顯示模組 seeed原廠

-13%

I2C_LCD (With universal Grove cable) 圖形文字顯示模組 seeed原廠

NT$800 NT$700 未稅

I2C LCD是一個易於使用的顯示模塊,它可以使顯示器更加容易。使用它可以減少顯示開發的難度,從而使製造商可以專注於工作的核心。

尚有庫存

貨號: 114990502(A8-7) 分類: , 標籤: , , ,
  • 商品說明

商品說明

Grove 介面 I2C_LCD 圖形 / 文字顯示模組

I2C_LCD 是一個易於使用的顯示模塊,它可以使顯示器更加容易。使用它可以減少顯示開發的難度,從而使製造商可以專注於工作的核心。

我們開發的Arduino的庫I2C_LCD,用戶只需要對代碼的幾行可以實現複雜的圖形和文字顯示功能。

I2C_LCD (With universal Grove cable) 圖形文字顯示模組

更重要的是,我們還開發了專用的圖像數據轉換軟件(位圖轉換器),目前可支持Windows,Linux和的Mac OS的PC平台。通過位圖轉換軟件,你可以把I2C_LCD顯示自己喜歡的圖片,而無需複雜的編程。

Grove 介面 I2C_LCD 圖形 / 文字顯示模組

特徵

  1. 使用兩 2 Arduino的引腳都被佔用(使用I2C接口)。
  2. Arduino的庫支持,用一行代碼來完成顯示。
  3. 可顯示168個ASCII字符。

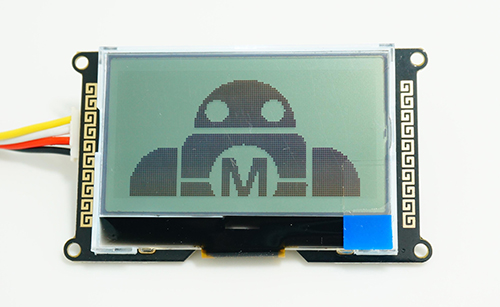

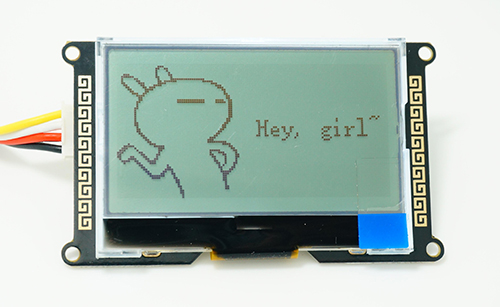

  4. 可以顯示128X64雙色圖像。
  5. 提供專用圖像數據轉換軟件(位圖轉換器)。
  6. 可調背光亮度和對比度。
  7. 支持修改設備的地址,可以支持 127 個顯示模組並行工作。
  8. 方便 Grove 接口。
  9. 中國風格獨特的外觀。

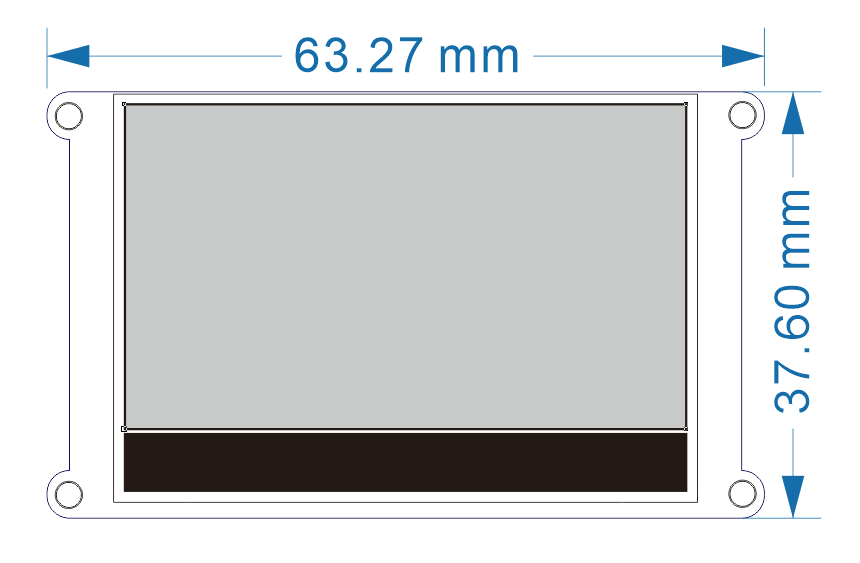

尺寸

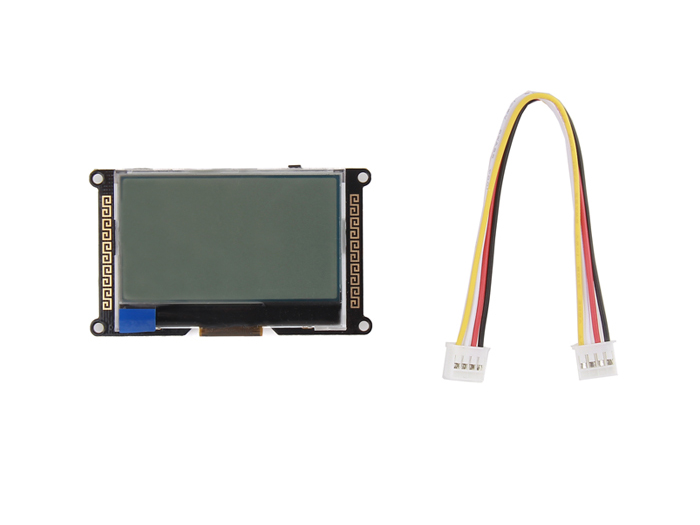

出貨清單

  • I2C_LCD (With universal Grove cable) x1
  • Grove連接線 x1

Documents

  1. I2C_LCD庫(http://www.seeedstudio.com/wiki/images/e/ef/I2C_LCD.zip
  2. I2C_LCD用戶手冊EN(http://www.seeedstudio.com/wiki/images/7/74/I2C_LCD-UserManual_EN.zip
  3. I2C_LCD用戶手冊CN(http://www.seeedstudio.com/wiki/images/b/b8/I2C_LCD-UserManual_CN.zip
  4. 位圖轉換器(ForWindows)(http://www.seeedstudio.com/wiki/images/6/64/BitmapConverter%28ForWinodws%29.zip
  5. 位圖轉換器(ForMacOS)(http://www.seeedstudio.com/wiki/images/0/0a/BitmapConverter%28ForMacOS%29.zip
  6. 位圖轉換器(ForLinux)(http://www.seeedstudio.com/wiki/images/8/80/BitmapConverter%28ForLinux%29.zip
  7. I2C_LCD源文件(http://www.seeedstudio.com/wiki/images/2/24/I2C_LCD_SourceFile.rar



=========================================================



I2C_LCD (With universal Grove cable)

I2C_LCD is an easy-to-use display module, It can make display easier. Using it can reduce the difficulty of make, so that makers can focus on the core of the work.

We developed the Arduino library for I2C_LCD, user just need a few lines of the code can achieve complex graphics and text display features.

More than that, we also develop the dedicated picture data convert software (bitmap converter),now is available to support PC platform of windows, Linux, Mac OS. Through the bitmap convert software you can put your favorite picture displayed on I2C_LCD, without the need for complex programming.

Features

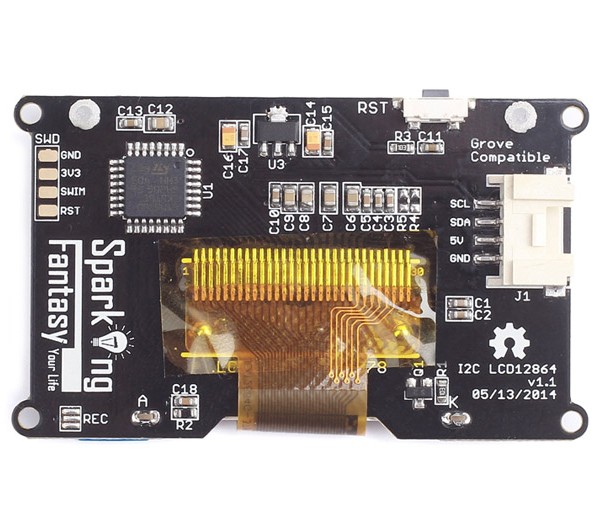

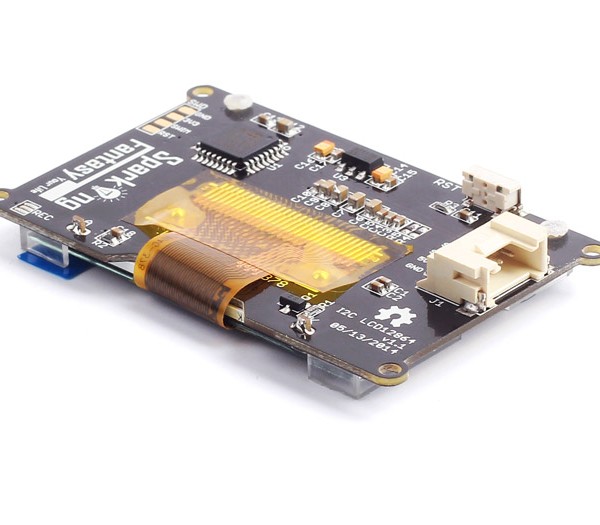

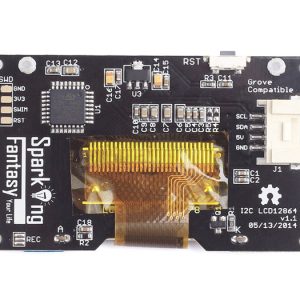

  • Only 2 Arduino pins are occupied (Use I2C interface).
  • Arduino library supported, use a line of code to complete the display.
  • 168 ASCII characters can be displayed.

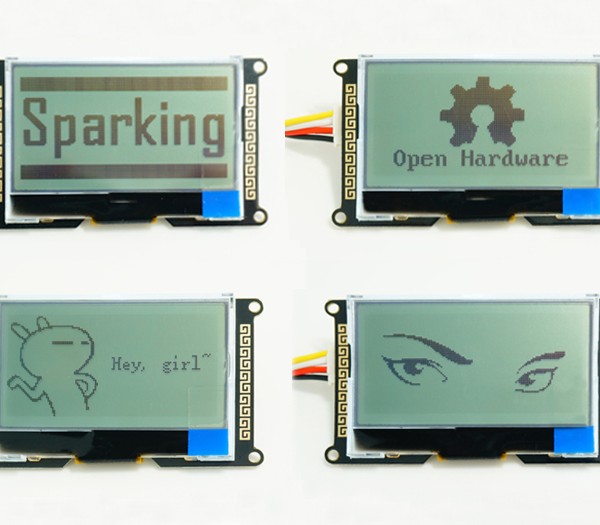

  • 128X64 dual color picture can be displayed.
  • Provide dedicated picture data convert software (Bitmap Converter) .
  • Adjustable backlight brightness and contrast.
  • Support modify device address, can support 127 modules work in parallel.
  • Convenient Grove interface.
  • China style unique appearance.

Dimension

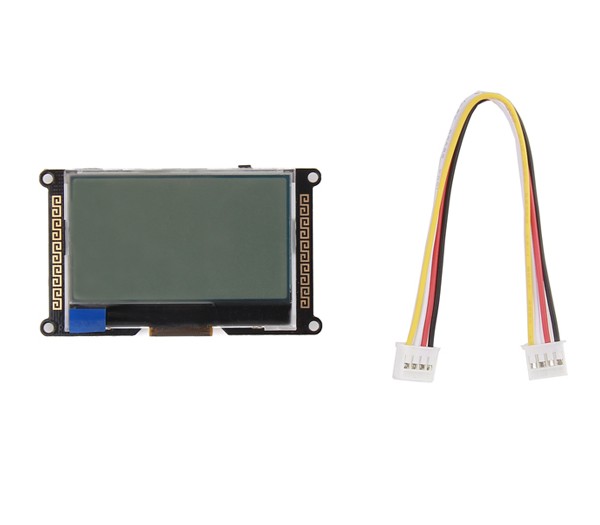

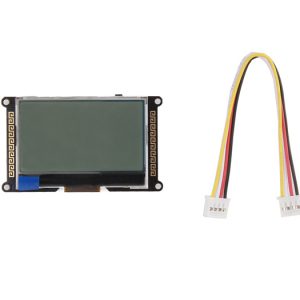

Part List

  • 1x I2C_LCD
  • 1x Grove – Universal 4 Pin Buckled 12cm Cable
