Grove – Gas Sensor(MQ3) 酒精濃度 氣體 感測器模組 seeed原廠

NT$362 NT$240 未稅

它可以檢測酒精,汽油,甲烷,己烷,液化石油氣,CO 其感測速度與回應的非常靈敏快速。也靈敏度可以由電位進行調整。

尚有庫存

  • 商品說明

商品說明

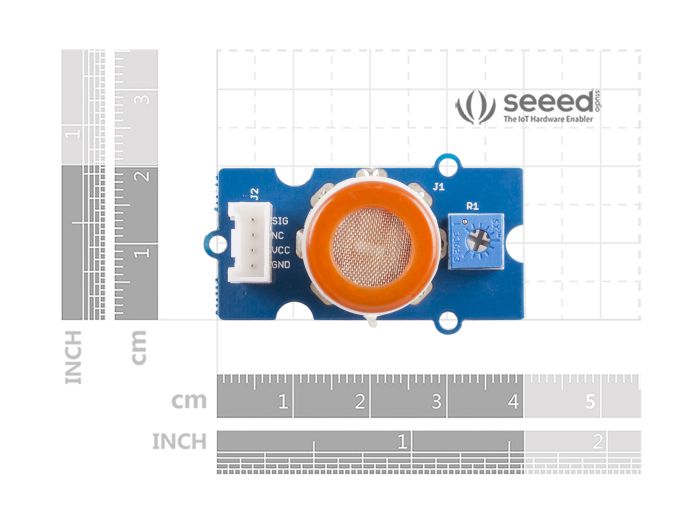

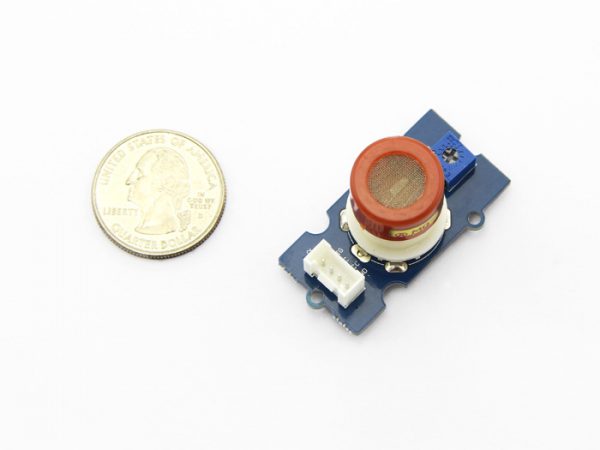

Grove – Gas Sensor(MQ3) 酒精濃度 氣體 感測器模組

Grove MQ3 酒精傳感器 在用於氣體洩漏檢測(家庭和工業)是十分有用的。它可以檢測酒精,汽油,甲烷,己烷,液化石油氣,CO 其感測速度與回應的非常靈敏快速。也靈敏度可以由電位進行調整。

特徵

  • 高靈敏度酒精感測
  • 穩定,壽命長
  • 感測回應速度快,靈敏度高

規格

项目 參數 最小值 典型值 最大值 單位
VCC 工作電壓 4.9 5 5.1 V
PH 熱能耗 0.5 750 mW
RL 負載電阻 可調
RH 發熱器電阻 33 Ω
Rs 敏電阻 1 8
Scope 檢測濃度 0.05 10 mg/L

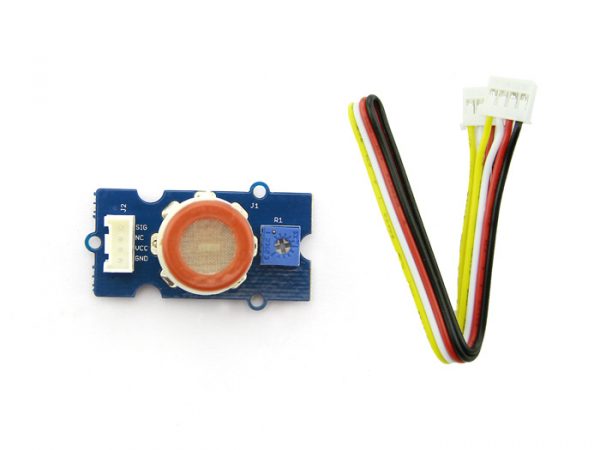

出貨清單

  • Grove – Gas Sensor(MQ3) x1
  • Grove連接線 x1



Documents





=========================================================



Grove – Gas Sensor(MQ3)

The Grove – Gas Sensor module is useful for gas leakage detecting(in home and industry). It can detect LPG, i-butane, methane, alcohol, Hydrogen, smoke and so on. Measurements can be taken as soon as possible based on its fast response time. Also, the sensitivity can be adjusted by the potentiometer.

Features

  • High sensitivity to Combustible gas in a wide range
  • Stable performance, long life, low cost
  • Fast response
  • Wide detection range
  • Simple drive circuit

Specification

Item Parameter Min Typical Max Unit
VCC Working Voltage 4.9 5 5.1 V
PH Heating consumption 0.5 750 mW
RL Load resistance adjustable
RH Heater resistance 33 Ω
Rs Sensing Resistance 1 8
Scope Detecting Concentration 0.05 10 mg/L
