Grove – Flame Sensor 火焰感測器 seeed原廠

NT$371 NT$200 未稅

尚有庫存

  • 商品說明

商品說明

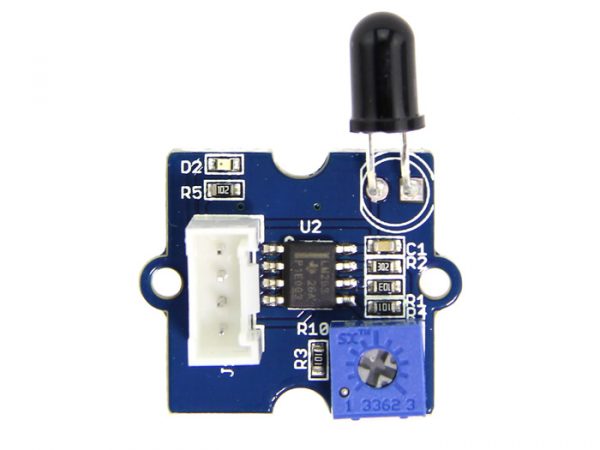

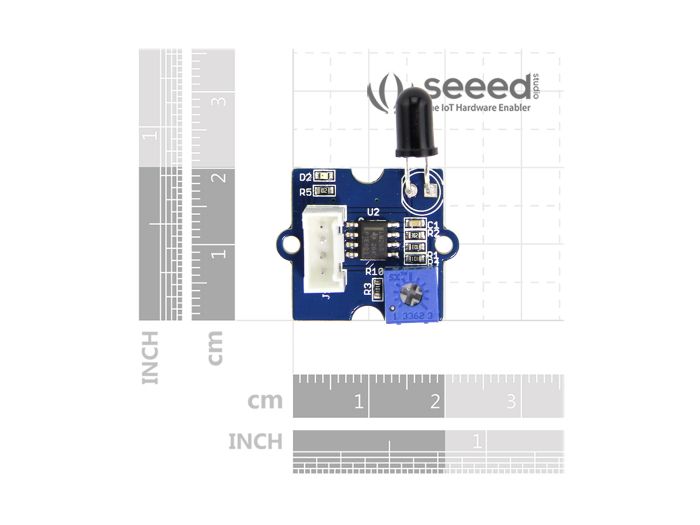

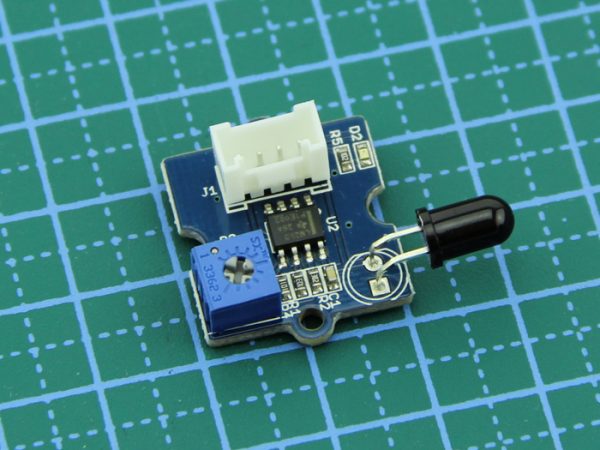

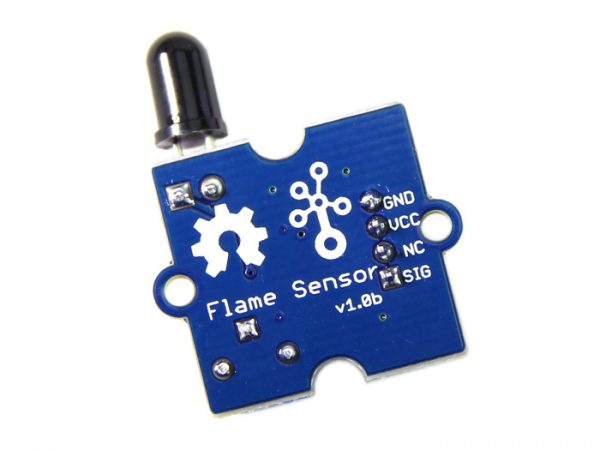

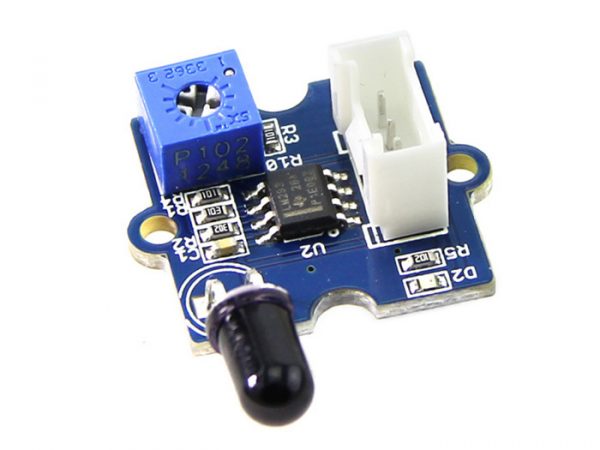

Grove – Flame Sensor 火焰 感測器

Grove – 火焰 感測器 可以用來檢測 火源 或在 760nm –  1100nm 波長範圍內的其他光源 。它是基於 YG1006 傳感器 是一個高速和高靈敏度的NPN型矽光電晶體管。由於其黑色環氧樹脂,傳感器是對紅外輻射敏感。在消防機器人組成中,該傳感器起著非常重要的作用,它可以作為一個機器人眼睛發現火源。

Grove - Flame Sensor

特徵

  • Grove 接口
  • 高光敏性
  • 快速回應時間
  • 易於使用
  • 靈敏度可調節



規格

項目 最小 標準 最大 單位
工作電壓 4.75 5.0 5.30 VDC
工作電流 / 20 / mA
檢測到光譜帶寬的範圍 760 940 1100 nm
檢測範圍 0 ~ 1 m
響應時間 15 μS
工作溫度 -25 ~ 85



出貨清單

  • Grove – Flame Sensor x1
  • Grove連接線 x1



Documents



查看更多 物聯網 相關商品





=========================================================



Grove – Flame Sensor

The Grove – Flame Sensor can be used to detect fire source or other light sources of the wavelength in the range of 760nm – 1100 nm. It is based on the YG1006 sensor which is a high speed and high sensitive NPN silicon phototransistor. Due to its black epoxy, the sensor is sensitive to infrared radiation. In fire fighting robot game, The sensor plays a very important role, it can be used as a robot eyes to find the fire source.
Features
  • Grove Interface
  • High Photo Sensitivity
  • Fast Response Time
  • Easy to use
  • Sensitivity can adjustable



Specifications

Item Min Typical Max Unit
Voltage 4.75 5.0 5.30 VDC
Current / 20 / mA
Range of Spectral Bandwidth 760 940 1100 nm
Detection range 0 ~ 1 m
Response Time 15 μS
Operating Temperature -25 ~ 85
