Humidity and Temperature Sensor Breakout – HIH6130 溫濕度感測器模組 SparkFun原廠

商品說明

Humidity and Temperature Sensor Breakout – HIH6130 溫濕度感測器模組

HIH6130是一款數字輸出型相對濕度（RH）和溫度傳感器，採用相同封裝。這樣可以對RH測量進行溫度補償，並提供第二個獨立的溫度傳感器輸出。

這款分線板為這款SOIC封裝的每個引腳提供標準的0.1“間隔接頭，使您可以更輕鬆地對下一個濕度感應應用進行原型設計。使用像”Wire.h“可以輕鬆實現與HIH6130的通信。

規格參數

• 工作電壓：2.3-5.5v
• 補償濕度範圍：10-90％RH
• 補償溫度 範圍5-50°C
• 真正的溫度補償數字I2C輸出
• 寬工作溫度範圍允許在許多應用中使用

Documents

• 概要
• 鷹檔案
• 數據表（HIH6130）
• 濕度計修復注意事項
• Arduino代碼
• I2C指令
• 進入和使用命令模式
• GitHub（設計文件）

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

Humidity and Temperature Sensor Breakout – HIH6130

It’s not the heat but the humidity that gets you, at least that’s what they say. Really, both are important, what you need is a sensor that combines humidity and temperature readings. How about this Honeywell HumidIcon Digital Humidity/Temperature Sensor?

The HIH6130 is a digital output-type relative humidity (RH) and temperature sensor combined in the same package. This allows the RH measurement to be temperature compensated and provides a second, standalone temperature sensor output.

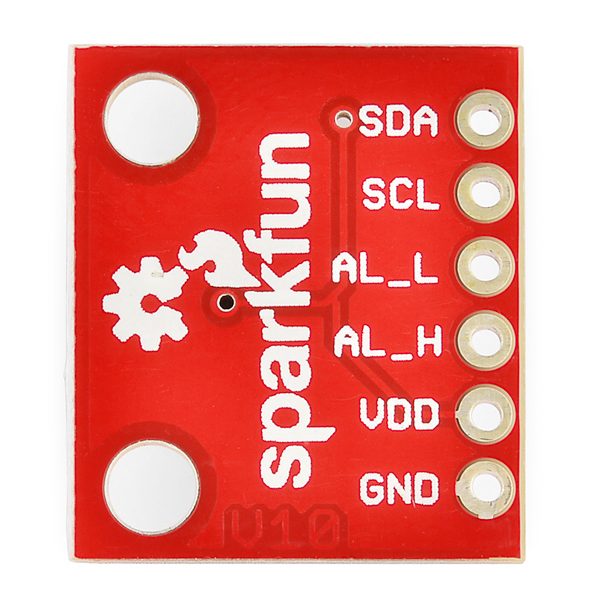

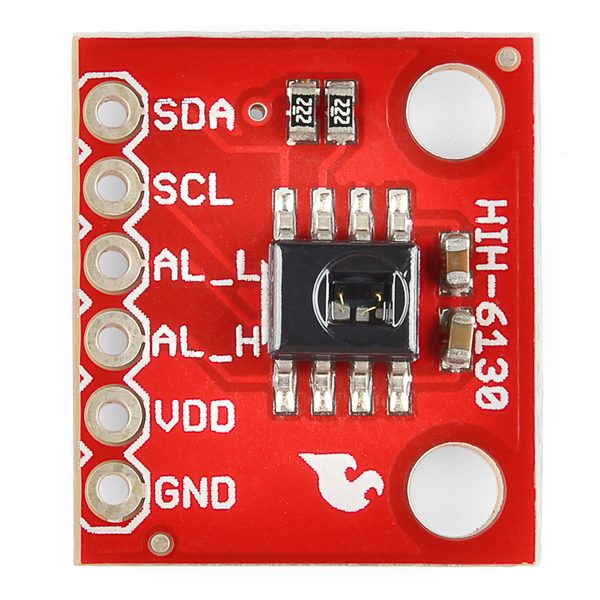

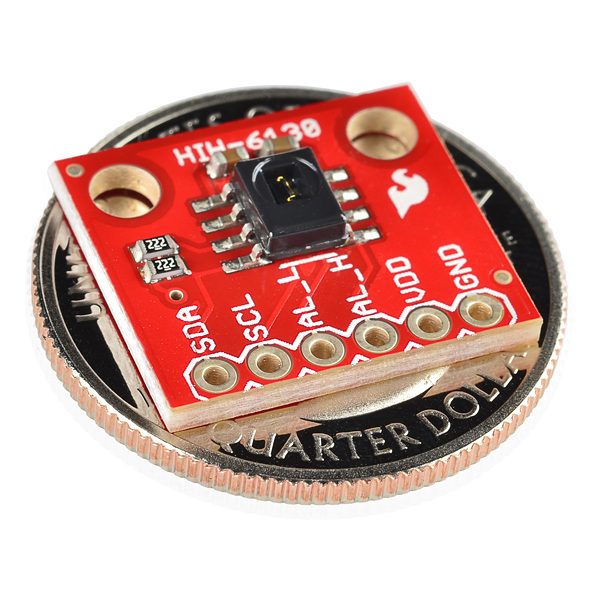

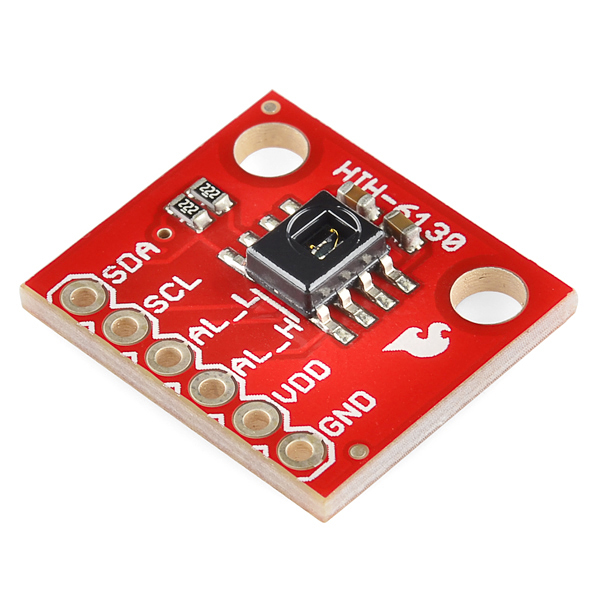

This breakout board gives you standard 0.1″ spaced headers for each of the pins on this SOIC package, making it a lot easier to prototype your next humidity-sensing application. Communication with the HIH6130 is easily achieved over I2C using libraries like “Wire.h”

Features

• Operating Voltage: 2.3-5.5v
• Compensated humidity range: 10-90% RH
• Compensated temp. range 5-50°C
• True temperature-compensated digital I2C output
• Wide operating temperature range allows for use in many applications
