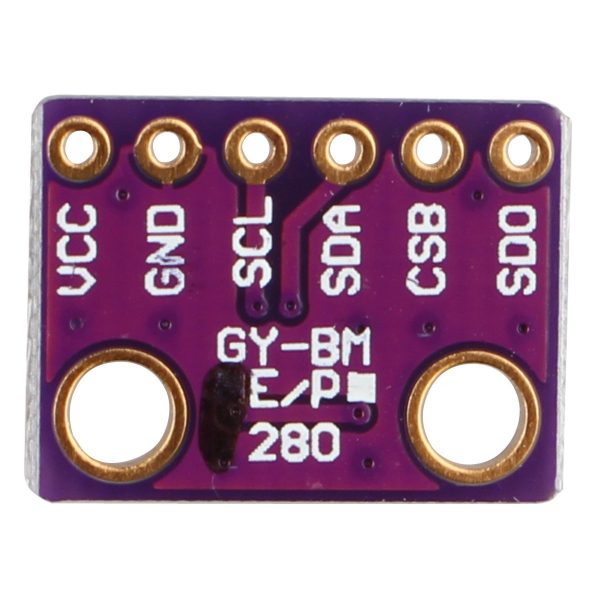

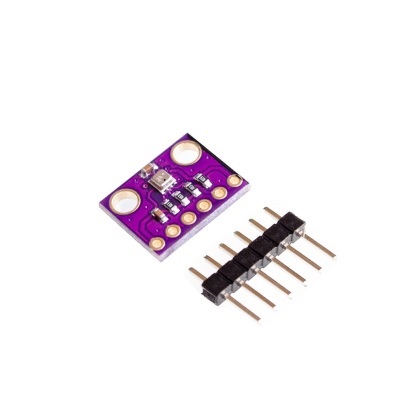

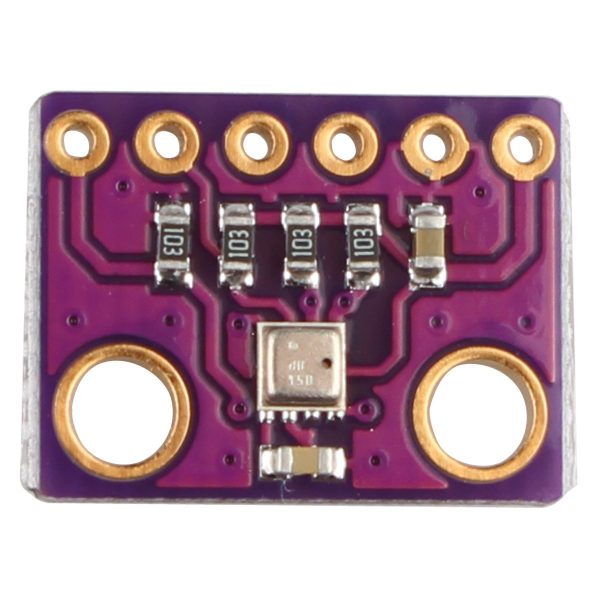

GY-BME280-3.3 高精度 大氣壓感測器模組 高度計

NT$286 NT$200 未稅

尚有庫存

貨號： 615142116(A2-18) 分類： 標籤： , ,
  • 商品說明

商品說明

GY-BME280-3.3 高精度 大氣壓 感測器 模組 高度計

• 氣壓濕度計 Barometer / Temperature & Humidity sensor
• 封裝: 8pin LGA
• 接口: IC², SPI
• 功耗: 2.8uA（氣壓）/ 1.8uA（濕度）
• 工作溫度: -40℃～ +85℃

GY-BME280-3.3 大氣壓感測器 對比上一代 BMP280氣壓傳感器產品，BME280 除了氣壓、溫度功能，還可直接輸出濕度數據。為客戶提供戶外應用環境，提供天氣預報數據等。濕度反應速度不但快速，同時精度可達3%；溫度數據精度也可達到0.01℃，特別適合穿戴戶外產品

GY-BME280-3.3 High Precision I2C SPI Breakout Barometric Pressure Temperature Humidity Digital Sensor Module Board

Product features

  • BME280 is a Breakout Board featuring a Bosch Sensortec ME280 Temperature, Humidity & Pressure Sensor.
  • The board has selectable I2C address jumper (solder link GS2), I2C pull-up resistors, 7 pin header 2.54mm, and two mounting holes 3.5mm.
  • Default setting of the board; single power rail Vdd=Vdd_IO (solder link GS1), pull-ups resistors (R2, R3) 10k, protocol selector resistor 0ohm (R1), decoupling capacitors 0.1uF on both power supply pins Vdd & Vdd_IO.
  • If you connect board to both power rails VDD_IO 1.8V and VDD 3.3V be sure to remove the power rail jumper GS1!
  • Supply voltage VDD main supply voltage range: 1.71 V to 3.6 V
Item Description:
  • The BME280 is the next generation of sensors from Bosch, and is the upgrade to the BMP085/BMP180/BMP183 – with a low altitude noise of 0.25m and the same fast conversion time. It has the same specifications, but can use either I2C or SPI. For simple easy wiring, go with I2C. If you want to connect a bunch of sensors without worrying about I2C address collisions, go with SPI.
Features:
  • Supply Voltage: 1.8 – 3.6V DC
  • Interface: I2C (up to 3.4MHz), SPI (up to 10 MHz)
  • Operational Range:
  • Temperature: -40 to +85°C
  • Humidity: 0-100%
  • Pressure: 300-1100 hPa
  • Resolution:
    • Temperature: 0.01°C
    • Humidity: 0.008%
    • Pressure: 0.18Pa
  • Accuracy:
    • Temperature: +-1°C
    • Humidity: +-3%
    • Pressure: +-1Pa
  • I2C address
  • SDO LOW ：0x76
  • SDO HIGH：0x77
GY-BME280-3.3 高精度 大氣壓 感測器 模組 高度計
GY-BME280-3.3 大氣壓感測器
