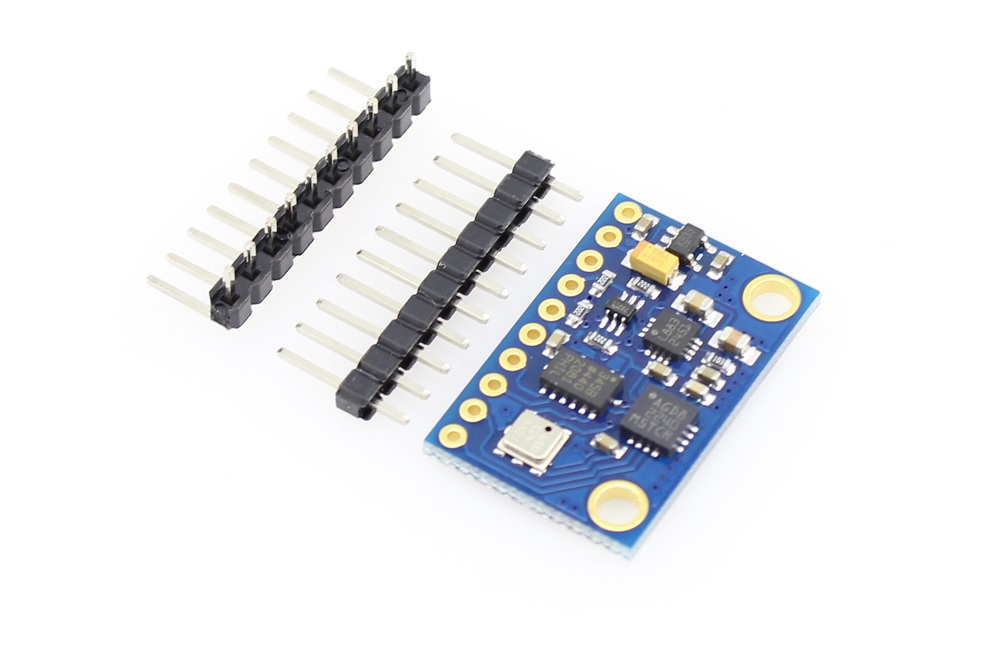

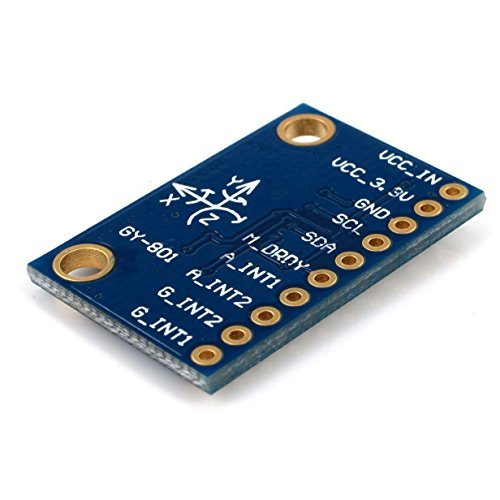

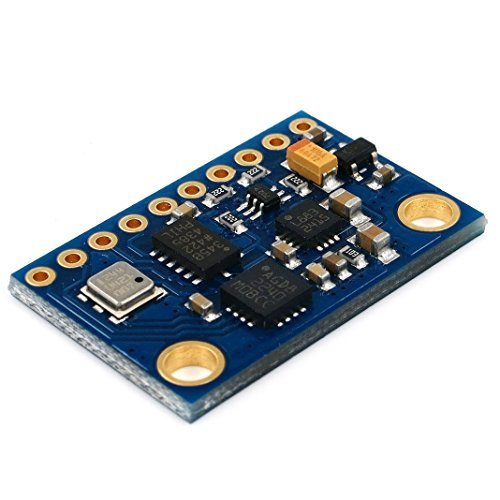

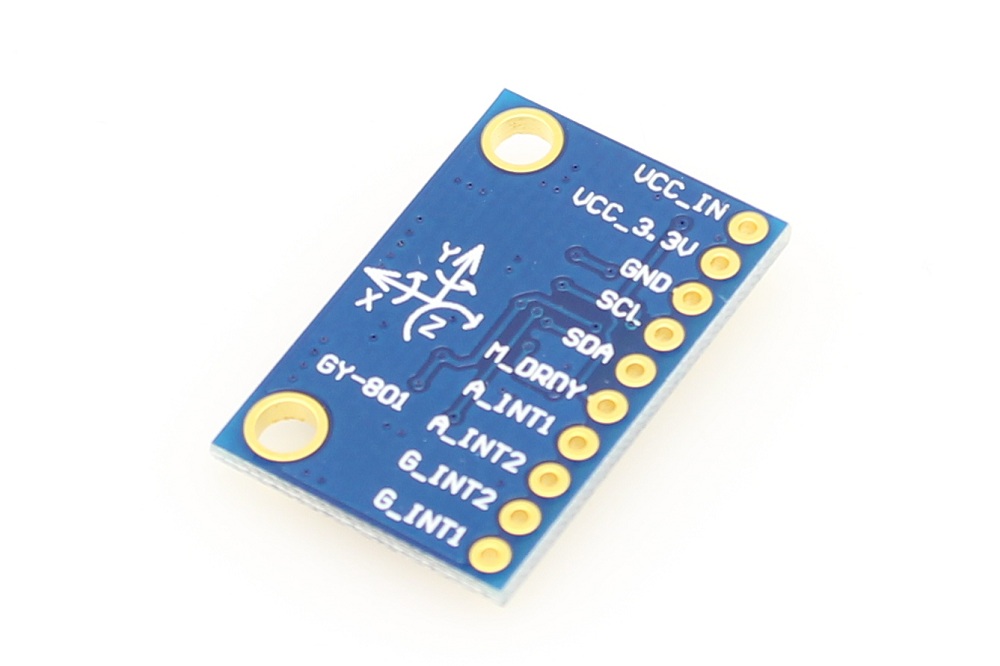

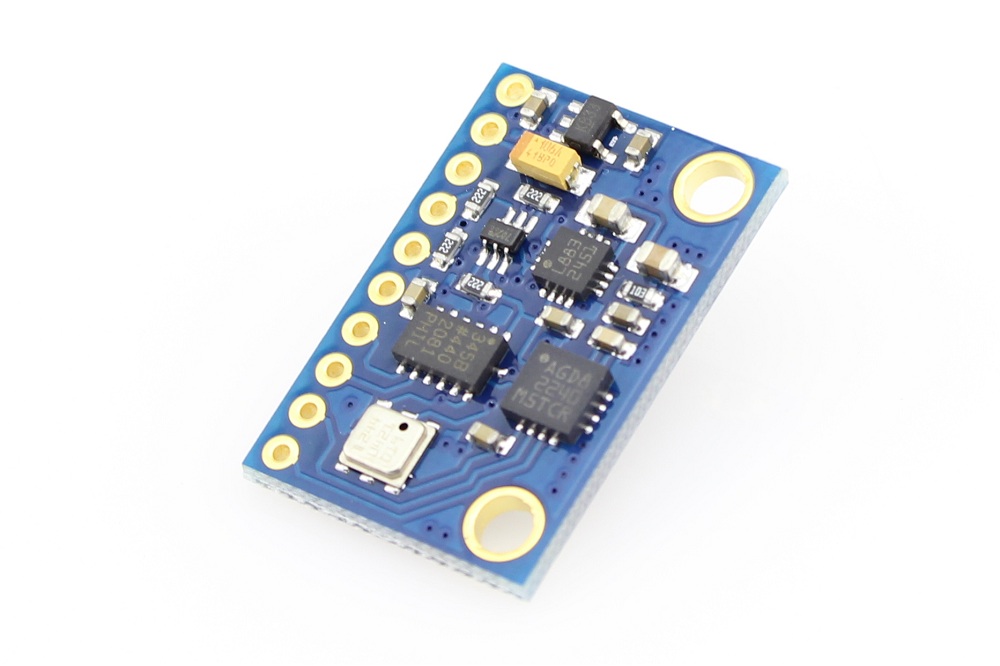

GY-801 L3G4200D+ADXL345+BMP180 九軸IMU /陀螺儀/加速度/大氣壓模組

NT$667 NT$505 未稅

尚有庫存

貨號: 543346784(A6-6) 分類: 標籤: , , , , , , ,
  • 商品說明

商品說明

GY-801 10DOF模塊九軸姿態儀 L3G4200D  BMP180 模組

GY-801 BMP180  9-Axis 10DOF Attitude Sensor Module L3G4200D  ADXL345

  • 九軸模組 (三軸陀螺儀+三軸加速度+氣壓)
  • 使用芯片:L3G4200D+ADXL345+BMP180
  •  供電電源:3-5v
  •  通信方式:IIC通信協議(完全兼容3-5v系統)
  •  尺寸: 25.8mm*16.8mm ,安裝孔3mm
  •  2.54mm插針接口,方便麵包板多孔板實驗連接

GY-801 IMU 10DOF is based on the sensor L3G4200D, ADXL345 and BMP180.

The L3G4200D is a low-power three-axis angular rate sensor able to provide unprecedented stablility of zero rate level and sensitivity over temperature and time. It includes a sensing element and an IC interface capable of providing the measured angular rate to the external world through a digital interface (I2C/SPI).

The ADXL345 is a small, thin, low power, three-axis accelerometer with high resolution (13-bit) measurement up to 16 g. The ADXL345 is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4mg/LSB) enables resolution of inclination changes of as little as 0.25°. The Honeywell HMC5883L is designed for low-field magnetic sensing with a digital interface for applications such as low-cost compassing and magnetometry

The BMP180 is the function compatible successor of the BMP085, a new generation of high precision digital pressure sensors for consumer applications. The ultra-low power, low voltage electronics of the BMP180 is optimized for use in mobile phones, PDAs, GPS navigation devices and outdoor equipment.

Features

  • Three selectable full scales (250/500/2000dps)
  • Factor in all g-ranges, up to 13-bit resolution at ±16 g
  • 12-Bit ADC Coupled with Low Noise ARM Sensors Achieves 5 milli-gauss Resolution in ±8 Gauss Fields
  • Pressure range:300 to1100hPa (+9000m to -500m above sea level)
  • I2C interfaces
  • Power supply: 3-5v

Applications

  • Gaming and virtual reality input devices
  • Vibration monitoring and compensation
  • GPS navigation systems
  • Appliances and robotics
  • Weather forecast

GY-801
