GrovePi+ Starter Kit for Raspberry Pi A+,B,B+&2,3 (CE certified) 樹莓派傳感感測器入門套件

商品說明

GrovePi+ Stater Kit Raspberry Pi 樹莓派傳感感測器入門套件

GrovePi + 經過CE認證，與Linux和Win 10 IoT兼容。

GrovePi +擴展板與12個由 SeeedStudio 仔細為您挑選的 12 個 Grove 感測器與10條電纜，這個入門工具包讓您快速運行與Raspberry Pi。只需將 GrovePi + 擴展板堆疊在您的Raspberry Pi 開發板上，並將傳感器連接到板上，即可使用強大的平台開始硬件播放和原型設計平台。關於GrovePi +，它堆疊在Raspberry Pi的頂部，而不需要任何其他連接。兩者之間的通信通過I2C接口進行。所有Grove模塊通過通用4針連接器電纜連接到GrovePi +屏蔽上的通用Grove連接器。關於用於模擬和數字信號的Grove模塊可直接連接到Grove Pi +上的ATMEGA328微控制器。微控制器作為Raspberry Pi和Grove傳感器之間的解釋器。它發送，接收和執行由RaspberryPi發送的命令。

GrovePi +與Raspberry Pi A +，B，B + / 2,3兼容。

請注意：本套件不包括 Raspberry Pi 主板。

出貨清單

本套件內有一片擴充板及 12 件傳感器或模組

1. Raspberry Pi Grove 傳感器擴充板
2. RGB 16 x 2 炫彩背光 LCD
3. 聲音傳感器
4. 溫濕度傳感器
5. 亮度傳感器
6. 旋轉角度傳感器
7. 超音波測距傳感器
8. 紅色 LED 模組
9. 綠色 LED 模組
10. 藍色 LED 模組
11. 繼電器
12. 蜂嗚器
13. 按鍵開關
14. 傳感器接線 x10
15. 使用手冊
16. 收納盒

Documents

• GrovePi+ Github
• Designer: Dexter Industeries
• GrovePi Forum
• More Grove Sensors Compatibled with Raspberry Pi

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

GrovePi+ Starter Kit for Raspberry Pi A+,B,B+&2,3 (CE certified)

What is GrovePi+ Start kit for Raspberry Pi?

Carrying a GrovePi+ board together with 12 carefully selective Grove sensors with 10 pieces cables , this starter kit gets you up and running with the Raspberry Pi quickly. Just slip the GrovePi+ board over your Raspberry Pi and connect sensors to the board, you’re ready to start hardware playing and prototyping with the powerful platform.

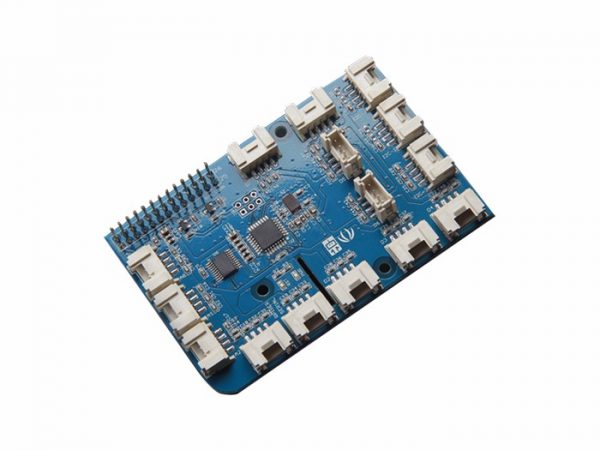

About The GrovePi+, It is stacked on top of the Raspberry Pi without the need for any other connections. Communication between the two occurs over the I2C interface. All Grove modules connect to the universal Grove connectors on the GrovePi+ shield via the universal 4 pin connector cable.

About Grove modules, which work on analog and digital signals, connect directly to the ATMEGA328 microcontroller on the Grove Pi+. The microcontroller acts as an interpreter between the Raspberry Pi and the Grove sensors. It sends, receives, and executes commands sent by the RaspberryPi.

The GrovePi+ is compatible with Raspberry Pi A+,B,B+/2,3.

Please note: The Raspberry Pi board is not included.

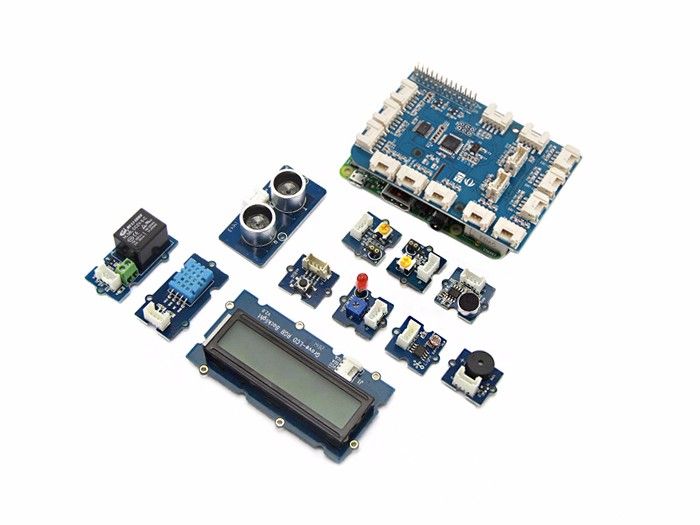

Part List

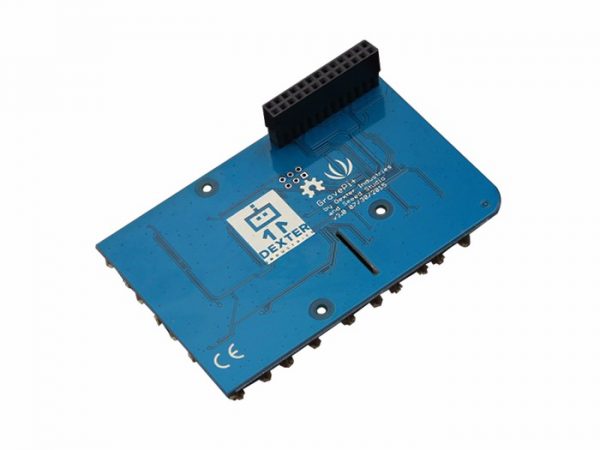

• Grove Pi+ x1
• Grove – Rotary Angle Sensor x1
• Grove – Sound Sensor x1
• Grove – LCD RGB Backlight x1
• Grove – Temp&Humi Sensor x1
• Grove – Red LED x1
• Grove – Light Sensor x1
• Grove – Buzzer x1
• Grove – Relay x1
• Grove – Blue LED x1
• Grove – Button x1

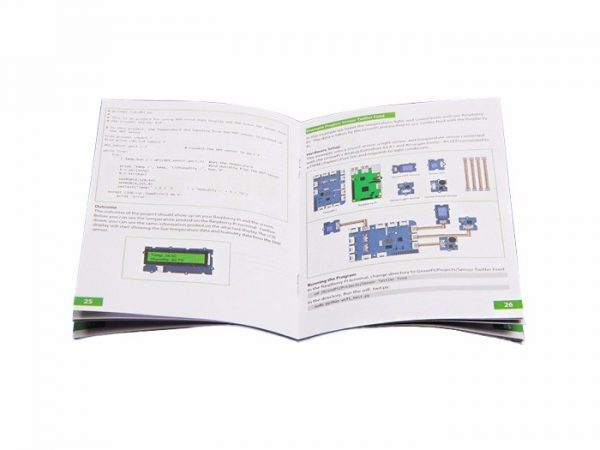

• GrovePi+ Guidebook x1
• Cables x10
• Grove – UItrasonic Ranger x1
• Grove – Green LED x1
