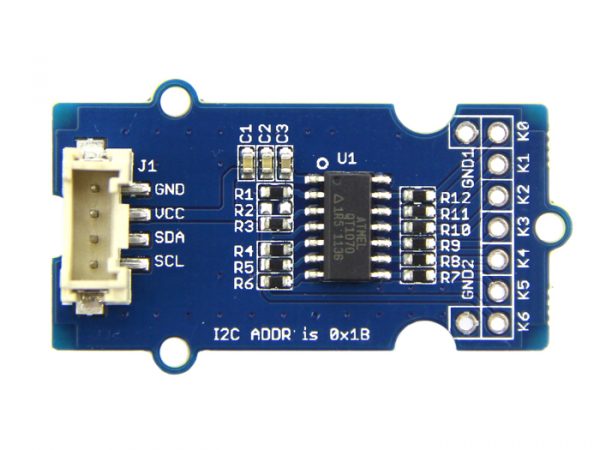

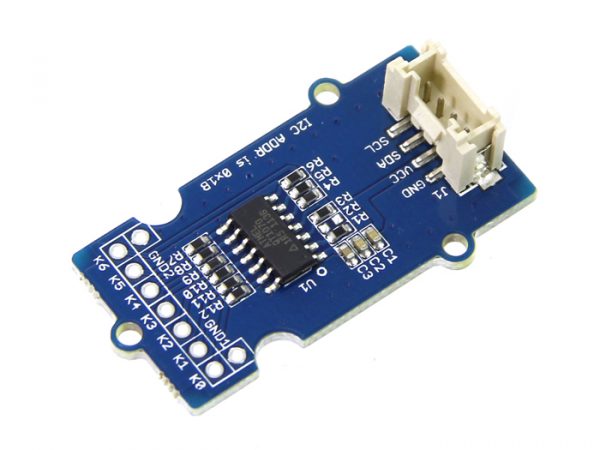

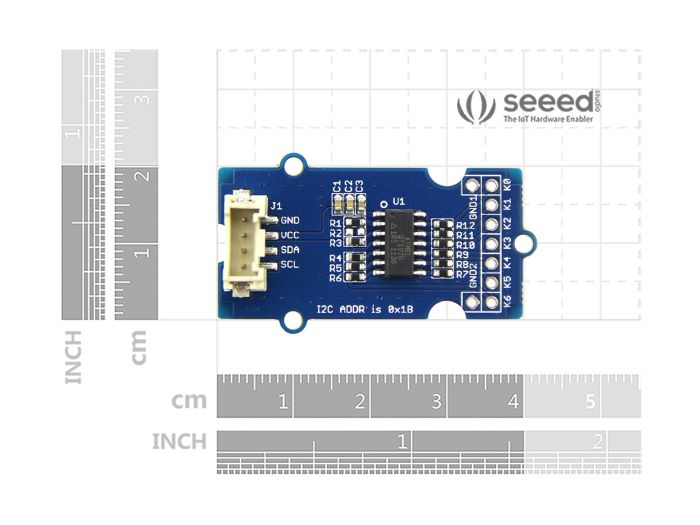

Grove-Q Touch Sensor 觸摸感測器 seeed

商品說明

Grove-Q Touch Sensor 觸摸感測器是高靈敏度和高抗噪聲觸摸輸入感測模組。它基於Atmel AT42QT1070。AT42QT1070以擴頻方式調製其突發，以大幅度抑制外部噪聲的影響，並抑制 RF 輻射的干擾。QT1070 採用雙脈衝採集方式。這提供了更大的抗噪聲能力，並且消除了對外部採樣電容器的需求，允許使用單個腳位進行觸摸感測。

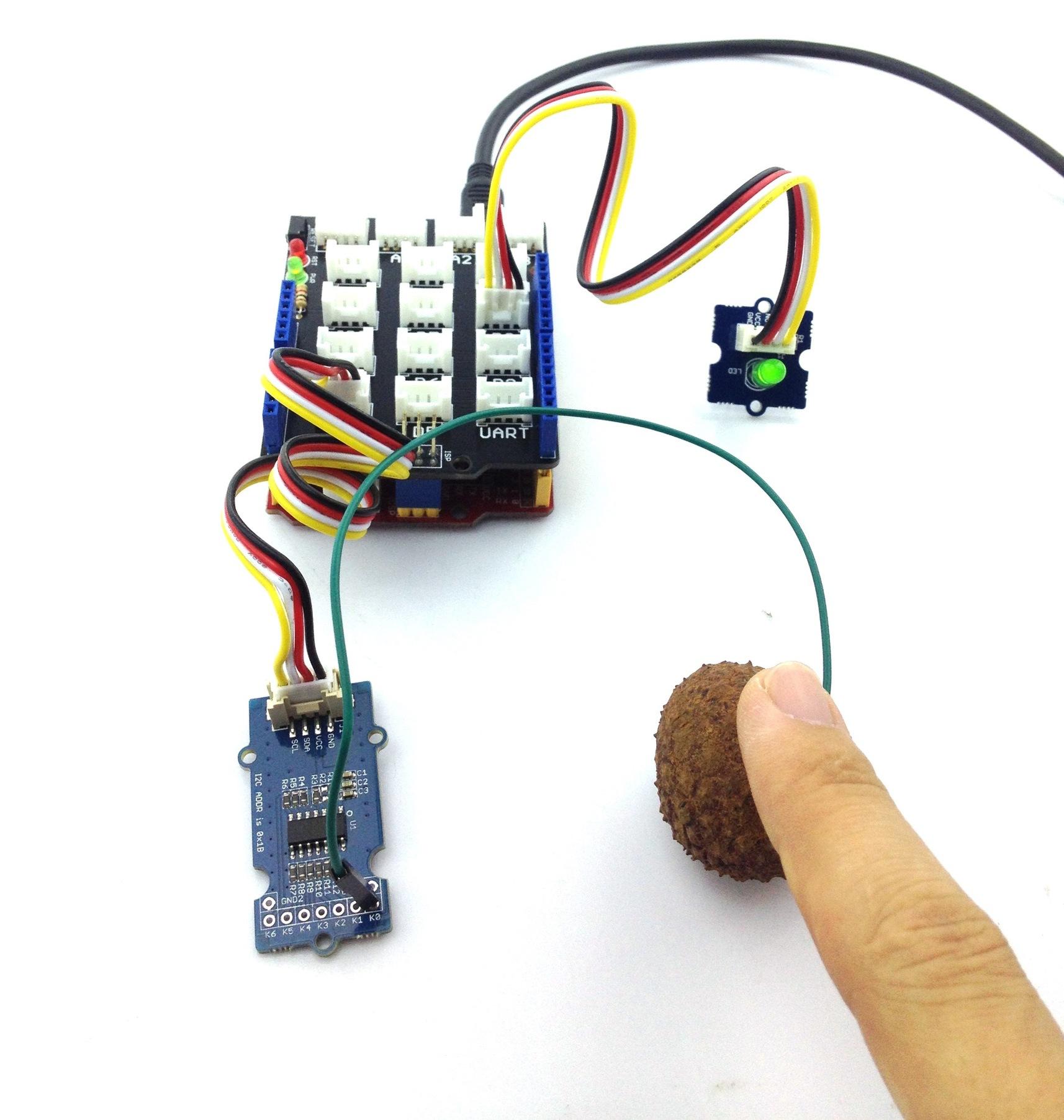

示意專案：本套件不含擴展板與Arduino 開發板。





規格

• 工作電壓：3~5.5V
• 工作電流在3.3V時：1mA

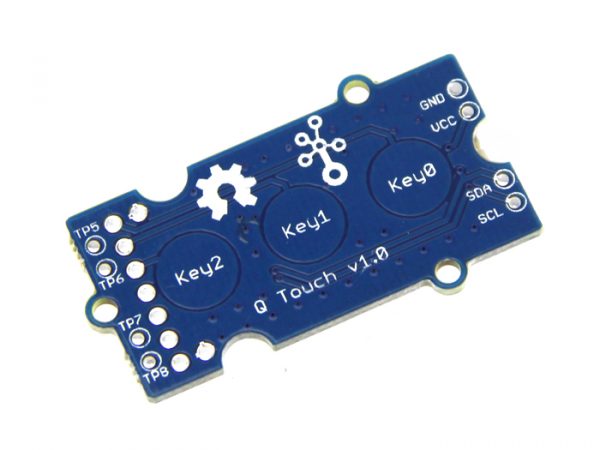

• 7鍵觸摸：key0，key1，key2位於Grove PCB底部
• 通訊協議：I2C
• I2C地址：0x1B



出貨清單

• Grove – Q Touch Sensor x1
• Grove連接線 x1



Documents

• Grove-Q Touch Sensor wiki
• Q Touch Library
• Schematic pdf
• Eagle file
• AT42QT107 datasheet
• How to detect finger touch



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



Grove-Q Touch Sensor

The Q Touch Sensor is a high sensitivity and high noise immunity touch input device.It is based on Atmel AT42QT1070. The AT42QT1070 modulates its bursts in a spread-spectrum fashion in order to heavily suppress the effects of external noise, and to suppress RF emissions. The QT1070 uses a dual-pulse method of acquisition. This provides greater noise immunity and eliminates the need for external sampling capacitors, allowing touch sensing using a single pin.

Specification

• Operating Voltage: 3 ~ 5.5V
• Operating Current @3.3V: 1mA
• Touch Keys: 7 Keys ; key0 ,key1 ,key2 are on the Grove PCB bottom side
• Communicating Protocol: I2C
• I2C Address: 0x1B
