Grove – OLED 0.96吋 Yellow&Blue Display(SSD1315 – SPI/IIC-3.3V/5V 藍黃雙色 seeed原廠

商品說明

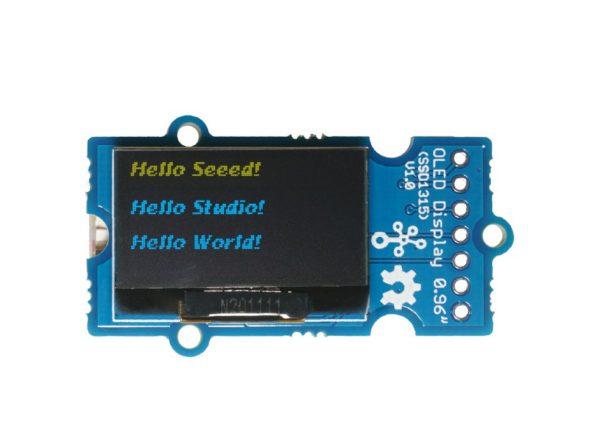

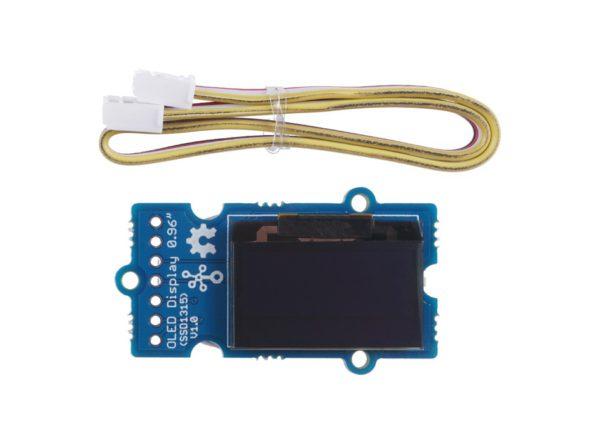

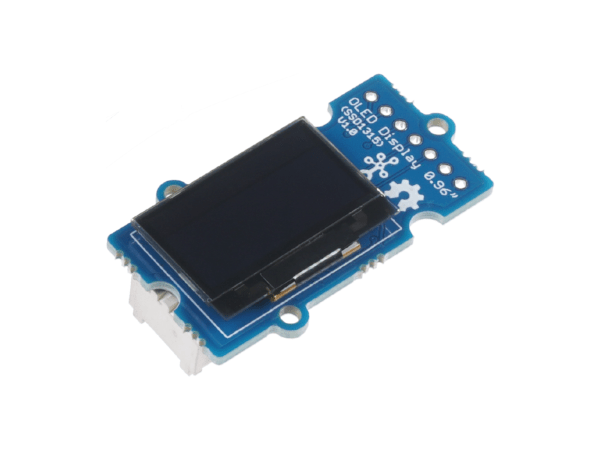

Grove – OLED 0.96吋 Yellow&Blue Display(SSD1315 – SPI/IIC-3.3V/5V 藍黃雙色

是一款分辨率為 128*64 的藍黃雙色顯示器。與 LCD 相比，OLED（有機發光二極管）具有自發光、高對比度、纖薄外形、寬視角和低功耗等諸多優點。

顯示器可在 3.3V 和 5V 電源電壓下工作。

您可以使用 I2C或SPI 接口通過微控制器點亮顯示屏，以顯示文字、圖像和您想要的任何內容。SPI有助於獲得更快的圖像反應，從而帶來更好的產品體驗。



特徵

• 兼容3.3V/5V電源
• 可更改的 I2C 地址 SPI可用
• 低功耗
• 黃藍雙色128×64像素
• 高對比度、高亮度
• 工作溫度範圍：-40℃～+85℃
• Grove 連接器隱藏在背面



規格

範圍	值
輸入電壓	3.3V / 5V
輸出電壓	0～2.3V
像素	128×64
溫度範圍	-40℃～+85℃
界面	I2C/SPI



Documents



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

Grove – OLED Yellow&Blue Display 0.96 (SSD1315) – SPI/IIC -3.3V/5V

Key Features

• 3.3V/5V power supply compatible
• Changeable I2C address
• SPI available
• Low power consumption
• Yellow and Blue two-colour 128×64 pixels
• High contrast, high brightness
• Wide operating temperature range: -40℃ ~ +85 ℃
• Grove connector is hidden on the back

Description

The Grove – OLED Yellow&Blue Display 0.96 (SSD1315) is a blue and yellow bi-colour display with 128*64 resolution. Compared with LCDs, there are many advantages of OLED(Organic Light Emitting Diode) like self-emission, high contrast ratio, slim/thin outline, wide viewing angle and low power consumption. The display works on both 3.3V and 5V supply voltage.

You can use either the I2C or SPI interface to light up the display with your microcontroller to display words, images, and whatever you want. SPI helps to get the quicker images reaction which brings a better product experience.

Specification

Parameter	Value
Input voltage	3.3V / 5V
Output Voltage	0 ~ 2.3V
Pixels	128 x 64
Temperature Range	-40℃ ~ +85 ℃
Interface	I2C/SPI
