Grove – OLED Display 0.96” 顯示模組 I2C 介面 128×64 灰階 seeed原廠

商品說明

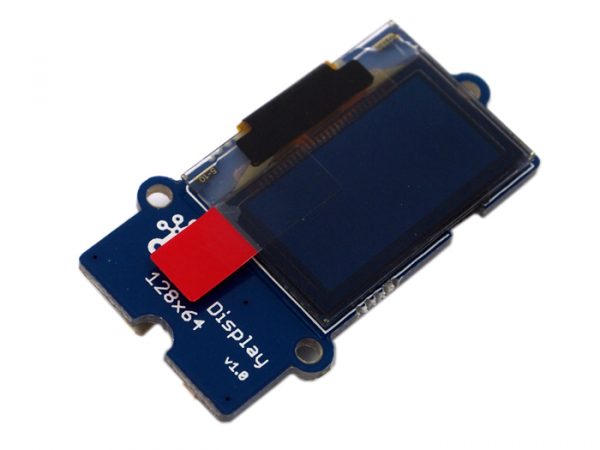

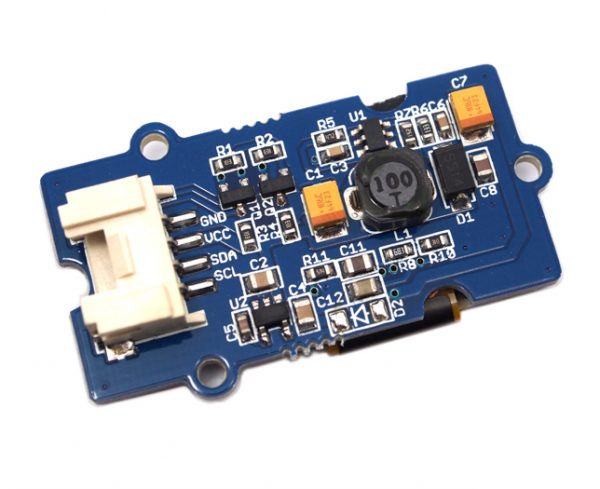

Grove OLED 顯示模組 I2C 介面 128×64 灰階

此模塊是一款帶有Grove I2C接口的OLED單色128×64點矩陣顯示模塊。與LCD相比，OLED屏幕更具競爭力。它具有高亮度，可發光，高對比度，外形小巧，視角廣，溫度範圍寬，功耗低等特點。同時它的屏幕比較大，可以顯示比OLED 96×96更多的內容。

特徵

• Grove兼容接口
• 通信模式：I2C
• 功耗低
• 顯示顏色：白色
• 工作溫度範圍廣：-20℃~70℃



規格參數

Items	Min	Norm	Max	Unit
Power Voltage (VCC)	3.3	5.0	5.5	V
Driver IC	–	SSD1308Z	–	–
Display Color	–	White	–	–
Dot Matrix	–	128×64	–	–
Panel Size	–	26.7(W)×19.26(H)	–	mm
Active Area	–	21.74(W)×11.175 (H)	–	mm
Dot Pitch	–	0.17(W)×0.175 (H)	–	mm
Dot Size	–	0.15(W)×0.15 (H)	–	mm
Wide range of operating temperature	–	-20~70	–	℃





出貨清單

• Grove – OLED Display 0.96″ x1
• Grove連接線 x1



Documents

• Grove – OLED Display 0.96″ wiki
• Grove-OLED128x64 Schematic.pdf
• GitHub Library for OLED
• 【PDF】Preface – Getting Started
• 【PDF】Introduction to Grove
• 【WIKI】Introduction to Grove System
• 【Forum】Grove Forum





＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



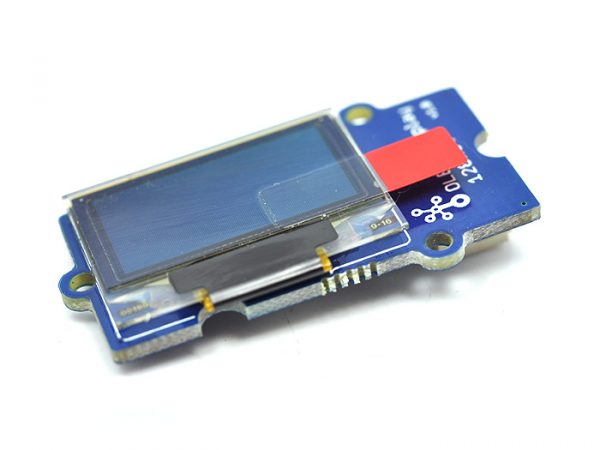

Grove – OLED Display 0.96″

Grove – OLED Display 0.96″ is an OLED monochrome 128×64dot matrix display module with Grove 4pin I2C Interface .The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It has a bigger screen and uses all the columns from the SSD1308 chip so that it can display more contents than the OLED 96×16.

Features

• Grove compatible
• Small size
• I2C Interface
• Low power consumption
