Grove – Mini Fan v1.1 迷你風扇 seeed原廠
NT$333 NT$280 未稅
尚有庫存
- 商品說明
商品說明
Grove – Mini Fan v1.1 迷你風扇
Grove – Mini Fan 模組是基於 AVR Atmega168 微控制器的直流電機驅動器。該模組還提供了一個介面,通過它可以更改微控制器代碼。
例如,可以更改代碼,以便該模組可用於驅動 伺服電機。 默認情況下,該模組設置為運行包裝中的直流電機。
包裝中的軟風扇也可以連接到電機上,為孩子們做一個有趣的項目。柔軟的風扇是完全安全的,即使高速轉動也不會有任何傷害。
產品特性
- 用戶友好型輸出模塊根據從輸入傳感器或開關模塊接收到的信號觸發直流電機運行
- 與包裝中附帶的直流電機配合使用
- JST 2.0接口用於連接電機

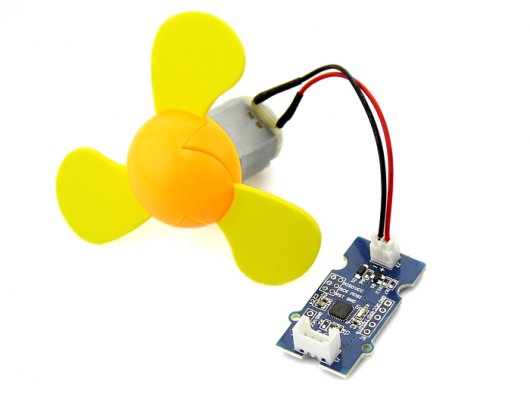

- 直流電機帶有豐富多彩的柔軟風扇附件(如圖所示)
- 板載微控制器可以重新編程以更改模塊操作
- 微控制器運行的Arduino兼容代碼
- 更換代碼以驅動伺服電機,而不是直流電機
- 使用標準4針Grove線纜連接到其他Grove模塊
- 注意:對於最新版本(v1.1),電機的輸出電壓更新為3.3伏。

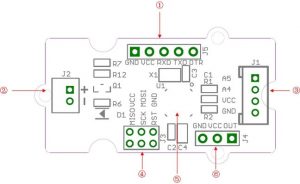

接口功能
① UartSBee 介面 : 使用此介面更改微控制器代碼。使用 [UartSBee](/UartSBee_V4) 模組的 Uart 介面連接到微控制器。
② JST 2.0 介面 : 用於連接 3.3V 直流電機(僅 3.3V)
③ Grove 介面
④ ICSP 介面
⑤ Atmega168 微控制器
⑥ Servo 介面

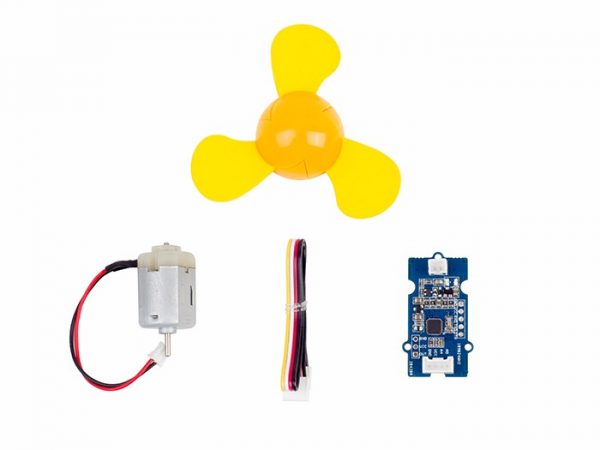

出貨清單
- Mini_Fan x1
- 直流電機 x1
- 直流電機驅動板 x1
- Grove連接線 x1
Documents
=========================================================
Grove – Mini Fan v1.1
Hey hey, calm down, have some fresh air here. The Grove – Mini Fan v1.1 can be set up in seconds and bring you some nice and cool air in the hot days. It has four parts, a mini fan, a DC Motor, a DC motor driver and a Grove cable. The cartoon-style fan design makes it good choice for decorating your little LEGO house as well.
The motor driver boards have a built-in programmable microcontroller that uses Arduino IDE. In default, it is programmed to drive DC motors with analog inputs, and the rotate speed depends on the value of input signal. You can simply connect up all the parts and plug it into a controller board that has Grove interfaces, upload some code and you are ready to make it spin.
Features
- Easy to use
- Cartoon Style mini fan
- Soft fan-blade to avoid injuries
- Built-in programmable microcontroller that uses Arduino IDE
- You can change the code to drive servo motors instead of DC motor
Specificaiton
- Input Voltage: 5V
- Connector: 4 Pin Buckled Grove interface for input signal; JST 2.0 interface for the DC motor

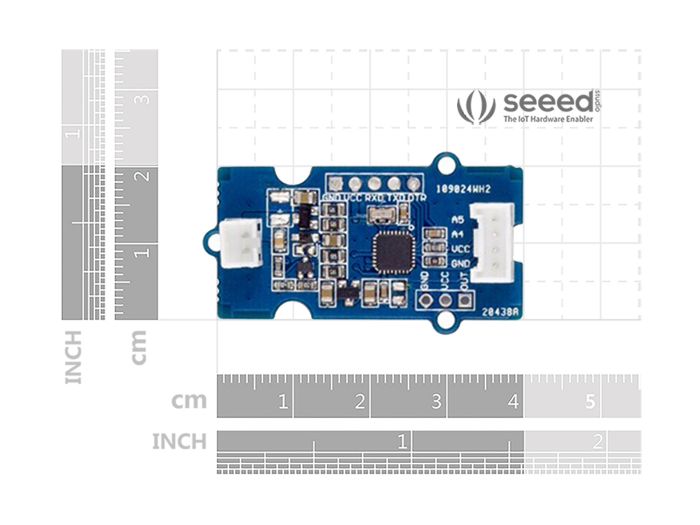

- Dimension: 20mm x 20mm
Documents
For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface – Getting Started and Introduction to Grove before your using of the product.
- For technical discussion, please come to our Forum.
- For projects that you would like to share with the community, please visit Recipe.
