Grove – Chainable RGB Led V2.0 seeed原廠
NT$238 NT$180 未稅
Grove-Chainable RGB LED V2.0基於P9813S14芯片。該芯片是一款全彩色光源驅動芯片,可提供三個恆流驅動器和256個灰度調製輸出。通過將一個LED的輸出樹槽連接器連接到另一個LED的輸入樹槽連接器,您最多可以鏈接1024個RGB LED!
尚有庫存
- 商品說明
商品說明

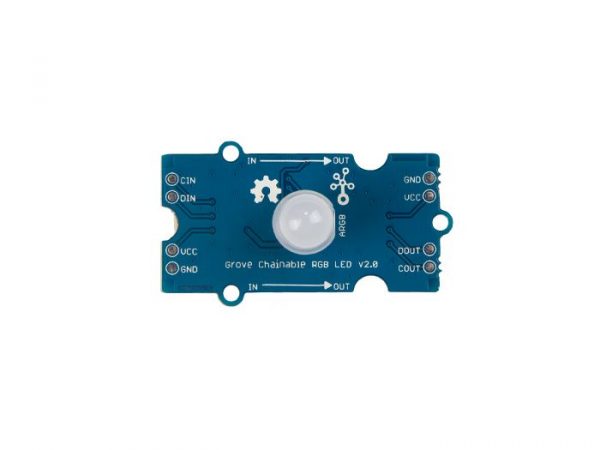

Grove – Chainable RGB Led V2.0
Grove – Chainable RGB LED 是基於 P9813 晶片的,它是全彩 LED 燈的驅動器。它提供 3 個恒流的驅動器以及 256 個灰度調製的輸出信號。它使用兩線傳輸(資料和時鐘)能夠與 MCU 進行通信。 可以使用這種兩線傳輸的功能實現 Grove – Chainable RGB LED 模組的多個連接。
內置的時鐘傳輸能夠增大傳輸距離。 該 Grove 模組能夠適用於任何使用彩色 LED 燈專案。
規格

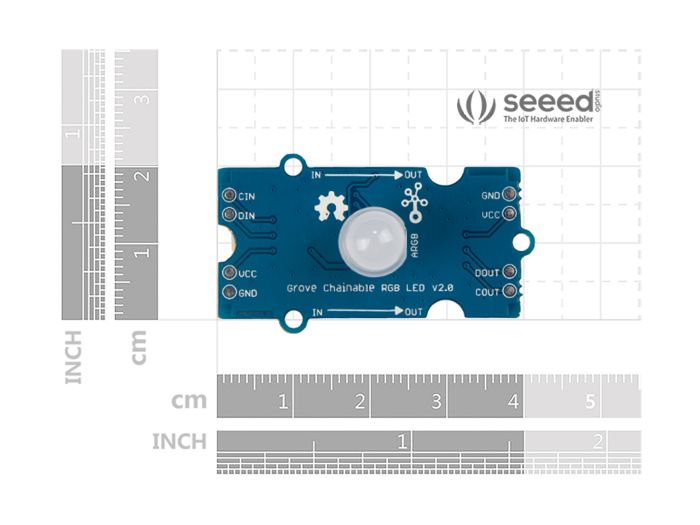

外形尺寸 | 40mm x20mm x15mm |
重量 | G.W 11g |
電池 | Exclude |
輸入電壓 | 5V |
工作溫度 | -40 – 85℃ |
最大工作電流 | 60mA |
最大鍊條LED數量: | 1024 |

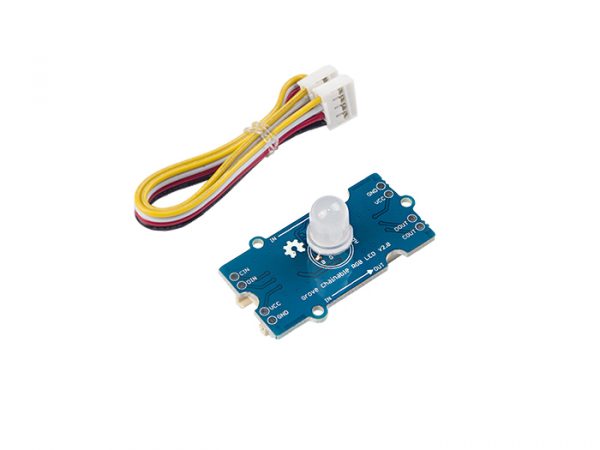

出貨清單
- Grove – Chainable RGB Led V2.0 x1
- Grove 連接線 x1
Documents
=========================================================
Grove – Chainable RGB Led V2.0
RGB LED always bring us vivid and magic light effect, especially when there are a large number of LEDs shining together. However it is not easy to connect all the LEDs together if you want to build such LED projects. Why not have a try with Seeed’s Grove- Chainable RGB LED V2.0.
Grove-Chainable RGB LED V2.0 is based on P9813S14 chip. This chip is a full-color light source driver chip that can provide three constant current driver and 256 greyscale modulation output. The key word of this product is “Chainable”, so how many LEDs can it be chained? By connecting the output grove connector of one LED to the input grove connector of another one, you are able to chain 1024 RGB LEDs at most!

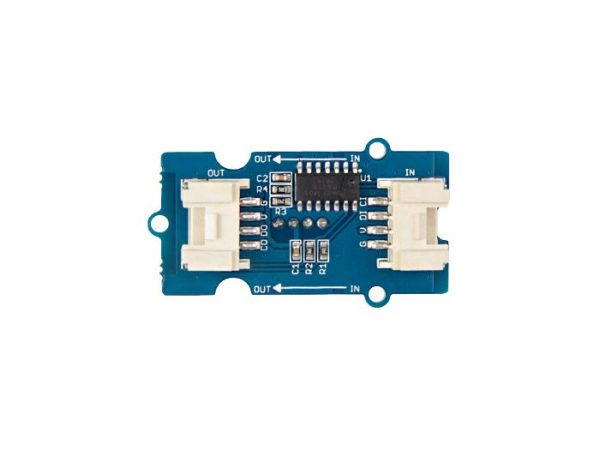

If you have experience using Grove-Chainable RGB LED V1.0, you will find that V2.0 is a bit longer than V1.0. In V2.0, because we adjust the grove connectors to be parallel with the board instead of vertical, so that the cable don’t need to be crooked.
Technical details
Dimensions | 40mm x20mm x15mm |
Weight | G.W 11g |
Battery | Exclude |
Input voltage | 5V |
Working temperature | -40 – 85℃ |
Max working current | 60mA |
Max Chained LED Quantity: | 1024 |
