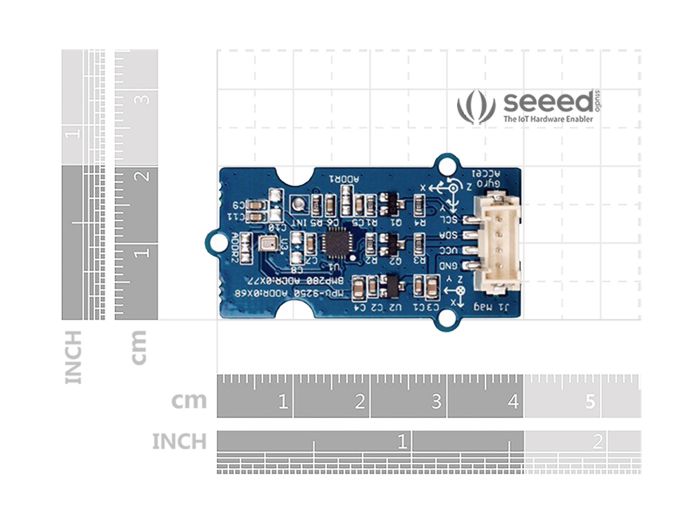

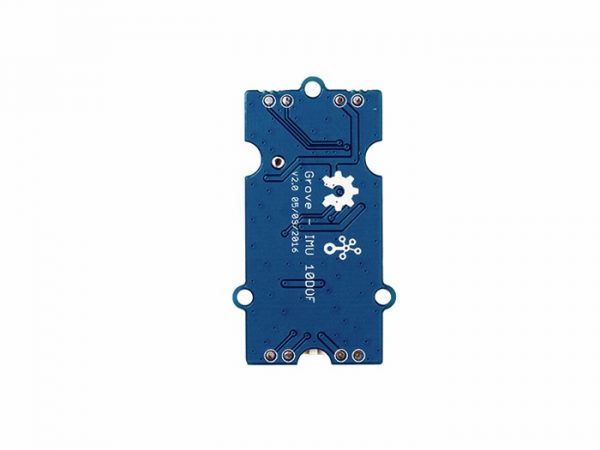

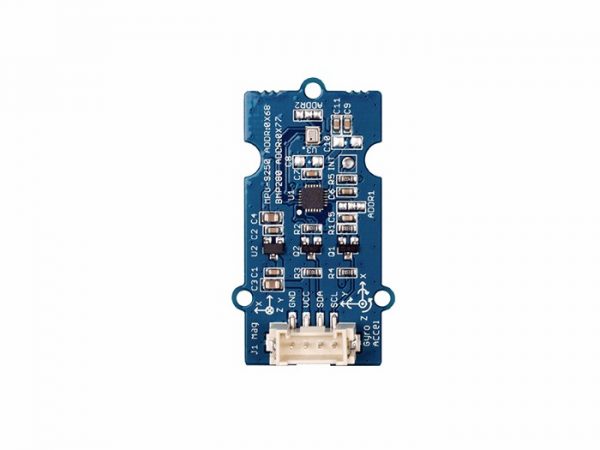

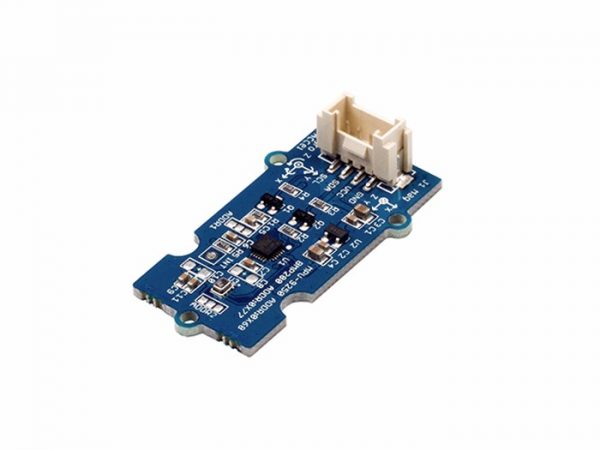

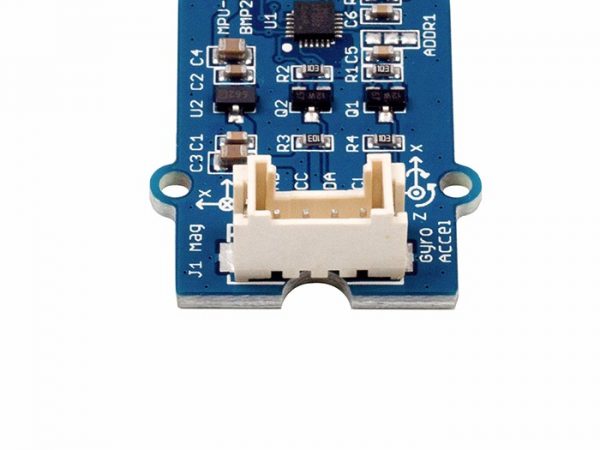

Grove IMU 10DOF v2.0 多功能感測器 三軸加速度/陀螺儀/磁力計/氣壓計

-11%

Grove IMU 10DOF v2.0 多功能感測器 三軸加速度/陀螺儀/磁力計/氣壓計

NT$590 NT$524 未稅

Grove  IMU 10DOF v2.0 多功能感測器  3軸陀螺儀,3軸加速度計,3軸磁力計和數字運動處理器

Grove  IMU 10DOF  V2.0 是基於MPU-9250和BMP280.MPU-9250仍然是最兼容的9-aixs運動跟踪設備,它結合了3軸陀螺儀,3軸加速度計,3軸磁力計和數字運動處理器(DMP),採用3 * 3 * 1mm封裝。關於BMP280,從Grove  IMU 10DOF 的主要變化,這次它被包裝在比BMP180小65%的非常緊湊的包裝。不僅尺寸小,功耗更低,低至2.74uA@1Hz。

尚有庫存

貨號: 101020252(A9-15) 分類: 標籤: , , , , , , ,
  • 商品說明
  • 評論 (0)

商品說明

Grove  IMU 10DOF v2.0 多功能感測器 三軸加速度/陀螺儀/磁力計/氣壓計

Grove  IMU 10DOF  V2.0 是基於MPU-9250和BMP280.MPU-9250仍然是最兼容的9-aixs運動跟踪設備,它結合了3軸陀螺儀,3軸加速度計,3軸磁力計和數字運動處理器(DMP),採用3 * 3 * 1mm封裝。關於BMP280,從Grove  IMU 10DOF 的主要變化,這次它被包裝在比BMP180小65%的非常緊湊的包裝。不僅尺寸小,功耗更低,低至2.74uA@1Hz。

Grove  IMU 10DOF 通過MPU-9250和BMP280的完美結合,Grove IMU 10DOF可以為您提供總共10個數據軸,允許您構建移動項目,如智能手機,可穿戴設備,Quadrotor,甚至可以構建像PSP這樣的操縱桿控制器和Xbox。
Grove  IMU 10DOF v2.0
特徵

  • 數字輸出X,Y和Z軸角速度傳感器(陀螺儀),用戶可編程的滿量程範圍為±250,±500,±1000和±2000°/秒
  • 數字輸出3軸加速度計,可編程滿量程範圍為±2g,±4g,±8g和±16g
  • 數字輸出磁力計,滿量程範圍為±4800uT
  • 溫度測量精度為±1.0°C
  • 大氣壓測量範圍為300 – 1100 hPa,精度為±1.0 hPa

規範

  • 輸入電壓:5V / 3.3V
  • 工作電流:6mA
  • 工作溫度:-40 – 85℃
  • 尺寸:20 * 40mm
  • 重量:3g
  • 可編程中斷

Grove IMU 10DOF v2.0



  • Upgrade BPM180 to BMP280
  • Smaller in size with less power consumption
  • User-programmable full-scale range (digital output)
  • High accuracy for temp/pressure measurement
  • Ideal for motion tracking and environment monitoring

Last time, we released a 10 degree of freedom sensor Grove – IMU 10DOF, which is a combination of Grove – IMU 9DOF and Grove – Barometer Sensor(BMP180).As BOSCH has released its BMP280,and upgrade version of BMP 180. It is the perfect time to upgrade our Grove too.so here it is, Grove – IMU 10DOF V2.0.

The Grove – IMU 10DOF V2.0 is based on MPU-9250 and BMP280.MPU-9250 is still the most compatible 9-aixs motion tracking device which combines a 3-axis gyroscope, 3-axis accelerometer, 3-axis magnetometer and a Digital Motion Processor (DMP) in a 3*3*1mm package. Regarding BMP280, the main change from Grove IMU 10DOF V1.0, this time it is housed in an extremely compact package that is 65% smaller than BMP180. Not just the size, the power consumption is even lower to be as low as 2.74uA@1Hz.

With the perfect combination of MPU-9250 and BMP280, the Grove IMU 10DOF can provide in total 10 axes of data to you, allows you to build mobile projects such as smartphone, wearable devices, Quadrotor, you can even build a joystick controller like PSP and Xbox on your own.

Note

  • ŸSince it is a combination of MPU-9250 and BMP280, you are highly suggested to visit our wiki for detail datasheet and other instructors.
  • As a kindly reminder, please pay attention not to touch the barometer pressure sensor by hand.
  • For advanced users, if you want to change the I2C address of MPU-9250 and BMP280, you can cut the ADDR and connect the new ADDR board you want.

Features

  • Digital-output X-, Y-, and Z-Axis angular rate sensors (gyroscopes) with a user-programmable full-scale range of ±250, ±500, ±1000, and ±2000°/sec
  • Digital-output 3-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g
  • Digital-output magnetometer with a full scale range of ±4800uT
  • Temperaure measurement with ±1.0°C accuracy
  • Barometric pressure measurement range 300 – 1100 hPa with ±1.0 hPa accuracy

Specification

  • Input Voltage: 5V/3.3V
  • Working Current: 6mA
  • Working Temperature:-40 – 85℃
  • Size: 20*40mm
  • Weight: 3g
  • Programmable interrupt
