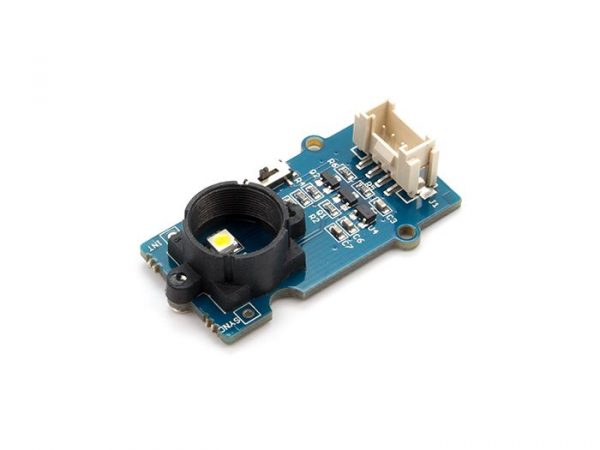

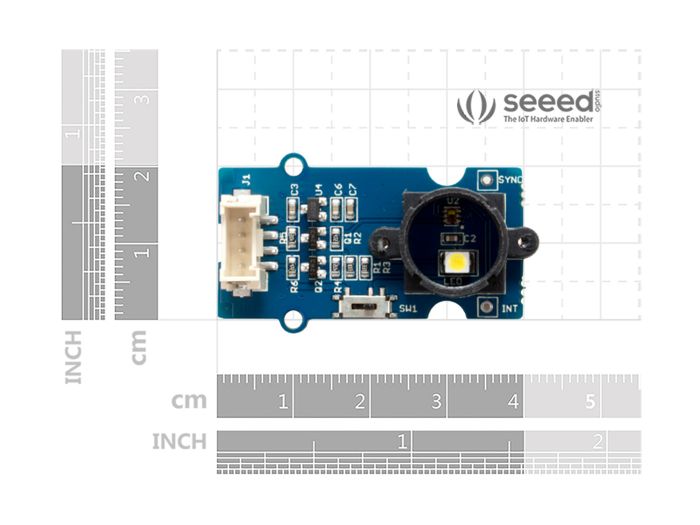

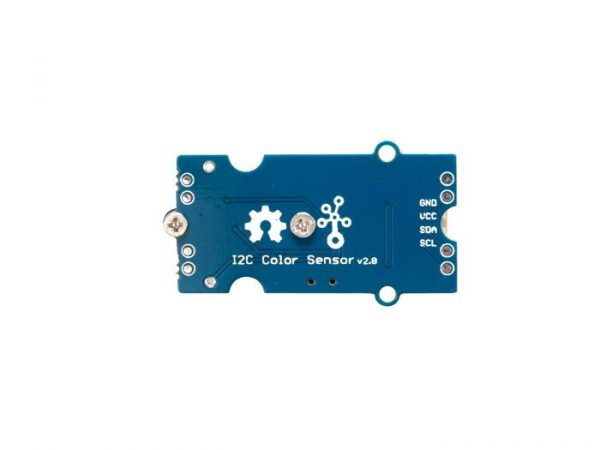

Grove – I2C Color Sensor V2 顏色感測器

基於3 * 4濾光光電二極管陣列和16位模數轉換器，您可以獲得環境光的顏色色度或物體的顏色。在16個光電二極管中， 4個具有紅色濾光片，4個具有綠色濾光片，4個沒有濾光片（透明）。他們使用同步輸入引腳，外部脈衝光源可以提供精確的同步轉換控制。

特徵

• Grove兼容接口
• I2C為400 kHz的16位數字輸出
• SYNC輸入使積分週期與調製光源同步
• 可編程中斷功能，具有用戶定義的上限和下限閾值設置
• 電源電壓:3.3 / 5V
• 工作溫度範圍:-40℃至85℃
• I2C接口

出貨清單

• Grove – I2C Color Sensor x1
• Grove連接線 x1

Documents

• Grove庫 – I2C色彩傳感器V2.0
• Grove-I2C顏色傳感器Eagle File V2.0
• Grove-I2C顏色傳感器SCH文件V2.0
• Grove-I2C顏色傳感器PCB文件V2.0

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

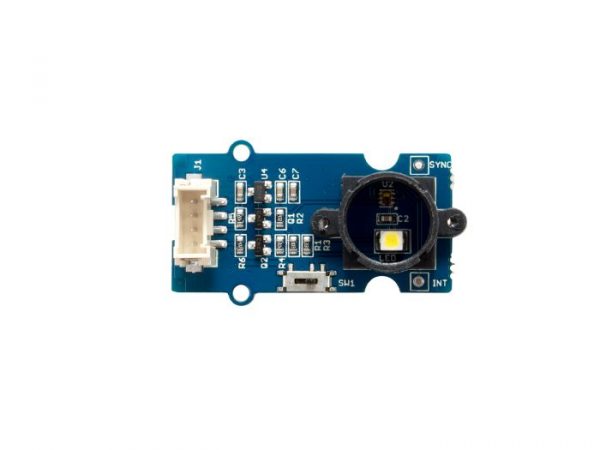

Grove – I2C Color Sensor V2

This is an updated version of the Grove – I2C Color Sensor module. The new version is based on the color sensor TCS34725FN with digital output I2C. We also changed the circuit’s layout based on the new sensor. Based on the 3*4 array of filtered photodiodes and 16-bits analog-to-digital converters, you can gain the color chromaticity of ambient light or the color of objects. Of the 16 photodiodes, 4 have red filters, 4 have green filters, 4 have blue filters and 4 have no filter(clear). With the synchronization input pin, external pulsed light source can provides precise synchronous conversion control.

Features

• Grove compatible interface
• 16-Bit digital output with I 2C at 400 kHz
• SYNC Input Synchronizes Integration Cycle to Modulated Light Sources
• Programmable interrupt function with User-Defined Upper and lower threshold settings
