Grove – Capacitive Moisture Sensor 電容式土壤濕度感測器 (耐腐蝕)seeed原廠

商品說明

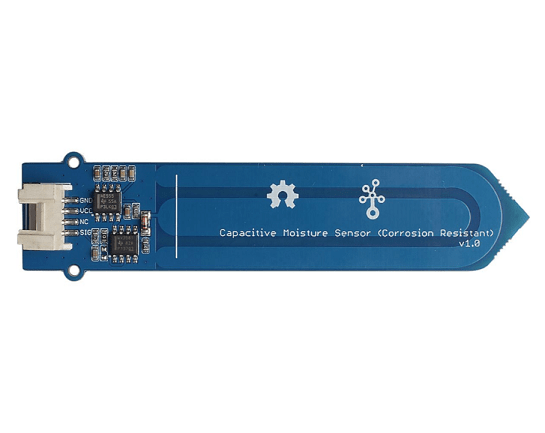

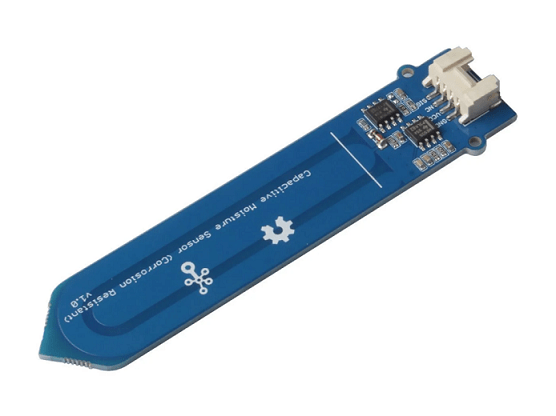

Grove – Capacitive Moisture Sensor 電容式土壤濕度感測器 (耐腐蝕)

土壤濕度傳感器是一種檢測土壤體積含水量的傳感器。 Grove 電容式土壤濕度傳感器（耐腐蝕）是一種基於電容變化的土壤濕度傳感器。

與電阻式傳感器相比，電容式傳感器不需要直接暴露金屬電極，可以顯著減少電極的腐蝕。

需要注意的是，這種傳感器只能定性測試土壤的濕度，不能定量測量。當土壤濕度升高時，輸出值減小；相反，當濕度降低時，輸出值會變高。



特徵

• 電容式
• 耐腐蝕
• 內置放大器

應用

• 土壤水分檢測
• 植物自動澆水

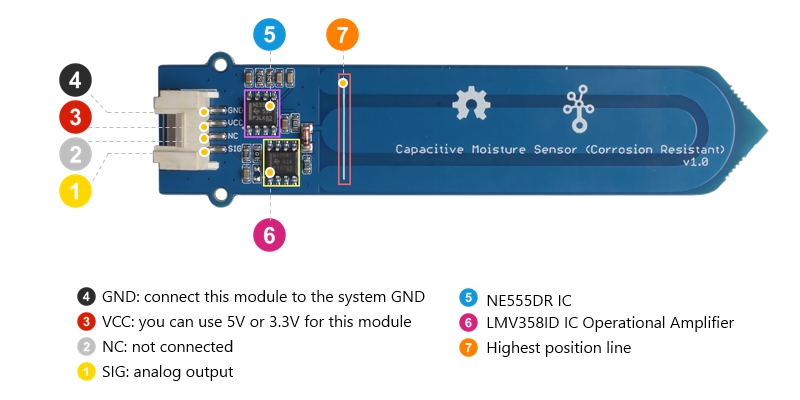

引腳輸出

Documents

• Grove – Capacitive Moisture Sensor (Corrosion Resistant) Eagle Files
• NE555DR Datasheet
• PDF Format Wiki



教學專題

[Wiki] Grove – Capacitive Moisture Sensor (Corrosion Resistant)

[Project] Education with IoT- LoRa+Arduino



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



Grove – Capacitive Soil Moisture Sensor (Corrosion Resistant)

A soil moisture sensor is one that detects the volumetric water content of the soil. The Grove – Capacitive Soil Moisture Sensor (Corrosion Resistant) is a soil moisture sensor based on capacitance changes. Compared with resistive sensors, capacitive sensors do not require direct exposure of the metal electrodes, which can significantly reduce the erosion of the electrodes. Hence, we call it Corrosion Resistant.

It is important to note that this sensor can only qualitatively test the humidity of the soil and cannot measure quantitatively. When the humidity of the soil rises, the value of the output decreases; conversely, when the humidity decreases, the output value becomes higher.

Feature

• Capacitive Style
• Corrosion Resistant
• Built-in Amplifier

Typical Applications

• Soil moisture detection
• Automatic watering of plants

What is Grove?

Grove makes it easier to connect, experiment, and simplify the prototyping process. No jumpers or soldering required. We have developed more than 300 Grove modules, covering a wide range of applications that can fulfill a variety of needs. Not only are these open hardware, but we also have open-source software.

Also, check our blog Soil Moisture Sensor – How to choose and use with Arduino to get started with a new Arduino environmental project right now!

Pin Out
