Grove – 6-Axis Accelerometer&Gyroscope 6軸加速度計和陀螺儀 seeed原廠

-3%

Grove – 6-Axis Accelerometer&Gyroscope 6軸加速度計和陀螺儀 seeed原廠

NT$429 NT$414 未稅

此模組也包含3軸數字加速度計和3軸數字陀螺儀,可用於傾斜,運動和分接感應等不同應用,如機器人,物聯網設備和消費電子設備。

尚有庫存

  • 商品說明
  • 評論 (0)

商品說明

Grove – 6-Axis Accelerometer&Gyroscope 6軸加速度計和陀螺儀

Grove – 6軸加速度計和陀螺儀也包含3軸數字加速度計和3軸數字陀螺儀。

它具有極低功耗數字芯片LSM6DS3和內置電源調節器,以及很高靈敏度高,綠色科技和低噪音干擾。它可以用於製作需要不同靈敏度加速度計和設定不同角速度測量範圍的項目。如果提供詳細的SDK,它可以使製作開發過程更快捷。

該產品可用於傾斜,運動和分接感應等不同應用,如機器人,物聯網設備和消費電子設備。

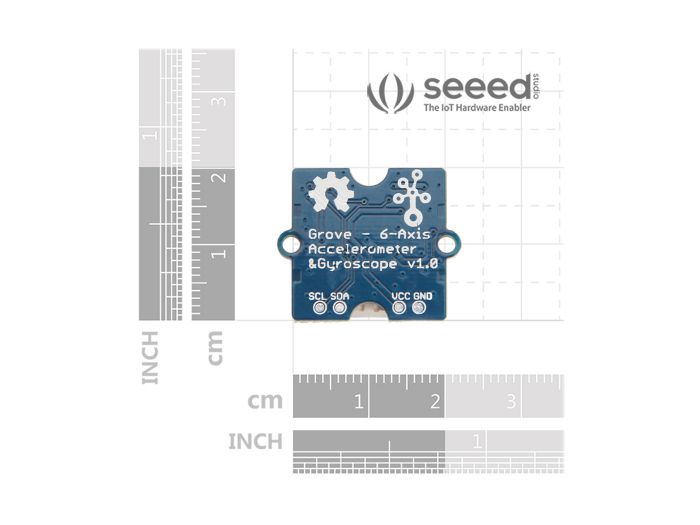

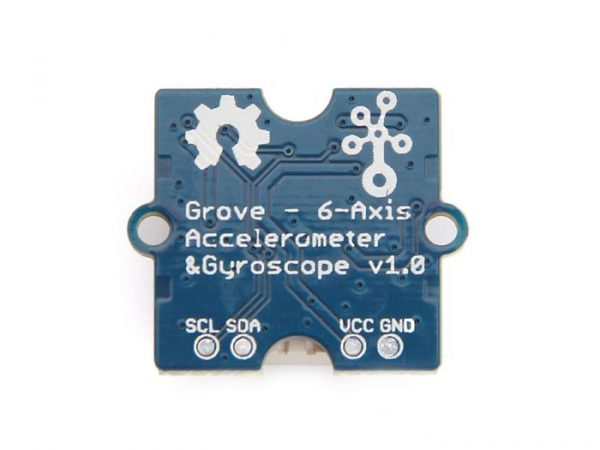

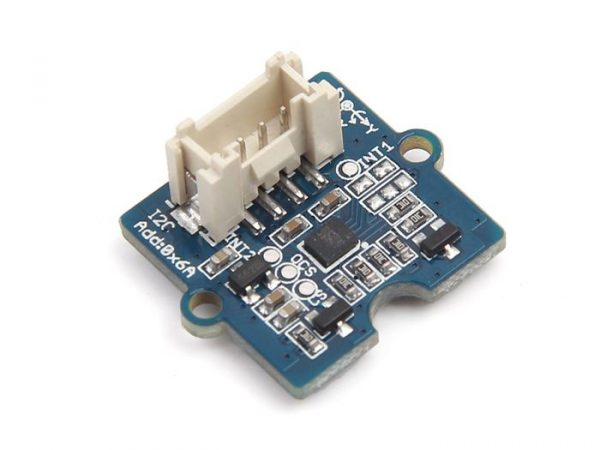

Grove - 6-Axis Accelerometer&Gyroscope

特徵

  • Grove接口和高經濟性。
  • 6 DOF運動數據的數字輸出。
  • ±2 /±4 /±8 /±16 g全尺寸精簡加速度感應範圍,適用於各種環境。
  • ±125±245,±500,±1000,±2000度/秒(DPS),用於角速率測量範圍使其具有通用性。
  • 詳細的SDK,便於編程。
  • 可靠數據採集調節電源。
  • 針對不同事件的編程中斷。
  • 8 kB數據緩衝。



規格參數

模擬電源電壓 5V/3.3V(DC)
能量消耗 组合正常模式下為 0.9 mA , 1.6 kHz 的组合高性能模式為 1.25 mA
線性加速度測量範圍 ±2 /±4 /±8 /±16g 滿量程(標準值)
角速率測量範圍 ±125, ±245, ±500, ±1000, ±2000 dps(標準值)
線性加速靈敏度 0.061(FS = ±2), 0.122(FS = ±4), 0.244(FS = ±8), 0.488(FS = ±16) mg/LSB
角速率靈敏度 4.375(FS = ±125), 8.75(FS = ±245), 17.50(FS = ±500), 35(FS = ±1000), 70(FS = ±2000)

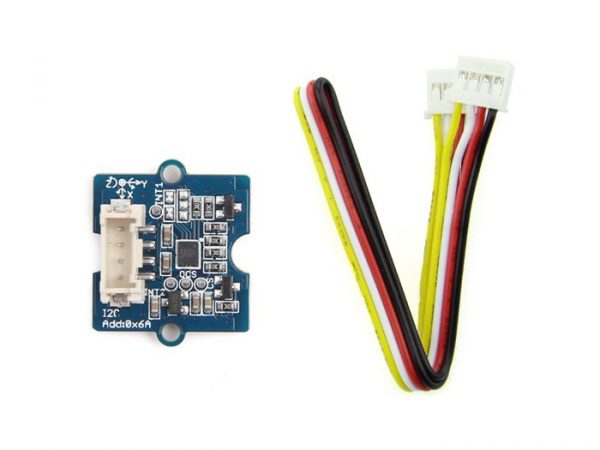

出貨清單

  • Grove – 6-Axis Accelerometer&Gyroscope x1
  • Grove連接線 x1



Documents



=========================================================

Grove – 6-Axis Accelerometer&Gyroscope

Grove – 6-Axis Accelerometer&Gyroscope is a cost-effective Grove sensor integrated with a 3-axis digital accelerometer and a 3-axis digital gyroscope.

With a serious low power consumption digital chip LSM6DS3 and power supply regulator inside, it features high sensitivity, green tech and low noise interference. It can be configured to different sensitivity levels of acceleration and different angular rate measurement range. Provided with detailed SDK, it can make the prototyping process quicker and easier.

This product can be used for different applications for tilt, motion, and tap sensing, such as robotics, IoT devices and consumer electronic devices.

Features

  • Grove interfaced and cost-effective.
  • Digital-output for 6 DOF motion data.
  • ±2/±4/±8/±16 g full scale leaner acceleration sensing range for various environment.
  • ±125, ±245, ±500, ±1000, ±2000 degree per seconds(dps) for angular rate measurement range make it versatile.
  • Detailed SDK for easier programming.
  • Regulated power supply for reliable data to be collected.
  • Programmed interrupts for different event.
  • 8 kbyte data buffering.

Specification

Analog supply voltage: 5V/3.3V(DC)

Power consumption: 0.9 mA in combo normal mode and 1.25 mA in combo high-performance mode up to 1.6 kHz

Linear acceleration measurement range ±2/±4/±8/±16 g full scale (typical value)

Angular rate measurement range ±125, ±245, ±500, ±1000, ±;2000 dps(typical value)

Linear acceleration sensitivity 0.061(FS = ±2), 0.122(FS = ±4), 0.244(FS = ±8), 0.488(FS = ±16) mg/LSB

Angular rate sensitivity 4.375(FS = ±125), 8.75(FS = ±245), 17.50(FS = ±500), 35(FS = ±1000), 70(FS = ±2000)

Platform Seeeduino/Arduino Rasberry Pi LinkIt One Beaglebone

Supported status Supported Supported Supported Supported

Notes If no version number is not represented for a specific platform, it means this product support all versions within this platform. But you will need additional corresponding Grove shield board such asGrove – Base shield v2.
