GAMMA LoRa RF Module Shield for Arduino UNO LoRa RF模組擴展板

商品說明

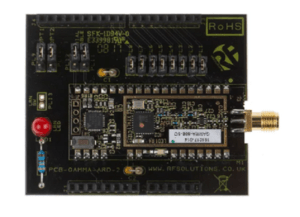

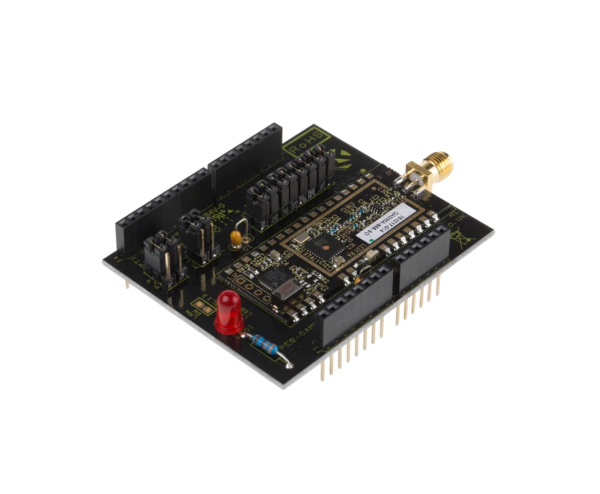

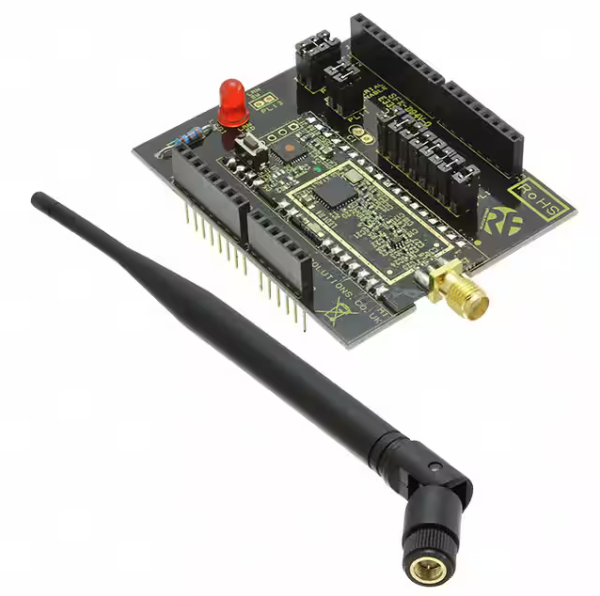

GAMMA LoRa RF Module Shield for Arduino UNO LoRa RF模組擴展板

GAMMA LoRa RF模组擴展板用於連結Arduino開發板和 GAMMA-868 RF模组，擴展板安装於Arduino主板的正上方。

GAMMA-868 module

RF Carrier Frequency: 868MHz ISM Band
RF Power Output: +20dBm
Receiver Sensitivity: -137dBm @ 240bps (SF=12, CR=4/8)
LoRa™ spread-spectrum technology
Range: up to 16Km (line of sight)
Host communication: serial UART with CTS/RTS flow control
8 x GPIO



PART	GAMMA-ARD
TYPE	Arduino
FREQUENCY	868MHz
VCC	5v
MODULATION	FM
O/P	+20dBm
SENSITVITY	-137dBm
PACKAGE	DIL

GAMMA-868 module 相關資料

GAMMA Arduino Rx Sample Code-DOC##

GAMMA Arduino Tx Sample Code-DOC##

GAMMA-ARD-DATASHEET
