Arduino Breakout for LinkIt Smart 7688 Duo 擴展板 網路 USB介面 seeed原廠

商品說明

Arduino LinkIt Smart 7688 Duo 擴充板 網路, USB介面 分線擴充板

LinkIt Smart 7688 Duo 擴展板 是 ArduinoYún 兼容（共享相同的MCU型號）和 LinkItTM Smart 7688 Duo 開發平台 的Grove端口功能 擴展板。這個分線板允許您使用ArduinoYún和LinkIt Smart 7688 Duo的不同功能，這將有助於您基於各種強大和編譯的Arduino草圖構建豐富的應用程序。這種分線板將節省大量工作，並通過簡化佈線使原型設計更容易。所以它有助於初學者快速入門。它支持I2C，UART等串行總線，並提供對LinkItTM Smart 7688 Duo保留原始引腳的訪問。它還配有USB，乙太網。

此外，它還集成了幾個常用的外圍端口，如USB端口，乙太網端口。 LinkIt Smart 7688 Duo（緊湊型控制器板）是一個開放式開發板，基於OpenWrt Linux發行版MT7688和ATmega32u4。該板專門設計用於智能家居的Rich Application IoT設備的原型設計。

擴充 Grove 介面感測器， USB 接口，RJ45 網卡接口

特徵

• 兼容Arduino Shield
• 1個乙太網連接到互聯網
• 1個USB 2.0，適用於更多外圍設備
• Grove接口：I2C×2，模擬接口×3，數字接口×6，UART×1
• 4針調試端口×1，ICSP×1
• 輸入電壓：5.0V（使用USB接口供電）
• 工作電壓：3.3V

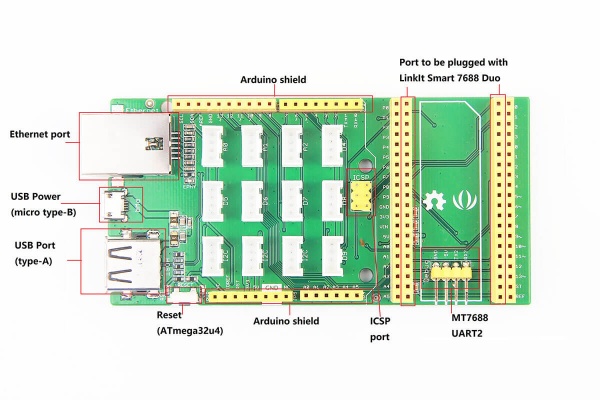

硬件概述

出貨清單

• Arduino Breakout for LinkIt Smart 7688 Duo x1

Documents

• Arduino Breakout for LinkIt Smart 7688 Duo wiki
• Schematic files
• LinkIt Smart 7688 Duo
• OpenWrt

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

Arduino Breakout for LinkIt Smart 7688 Duo

Arduino Breakout for LinkIt Smart 7688 Duo is an Arduino Yún compatible (share the same MCU model) and a Grove port feature expansion board for LinkItTM Smart 7688 Duo development platform. This breakout board allows you to use different features from Arduino Yún and LinkIt Smart 7688 Duo which will help you build rich applications based on various, robust and compiled Arduino sketches. This breakout board will save a lot of work and makes prototyping easier through simplified wiring. So it helps a beginner get a quick start. It supports serial buses like I2C, UART and provides access to reserved original pins of LinkItTM Smart 7688 Duo. It also comes with USB and Ethernet ports.

In addition, it also integrates several frequently used peripheral ports such as USB port, Ethernet port. LinkIt Smart 7688 Duo(a compact controller board) is an open development board, based on the OpenWrt Linux distribution, MT7688 and ATmega32u4. The board is designed especially to enable the prototyping of Rich Application IoT devices for smart house.

Features

• Arduino Shield Compatible,
• 1 x Ethernet to connect to internet
• 1 x USB 2.0 for more peripherals
• Grove interfaces: I2C × 2, Analog × 3, Digital× 6, UART × 1
• 4-pin debug port × 1, ICSP × 1

Application Ideas

• IoT/Gateway Device.
• Robotics
• Smart multimedia devices
• Teaching and learning
