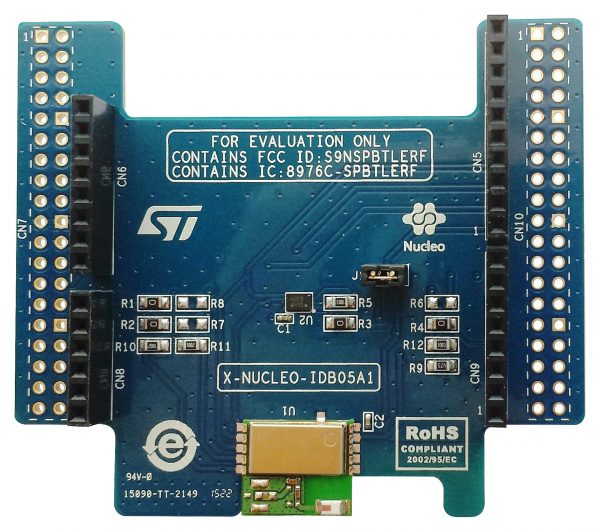

X-NUCLEO-IDB05A1 EXPANSION BOARD, 藍芽擴充板 BLUETOOTH LOW ENERGY

-6%

X-NUCLEO-IDB05A1 EXPANSION BOARD, 藍芽擴充板 BLUETOOTH LOW ENERGY

NT$657 NT$619 未稅

The X-NUCLEO-IDB05A1 is a Bluetooth low energy expansion board based on the SPBTLE-RF module for STM32 Nucleo. The X-NUCLEO-IDB05A1 is a Bluetooth Low Energy evaluation board based on the SPBTLE-RF BlueNRG-MS RF module to allow expansion of the STM32 Nucleo boards. The SPBTLE-RF module is FCC (FCC ID: S9NSPBTLERF) and IC certified (IC: 8976C-SPBTLERF). The X-NUCLEO-IDB05A1 is compatible with the ST Morpho and Arduino UNO R3 connector layout. The X-NUCLEO-IDB05A1 interfaces with the STM32 microcontroller via the SPI pin and the user can change the default SPI clock, the SPI chip select and SPI IRQ by changing one resistor on the evaluation board.

尚有庫存

貨號: X-NUCLEO-IDB05A1(C2-7) 分類: 標籤: , , , , , , ,
  • 商品說明
  • 評論 (0)

商品說明

X-NUCLEO-IDB05A1 EXPANSION BOARD, 藍芽擴充板 BLUETOOTH LOW ENERGY

全新 X-NUCLEO-IDB05A1 意法半導體 原裝進口 藍牙/802.15.1 開發工具Bluetooth low energy expansion board

The X-NUCLEO-IDB05A1 is a Bluetooth low energy expansion board based on the SPBTLE-RF module for STM32 Nucleo. The X-NUCLEO-IDB05A1 is a Bluetooth Low Energy evaluation board based on the SPBTLE-RF BlueNRG-MS RF module to allow expansion of the STM32 Nucleo boards. The SPBTLE-RF module is FCC (FCC ID: S9NSPBTLERF) and IC certified (IC: 8976C-SPBTLERF). The X-NUCLEO-IDB05A1 is compatible with the ST Morpho and Arduino UNO R3 connector layout. The X-NUCLEO-IDB05A1 interfaces with the STM32 microcontroller via the SPI pin and the user can change the default SPI clock, the SPI chip select and SPI IRQ by changing one resistor on the evaluation board.
X-NUCLEO-IDB05A1 原廠產品介紹 http://www.st.com/en/ecosystems/x-nucleo-idb05a1.html
  • STM32 expansion board based on the SPBTLE-RF module for STM32 Nucleo
  • X-NUCLEO-IDB05A1 contains SPBTLE-RF module
  • SPBTLE-RF Bluetooth low energy FCC and IC certified module, integrated balun, chip antenna
  • Compatible with STM32 Nucleo boards
  • Equipped with Arduino UNO R3 connector
  • Scalable solution, capable of cascading multiple boards for larger systems
  • Comprehensive development firmware library, example for BlueNRGMS compatible with STM32Cube firmware
