NUCLEO-F411RE STM32F411RE Mbed 開發板 原裝意法半導體進口 Arduino 相容腳座

-13%

NUCLEO-F411RE STM32F411RE Mbed 開發板 原裝意法半導體進口 Arduino 相容腳座

NT$714 NT$619 未稅

NUCLEO-F411RE STM32F411RE Mbed  開發板 原裝意法半導體進口 Arduino 相容腳座

STM32 Nucleo-64開發板採用STM32F411RE MCU,支持Arduino和ST形態連接。STM32 Nucleo板為用戶提供了一種經濟實惠且靈活的方式,可以從STM32微控制器中嘗試新的概念並構建原型,從性能,功耗和功能的各種組合中進行選擇。Arduino™Uno V3連接支持和ST morpho頭部允許輕鬆擴展STM32 Nucleo開放平台的功能

貨號: 511-NUCLEO-F411RE(C2-4) 分類: , 標籤: , , , , , ,

尚有庫存

  • 商品說明
  • 評論 (1)

商品說明

NUCLEO-F411RE STM32F411RE Mbed  開發板 原裝意法半導體進口 Arduino 相容腳座

STM32 Nucleo-64開發板採用STM32F411RE MCU,支持Arduino和ST形態連接

STM32 Nucleo板為用戶提供了一種經濟實惠且靈活的方式,可以從STM32微控制器中嘗試新的概念並構建原型,從性能,功耗和功能的各種組合中進行選擇。Arduino™Uno V3連接支持和ST morpho頭部允許輕鬆擴展STM32 Nucleo開放平台的功能

可以選擇專門的盾牌。STM32 Nucleo板不需要任何單獨的探頭,因為它集成了ST-LINK / V2-1調試器和編程器。STM32的核蛋白板一起自帶的STM32全面的軟件庫HAL各種套裝軟件的例子,以及直接訪問ARM ® mbed 在http://mbed.org在線資源。

主要特徵

  • STM32微控制器在QFP64封裝中
  • 兩種類型的擴展資源:
    • Arduino Uno V3連接
    • ST morpho擴展引腳頭,可完全訪問所有STM32 I / O
  • ARM ® mbed (見http://mbed.org)
  • 板載ST-LINK / V2-1調試器/帶SWD連接器的編程器:
    • 選擇模式開關將該套件用作獨立的ST-LINK / V2-1
  • 彈性板電源:
    • USB VBUS或外部源(3.3V,5V,7 – 12V)
    • 電源管理接入點
  • 三個LED:
    • USB通信(LD1),用戶LED(LD2),電源LED(LD3)
  • 兩個按鈕:USER和RESET
  • USB重新枚舉功能。USB上支持三種不同的接口:
    • 虛擬COM端口
    • 大容量儲存
    • 調試端口
  • 多種可供選擇的集成開發環境(IDE),包括IAR™,ARM的支持® 基於GCCKeil®,集成開發環境

圖片

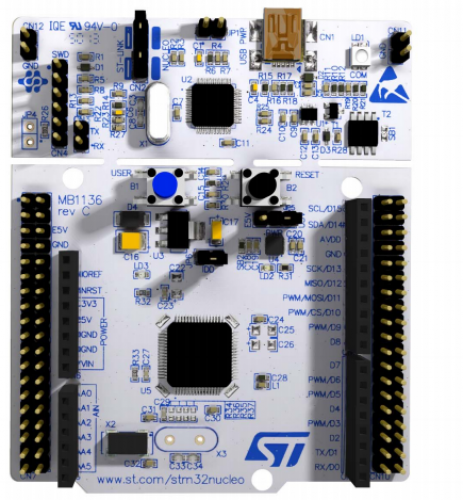

NUCLEO-F411RE

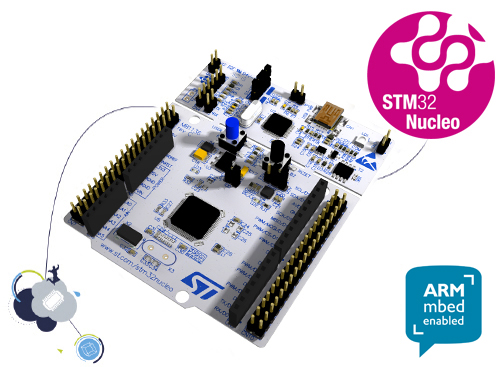

STM32F411RESTM32 Nucleo-64 development board with STM32F411RE MCU, supports Arduino and ST morpho connectivity

The STM32 Nucleo board provides an affordable and flexible way for users to try out new concepts and build prototypes with the STM32 microcontroller, choosing from the various combinations of performance, power consumption and features. The Arduino™Uno V3 connectivity support and the ST morpho headers allow to expand easily the functionality of the STM32 Nucleo open development platform

with a wide choice of specialized shields. The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer. The STM32 Nucleo board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to the ARM®mbedonline resources at http://mbed.org.

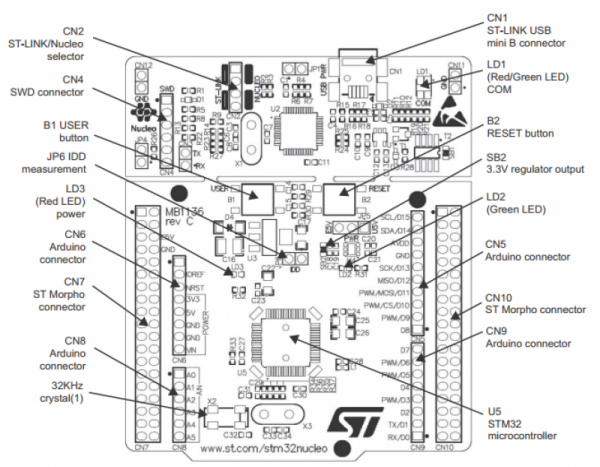

Key Features

  • STM32 microcontroller in QFP64 package
  • Two types of extension resources:

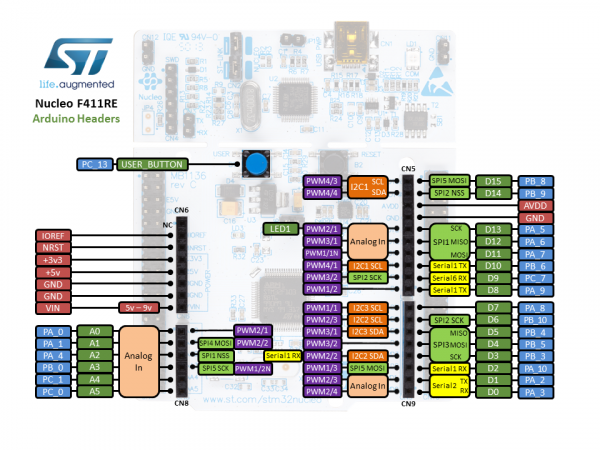

    • Arduino Uno V3 connectivity
    • ST morpho extension pin headers for full access to all STM32 I/Os
  • ARM® mbed (see http://mbed.org)
  • On-board ST-LINK/V2-1 debugger/programmer with SWD connector:
    • Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
  • Flexible board power supply:
    • USB VBUS or external source(3.3V, 5V, 7 – 12V)
    • Power management access point
  • Three LEDs:
    • USB communication (LD1), user LED (LD2), power LED (LD3)
  • Two push-buttons: USER and RESET
  • USB re-enumeration capability. Three different interfaces supported on USB:
    • Virtual COM port
    • Mass storage
    • Debug port
  • Support of wide choice of Integrated Development Environments (IDEs) including IAR™, ARM® Keil®, GCC-based IDEs

Technical Documentation

Product Specifications
Description Version Size
DB2196 DB2196: STM32 Nucleo-64 board 8.0 257 KB
Technical Notes & Articles
Description Version Size
TN1235 TN1235: Overview of the ST-LINK embedded in STM32 MCU Nucleo, Discovery Kits and Eval Boards 1.0 155 KB
User Manuals
Description Version Size
UM1727 UM1727: Getting started with STM32 Nucleo board software development tools 5.0 2 MB
UM1724 UM1724: STM32 Nucleo-64 board 11.0 3 MB

Hardware Resources

Board Manufacturing Specifications
Description Version Size
STM32 Nucleo (64 pins) gerber files 1.0 900 KB
Bill of Materials
Description Version Size
STM32 Nucleo (64 pins) BOM 2.0 192 KB
Schematic Packs
Description Version Size
STM32 Nucleo (64 pins) schematics 1.0 958 KB

Publications and Collaterals

Flyers
Description Version Size
STM32 Nucleo boards 18.0 1 MB
STM32 for makers Releasing your creativity 16.09 1 MB
STM32F401/10/11/12/13 – High-performance Access lines 17.04 1 MB
Brochures
Description Version Size
STM32™ 32-bit MCU family – Leading supplier of ARM® Cortex®-M microcontrollers 18.0 1 MB

Legal

License Agreement
Description Version Size
Evaluation products license agreement 1.3 210 KB
Open Reference Material License Agreement v5 42 KB

Tools and Software
