X-NUCLEO-IDS01A4 STM32 Nucleo 擴展板- SPSGRF-868 無線射頻模組

X-NUCLEO-IDS01A4  STM32 Nucleo 擴展板- SPSGRF-868 RF 無線射頻模組

X-NUCLEO-IDS01A4是ST公司推出的一款針對STM32 Nucleo設計的射頻擴展板,兼容Arduino UNO R3接口,通過SPI和GPIO與MCU進行通信。 採用SPIRIT射頻模塊SPSGRF-868,該模塊工作在868MHz的ISM頻段,集成巴倫與片上天線,通過ETSI認證。ST公司同時也提供了STM32Cube的軟件擴展包X-CUBE-SUBG1,降低了開發門檻,方便用戶在不同MCU系列中進行程序移植。

貨號: X-NUCLEO-IDS01A4 分類: , , , , 標籤: , , , , ,
  • 商品說明

商品說明

X-NUCLEO-IDS01A4  STM32 Nucleo 擴展板- SPSGRF-868 RF 無線射頻模組

X-NUCLEO-IDS01A4 是ST公司推出的一款針對STM32 Nucleo設計的射頻擴展板,兼容Arduino UNO R3接口,通過SPI和GPIO與MCU進行通信。 採用SPIRIT射頻模塊SPSGRF-868,該模塊工作在868MHz的ISM頻段,集成巴倫與片上天線,通過ETSI認證。ST公司同時也提供了STM32Cube的軟件擴展包X-CUBE-SUBG1,降低了開發門檻,方便用戶在不同MCU系列中進行程序移植。

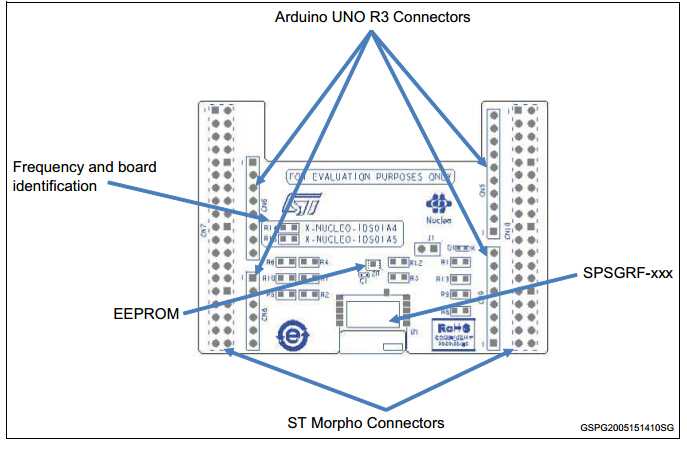

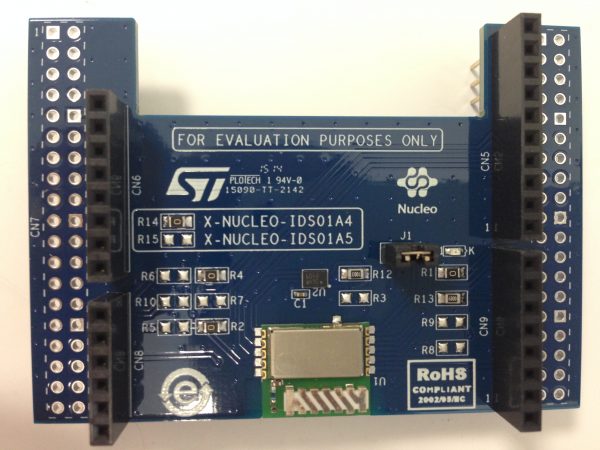

The X-NUCLEO-IDS01A4 is an evaluation board based on the SPIRIT1 RF module SPSGRF-868 expansion of STM32 Nucleo boards. The SPSGRF-868 module operates in the 868 MHz ISM band and is ETSI certified. Identification of the operating frequency of the X-NUCLEO-IDS01Ax (x=4 or 5) is performed through two resistors (R14 and R15). It is compatible with the MORPHO and Arduino UNO R3 connector layout. The X-NUCLEO-IDS01A4 interfaces with the STM32 microcontroller via SPI connections and GPIO pins. The user can change some of the GPIOs by mounting or removing the resistors.

X-NUCLEO-IDS01A4

Key Features

  • STM32 Nucleo expansion board based on the SPSGRF-868
  • SPGRF-868 characteristics:
    • 868 MHz ETSI-certified module based on low power, low data-rate sub-1 GHz SPIRIT1 transceiver
    • Integrated Balun (BALF-SPI-01D3)
    • Chip antenna
  • Compatible with STM32 Nucleo boards
  • Equipped with Arduino UNO R3 connectors
  • Scalable solution; capable of cascading multiple boards for larger systems
  • Example firmware for point-to-point communication, compatible with STM32Cube firmware
  • RoHS compliant
