Wio Terminal Battery Chassis 鋰電池擴充盒 內置650mAH鋰電池 6個Grove接口

商品說明

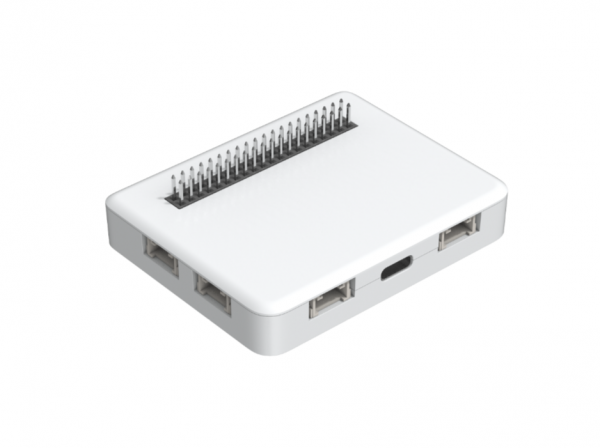

Wio Terminal Battery Chassis 鋰電池擴充盒 內置650mAH鋰電池，帶6個Grove接口

Wio鋰電池擴充盒是Wio開發板的必備擴展板，因為它為Wio終端提供了外部電源，以增強其便攜性和緊湊性。它具有650mAH可充電鋰聚合物電池，4個Grove模擬/數字端口，1個Grove I2C端口和1個Grove UART端口，以及美觀的ABS防護外殼。Wio終端電池機箱的背面也有相同的Raspberry Pi 40引腳兼容GPIO，以提供更多附加組件！

借助Wio終端開發板 + Wio鋰電池擴充盒，您可以輕鬆構建最強大最密集的IoT項目。

特徵：

• 內置650mAh可充電鋰聚合物電池
• USB Type-C充電
• 過流保護
• 打ic模式/打ic保護

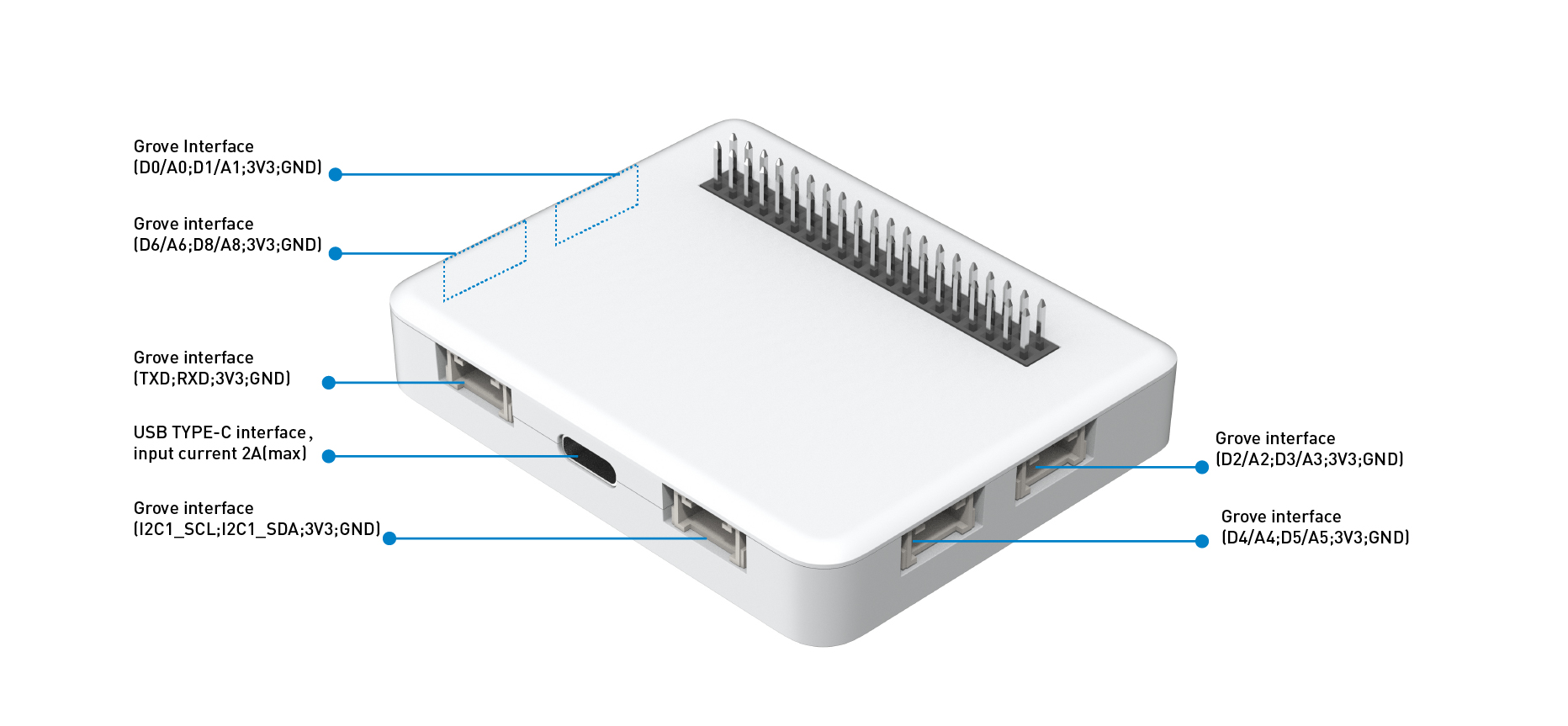

• 4個Grove模擬/數字端口
• 1個Grove I2C端口
• 1個Grove UART端口
• 磁鐵隱藏在外殼內，因此可以將其粘貼在白板上！

引腳圖：

技術指標：

1. Wio鋰電池擴充盒可由USB TYPE-C型接口或內部電池供電。USB Type-C的最大輸入電流為2A，輸入電壓範圍為4.75V〜5.25V。
2. 內置電池是可充電鋰聚合物電池，容量為650mAh。的電池輸出電壓是3.7V，4.2V用的電池充電的電壓。
3. 電池只能通過USB Type-C接口充電，而不能通過母連接器或Grove接口充電。
4. Wio鋰電池擴充盒的待機電流小於300uA。
5. Wio鋰電池擴充盒通過USB Type-C接口供電時具有過流保護，並且過流保護的電流閾值為2.5A。
6. 當Wio鋰電池擴充盒箱在電池供電模式下短路時，它將進入打cup模式。短路消除後，它將自動返回正常電源模式。

預防措施：

• Wio鋰電池擴充盒本身無法輸出3.3V電壓，只能輸出5V電壓。要輸出3.3V，必須與Wio Terminal一起使用。
• 當Wio鋰電池擴充盒從電池充電模式切換到電池電源模式時，會有1.2s的電壓下降時間。
• 默認情況下，當Wio鋰電池擴充盒未連接到USB Type-C時，由電池供電。插入USB Type-C後，它會自動切換到USB Type-C供電。
• 將Wio鋰電池擴充盒插入USB Type-C時，它將為電池和連接器上的RPI_5V引腳供電。此時，電池將無法供電。如果鋰電池未充滿電，則充電至100％後將停止充電。

出貨清單

•  Wio鋰電池擴充盒x1

Documents：

• Wiki
• Wio終端電池機箱原理圖設計文件

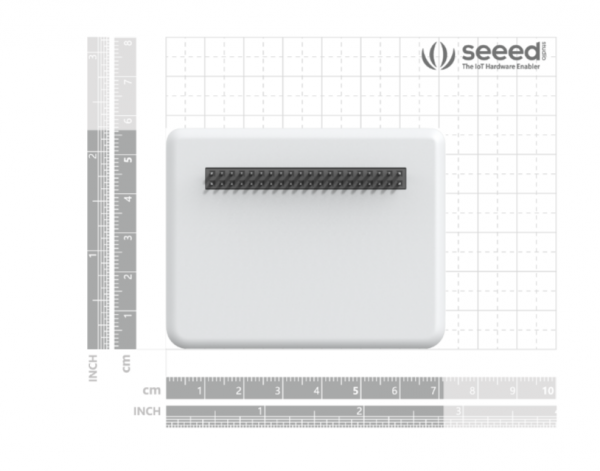

Wio Terminal Chassis – Battery

Description

The Wio Terminal Battery Chassis is a must-have extension board for Wio-Terminal Dev Board as it provides an external power source for Wio Terminal to enhance its portability and compactness. It has a 650mAH rechargeable lithium polymer battery, battery charging/discharging status LED, 4 Grove Analog/Digital Ports, 1 Grove I2C Port, and 1 Grove UART Port, as well as the ABS enclosure for aesthetic and protection. There is also the same Raspberry Pi 40-pin compatible GPIO at the back of the Wio Terminal Battery Chassis for more add-ons!

With Wio-Terminal Dev Board + Wio Terminal Battery Chassis, you are able to build the most powerful and compact IoT projects with no ease. With the extended Grove Ports, you can enjoy the plug and play features of the Grove Ecosystem!

The new version battery board built-in BQ27441-G1A fuel gauge for LiPo batteries.



Feature

• Built-in 650mAh Rechargeable Lithium Polymer Battery
• Battery charging/discharging status LED
• Battery On/OFF Button

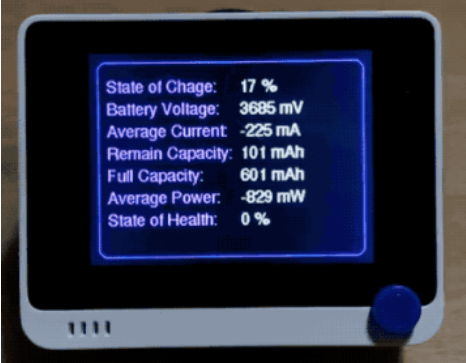

• Built-in BQ27441-G1A fuel gauge for LiPo batteries
• USB Type-C Charging
• Overcurrent protection
• Hiccup mode/Hiccup Protection
• 4 x Grove Analog/Digital Port
• 1 x Grove I2C Port
• 1 x Grove UART Port
• Magnets are hidden inside the enclosure so that it can be stuck on the Whiteboard!

Certifications

• MSDS:Material Safety Data Sheet
• UN38.3: UN38.3 Test Report
• Air/Sea Certification for Safe Transport
• 1.2m Drop Test Report
• RoHS: RoHS Test Report

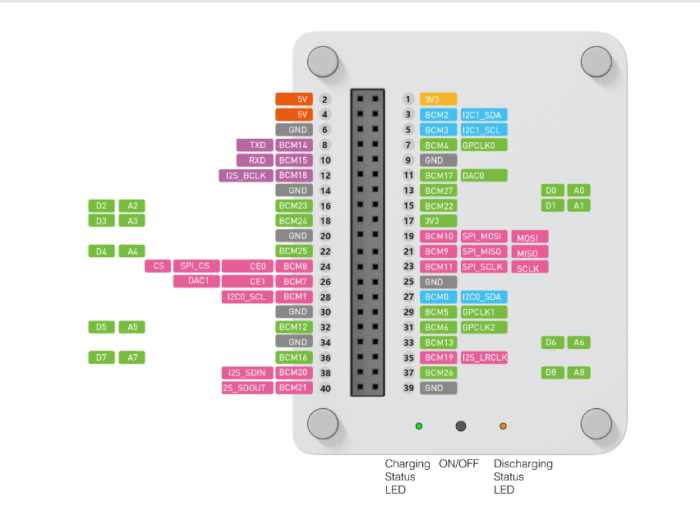

Pinout Diagram



Specifications

Item	Detail
Power Supply	4.75V – 5.25V
Built-in battery	650mAh
Charging current	Max: 660mA
battery board mode	Green LED: Light On is mean the board charing. Red LED: Light on is mean the OTG(battery discharge) enable. Yellow LED: Light on is mean the male interface output/input 5V.
Grove Interface	Grove Analog/Digital * 4, Grove I2C * 1, Grove UART * 1

Precautions

• If the battery is unattached, the chassis will switch to failure mode, and the green light blinks at a frequency of 1Hz.
• Please press the button to let the chassis entering sleep mode for safety consideration, and the LED on the backside of the chassis will go off.

Part List

•  Wio Terminal Battery Chassis
