Teensy 3.2 ARM Cortex-M4 Dev Board SparkFun原廠
- 商品說明
商品說明
Teensy 3.2 ARM Cortex-M4 Dev Board SparkFun 原裝進口
Teensy 3.2 基於ARM Cortex-M4 微控制器開發板。可以使用Arduino的IDE(Teensyduino)的改編版本。它也可以用C語言直接編程。這個完整的基於USB的微控制器開發系統的最新版本現在增加了一個更強大的3.3V穩壓器,以及接受更寬的電壓輸入範圍。該板具有相同的大小,形狀和引腳,以及所有擴展模組完全兼容
特徵
- 32位ARM Cortex-M4 72 MHz CPU(M4 = DSP擴展)
- 256K閃存,64K RAM,2K EEPROM
- 21個高分辨率模擬輸入(13位可用,16位硬件)
- 34個數字I / O引腳(數字輸入上的5V容差)
- 12個PWM輸出
- 7個間隔/延遲定時器,與PWM分開
- 帶專用DMA存儲器傳輸的USB
- 3個UART(串行端口)
- SPI,I 2 C,I2S,CAN總線,IR調製器
- I2S(用於高品質音頻接口)
- 實時時鐘(用戶添加32.768水晶和電池)
- 16個DMA通道(與USB分開)
- 觸摸傳感器輸入
- 1.4 x 0.7“(~35 x 18 mm)
Documents:
- Schematic
- Datasheet (MK20DX256VLH7)
- Teensy Quickstart
- Teensyduino Software
- Pin Assignment Charts
- Using the RTC
- Product Page
=========================================================

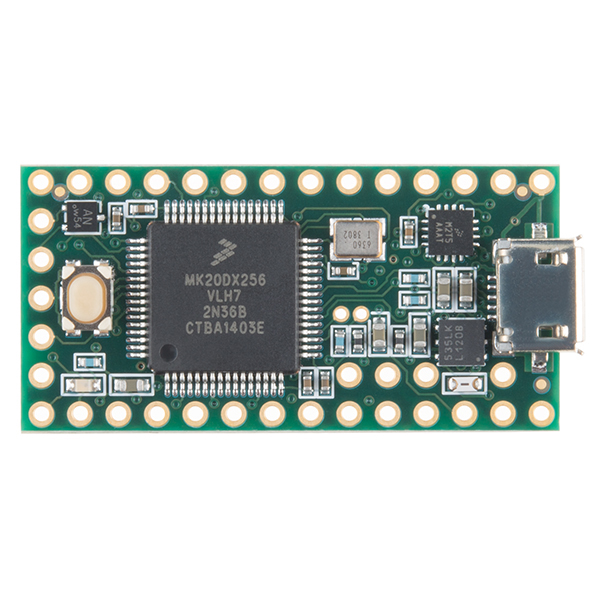

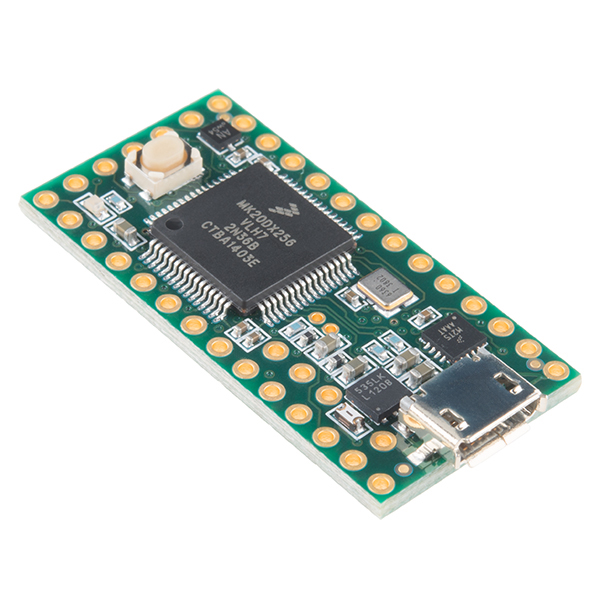

Teensy 3.2
The Teensy 3.2 is a breadboard-friendly development board with loads of features in a, well, teensy package. Each Teensy 3.2 comes pre-flashed with a bootloader so you can program it using the on-board USB connection: No external programmer needed! You can program for the Teensy in your favorite program editor using C or you can install the Teensyduino add-on for the Arduino IDE and write Arduino sketches for Teensy!
The processor on the Teensy also has access to the USB and can emulate any kind of USB device you need it to be, making it great for USB-MIDI and other HID projects. The 32 bit processor brings a few other features to the table as well, such as multiple channels of Direct Memory Access, several high-resolution ADCs and even an I2S digital audio interface! There are also 4 separate interval timers plus a delay timer! Oh yeah, and all pins have interrupt capability. Also, it can provide system voltage of 3.3V to other devices at up to 100mA.

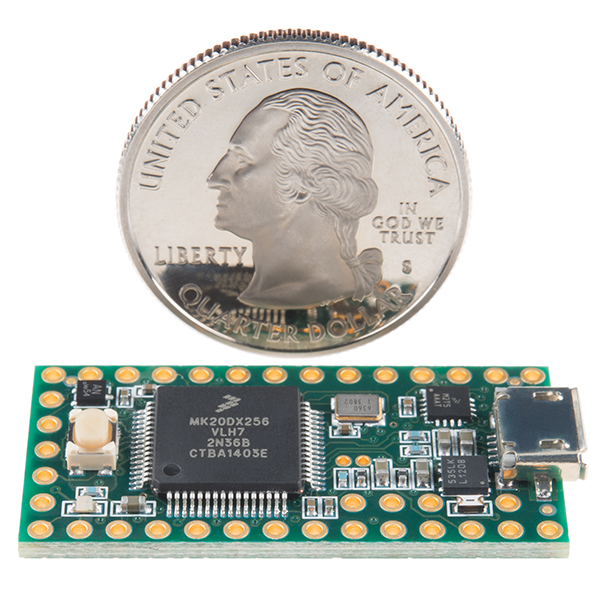

All of this functionality is jammed into a 1.4 x 0.7 inch board with all headers on a 0.1″ grid so you can slap in on a breadboard and get to work! The Teensy 3.2 adds a more powerful 3.3 volt regulator, with the ability to directly power an ESP8266 Wifi, WIZ820io Ethernet, and other 3.3V add-on boards that require a little more power. Additionally, if it is used within the Teensy 3.1 limits of operation, the Teensy 3.2 and 3.1 are interchangeable!
Note: This does not come with a USB cable, please check below for an appropriate one.

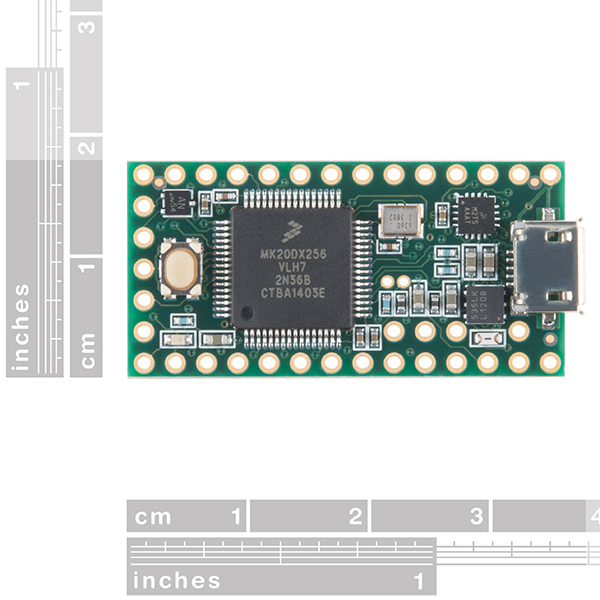

Dimensions: 1.4 x 0.7″ (~35 x 18 mm)
Features
- 32 bit ARM Cortex-M4 72 MHz CPU (M4 = DSP extensions)
- 256K Flash Memory, 64K RAM, 2K EEPROM
- 21 High Resolution Analog Inputs (13 bits usable, 16 bit hardware)

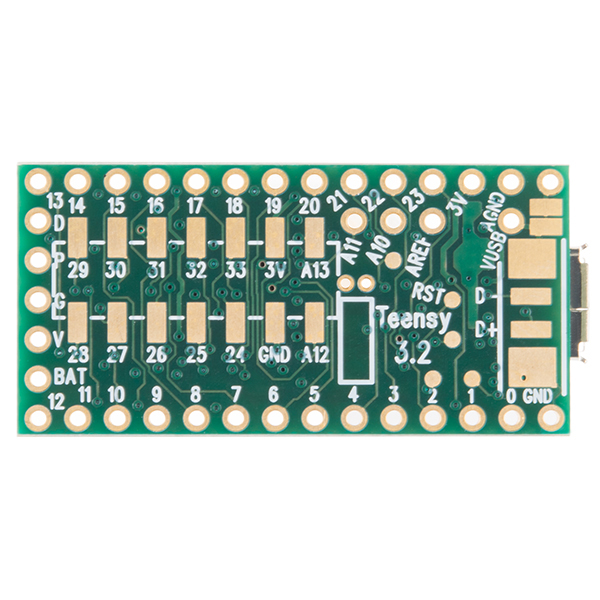

- 34 Digital I/O Pins (5V tolerance on Digital Inputs)
- 12 PWM outputs
- 7 Timers for intervals/delays, separate from PWM
- USB with dedicated DMA memory transfers
- 3 UARTs (serial ports)
- SPI, I2C, I2S,CAN Bus, IR modulator
- I2S (for high quality audio interface)
- Real Time Clock (with user-added 32.768 crystal and battery)
- 16 DMA channels (separate from USB)
- Touch Sensor Inputs
Documents
- Schematic
- Datasheet (MK20DX256VLH7)
- Teensy Quickstart
- Teensyduino Software
- Pin Assignment Charts
- Using the RTC
- Product Page
