SparkFun的 Teensy 3.6 是一個功能豐富的試驗板友好型開發板,由PJRC設計,預裝引導程序。這樣就可以輕鬆使用板載USB連接進行編程,而不需要外部編程器。

  • 商品說明

商品說明

Teensy 3.6 開發板  SparkFun  原裝進口

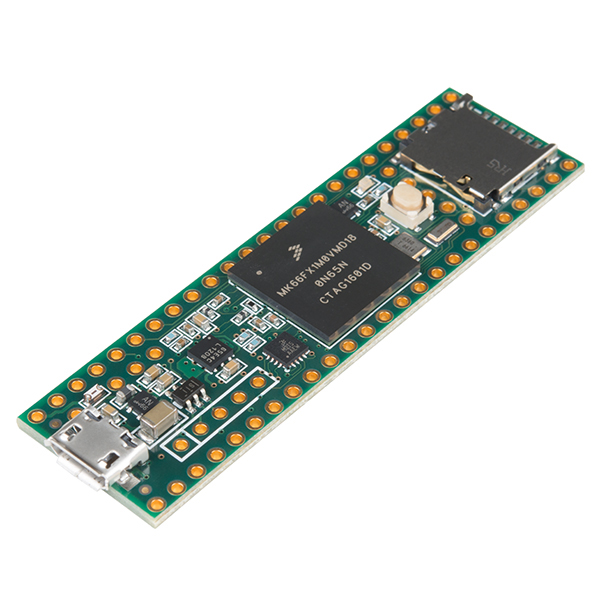

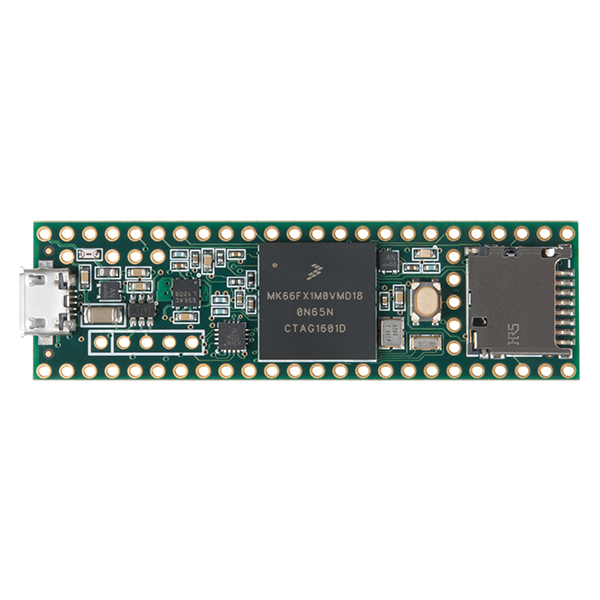

SparkFun 提供PRJC 的 Teensy 3.6、180 MHz、Cortex®-M4F 開發板,帶有Kinetis K66 微控制器

 SparkFun的 Teensy 3.6 是一個功能豐富的試驗板友好型開發板,由PJRC設計,預裝引導程序。這樣就可以輕鬆使用板載USB連接進行編程,而不需要外部編程器。通過安裝Teensyduino附加組件,Teensy可以用C語言或Arduino IDE進行編程。Teensy上的Kinetis K66微控制器還能夠模擬任何類型的USB設備,使其成為USB-MIDI和其他HID項目的理想選擇。32位、180 MHz微控制器還提供多通道直接存儲器訪問、多個高分辨率ADC和I 2 S數字音頻接口。它有四個獨立的間隔定時器,外加一個延遲定時器。所有數字引腳都具有中斷能力,工作在3.3 V邏輯電平。

所有這些功能都包含在62.3 mm x 18.0 mm板上,所有焊點位於均位於0.1″試驗板兼容網格上。該板還提供了一個板載micro SD卡端口。相比上一代Teensy 3.2產品,這一新型“teensy”開發板主要功能包括一個升級的ARM ® Cortex-MCU(72 MHz到180 MHz)和更多存儲器(256 K到1 M),以及更多的RAM、EEPROM和可訪問引腳。 Teensy 3.6是對Teensy 3.5的稍作升級,是Teensy產品線的一個全功能板卡。



特徵

Teensy 3.6 開發板
  • 帶浮點單元的180 MHz ARM Cortex-M4
  • 1 M 閃存,256 K RAM,4 K EEPROM
  • 微控制器芯片MK66FX1M0VMD18
  • USB 高速(480 Mb/s)端口
  • 兩個CAN 總線端口
  • 32 個通用DMA 通道
  • 22 個PWM 輸出
  • 四個I 2 C端口
  • 11 個觸摸感應輸入
  • 62 個I/O 引腳(42 試驗板友好型)
  • 25 個連接兩個ADC 的模擬輸入,具有13 位分辨率
  • 兩個模擬輸出(DAC),具有12 位分辨率
  • USB 全速(12 Mb/s)端口
  • 以太網mac,具有完全100 Mb/s 速度
  • 原生(4 位SDIO)micro SD 卡端口
  • 2 S音頻端口,4通道數字音頻輸入和輸出
  • 14 個硬件定時器
  • 加密加速單位
  • 隨機數發生器
  • CRC 計算單元
  • 六個串行端口(兩個具有FIFO 和快速波特率)
  • 三個SPI 端口(一個帶有FIFO)
  • 實時時鐘

Documents



=========================================================



Teensy 3.6

The Teensy is a breadboard-friendly development board with loads of features in a, well, teensy package. Each Teensy 3.6 comes pre-flashed with a bootloader so you can program it using the onboard USB connection; no external programmer needed! You can program for the Teensy in your favorite program editor using C or you can install the Teensyduino add-on for the Arduino IDE and write Arduino sketches for it!

The processor on the Teensy also has access to the USB and can emulate any kind of USB device you need it to be, making it great for USB-MIDI and other HID projects. The 32-bit, 180MHz processor brings a few other features to the table as well, such as multiple channels of Direct Memory Access, several high-resolution ADCs and even an I2S digital audio interface! There are also four separate interval timers plus a delay timer! Oh yeah, and all digital pins have interrupt capability and are 3.3V tolerant.

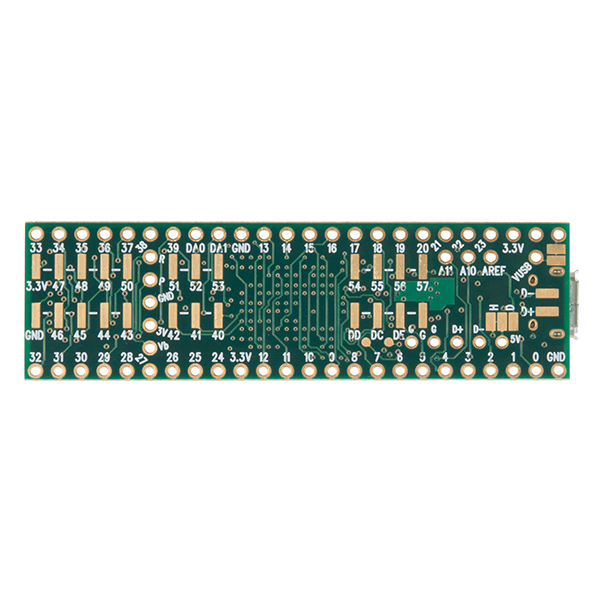

All of this functionality is jammed into a 62.3mm x 18.0mm board with all solder points on a 0.1″ grid so you can slap it on a breadboard and get to work! The Teensy 3.6 (as well as its sibling, the Teensy 3.5) is larger, faster and capable of more complex projects, especially with its onboard micro SD card port. An upgraded ARM Cortex MCU (180MHz from 72MHz), more memory (1M from 256K), as well as more RAM, EEPROM and accessible pins make up the key new features of this “teensy” board. The Teensy 3.6 is slightly scaled up from the Teensy 3.5 but is offered at a higher price point, comparatively.

Dimensions: 62.3mm x 18.0mm x 4.2mm (2.5in x 0.7in x 0.2in)

Features

  • 180 MHz ARM Cortex-M4 with Floating Point Unit
  • 1M Flash, 256K RAM, 4K EEPROM
  • Microcontroller Chip MK66FX1M0VMD18
  • USB High Speed (480Mbit/sec) Port
  • 2 CAN Bus Ports
  • 32 General Purpose DMA Channels
  • 22 PWM Outputs
  • 4 I2C Ports
  • 11 Touch-Sensing Inputs
  • 62 I/O Pins (42 breadboard friendly)
  • 25 Analog Inputs to 2 ADCs with 13-bit resolution
  • 2 Analog Outputs (DACs) with 12-bit resolution
  • USB Full Speed (12Mbit/sec) Port
  • Ethernet mac, capable of full 100Mbit/sec speed
  • Native (4-bit SDIO) micro SD card port
  • I2S Audio Port, 4-Channel Digital Audio Input & Output
  • 14 Hardware Timers
  • Cryptographic Acceleration Unit
  • Random Number Generator
  • CRC Computation Unit
  • 6 Serial Ports (2 with FIFO and Fast Baud Rates)
  • 3 SPI Ports (1 with FIFO)
  • Real-Time Clock
