Teensy++2.0 (AT90USB1286) SpafkFun原廠

NT$1,314 NT$933 未稅

尚有庫存

貨號： DEV-11781(C4-1) 分類： , , 標籤： , , , ,
  • 商品說明

商品說明

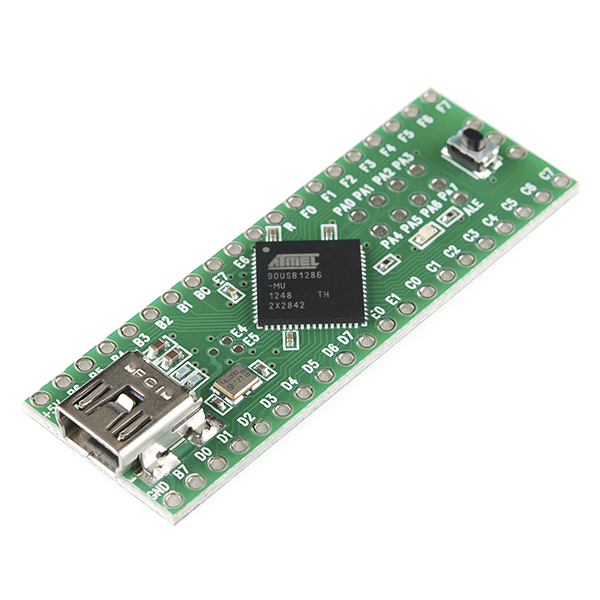

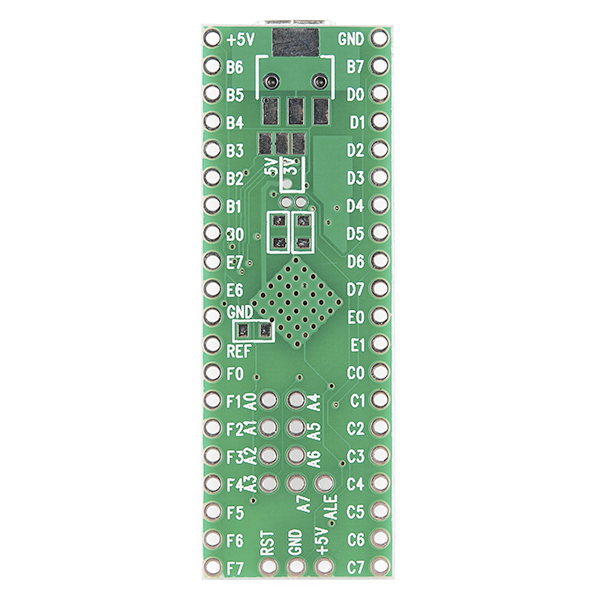

Teensy++ 2.0 (AT90USB1286)

Teensy 是一款很簡易開發板，包含了很多功能。 Teensy++ 2.0 （AT90USB1286）其IO插座更方便連接於麵包板。

Teensy ++內建引導程式，您可以直接使用USB連接對其進行編程，無需外部編程器！ 您可以使用C語言在IDE中編程Teensy，或者安裝Arduino IDE的Teensyduino插件並為Teensy編寫Arduino程式！

Teensy ++ 2.0

商品規格

  • 8-Bit AVR Processor (AT90USB1286)
  • 128K Flash Memory, 8K RAM, 4K EEPROM
  • USB Can Emulate Any Type of Device
  • Single Pushbutton Programming
  • Arduino Compatible
  • 8 Analog Inputs
  • 46 Digital I/O Pins
  • 9 PWM outputs
  • SPI and I2C

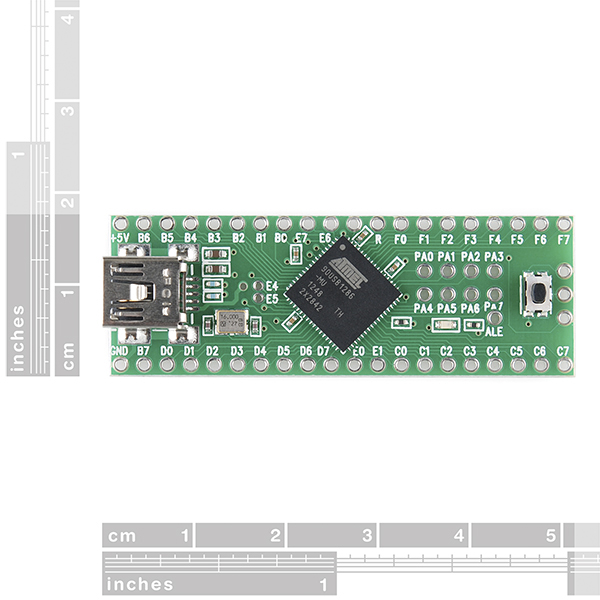

  • 2″ x 0.7″ (50.8 x 17.8 mm)

Documents



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



The Teensy is a breadboard-friendly development board with loads of features in a, well, teensy package. The Teensy++ breaks out all of the IO available on the AT90USB1286 to breadboard-friendly 0.1″ spaced headers so you can hook up a load of peripherals.

The Teensy++ comes pre-flashed with a bootloader so you can program it using the on-board USB connection: No external programmer needed! You can program the Teensy in your favorite IDE using C *or *you can install the Teensyduino add-on for the Arduino IDE and write Arduino sketches for Teensy!

Note: This does not come with a USB cable, please check below for an appropriate one.
