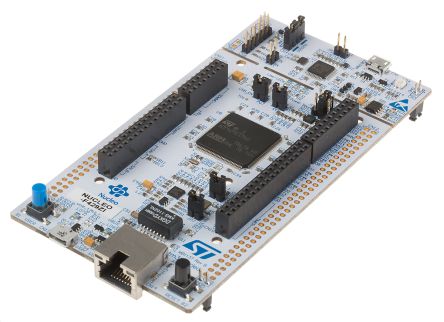

STM32 Nucleo-144 Board F429ZI 2M Flash 開發板


STM32 Nucleo-144 Board F429ZI 2M Flash 開發板

NT$1,219 NT$1,124 未稅


貨號: 511-NUCLEO-F429ZI(C7-8) 分類: , 標籤: ,
  • 商品說明
  • 評論 (0)


STM32 Nucleo-144 Board F429ZI 2M Flash 開發板

STM32 Nucleo-144開發板為用戶使用STM32F429ZIT6系列微控制器構建原型提供了一種經濟高效且靈活的方式。Zio連接器是Arduino Uno的擴展,提供對更多外圍設備的訪問,並且ST morpho標頭通過選擇Shields擴展了功能。

集成的ST-LINK / V2-1調試器/編程器附帶STM32綜合軟件HAL庫,軟件示例,以及直接訪問ARM mbed在線資源。支持多種集成開發環境(IDE),包括IAR,Keil,基於GCC和ARM mbed。

STM32 Nucleo-144 Board F429ZI 2M Flash 開發板


STM32F4系列32位ARM Cortex-M4微控制器,STMicroelectronics

基於ARM Cortex-M4的STM32 F4系列高性能MCU具有DSP和FPU指令,是業界領先的STM32產品系列的延伸,可實現更高的性能。工作頻率高達180 MHz。

高達2個USB 2.0 OTG FS / HS
高達3x 12位ADC
低電壓1.7 V至3.6 V



分類 發展委員會
Name 核心-144
設備核心 ARM Cortex M4F
處理器系列名稱 STM32F4
處理器部件號 STM32F429ZIT6
處理器類型 MCU


  • STM32F429ZIT6 180MHz Cortex-M4F核心微控制器,帶2MB閃存,256KB SRAM
  • LCD-TFT控制器,XGA分辨率高達專用Chrom-ART加速器
  • 8至14位並行攝像頭接口,最高54MB / s
  • 真隨機數發生器
  • CRC計算單元
  • 具有亞秒級精度和硬件日曆的RTC
  • 96位唯一ID
  • 可通過ST Zio連接器完全訪問所有GPIO(支持Arduino Uno v3連接)
  • ST morpho擴展引腳接頭,可訪問所有GPIO
  • 帶SWD連接器的ST-LINK / V2-1調試器/編程器
  • 通過USB連接支持的虛擬COM端口,海量存儲和調試接口
  • 靈活的電路板電源
  • 帶有micro-AB連接器的USB OTG或FS設備
  • 符合IEEE-802.3-2002標準的以太網連接器
  • 3個LED:電源LED,USB通信,用戶LED
  • 用戶和復位按鈕
  • 32.768 KHz晶體振盪器
  • ARM mbed Enabled(mbed。 ORG)


技術手冊 STM32 Nucleo-144 User Manual



NUCLEO-F429ZI Nucleo-144 Development Board

his STM32 Nucleo-144 development board provides a cost-effective and flexible way for users to build prototypes with the STM32F429ZIT6 series microcontroller. The Zio connector, which is an extension of Arduino Uno, provides access to more peripherals and with the ST morpho headers expands the functionality with a choice of Shields.

The integrated ST-LINK/V2-1 debugger/programmer comes with the STM32 comprehensive software HAL library, software examples, as well as direct access to the ARM mbed on-line resources. Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based and ARM mbed.

Features and benefits

  • STM32F429ZIT6 180MHz Cortex-M4F core microcontroller with 2MB Flash memory, 256KB SRAM
  • LCD-TFT controller up to XGA resolution with dedicated Chrom-ART Accelerator
  • 8- to 14-bit parallel camera interface up to 54MB/s
  • True random number generator
  • CRC calculation unit
  • RTC with subsecond accuracy and hardware calendar
  • 96-bit unique ID
  • Full access to all GPIO with ST Zio connector (Arduino Uno v3 connectivity support)
  • ST morpho extension pin headers for access to all GPIO
  • ST-LINK/V2-1 debugger/programmer with SWD connector
  • Virtual COM port, mass storage and debug interfaces supported via USB connection
  • Flexible board power supply
  • USB OTG or FS Device with micro-AB connector
  • IEEE-802.3-2002 compliant Ethernet connector
  • 3 x LEDs: Power LED, USB communication, User LED
  • User and Reset pushbuttons
  • 32.768 KHz crystal oscillator
  • ARM mbed Enabled (

STM32F4 Series 32-Bit ARM Cortex-M4 Microcontrollers, STMicroelectronics

The ARM Cortex-M4 based STM32 F4 series of high-performance MCUs with DSP and FPU instructions is an extension of the industry-leading STM32 portfolio towards even higher performance. Up to 180 MHz operating frequency.

Up to 2x USB 2.0 OTG FS/HS
SDIO (Secure Digital Input Output)
I²S (Inter-IC Sound) + Audio PLL
16 and 32 Bit Timers
Up to 3x 12-Bit ADC
Low Voltage 1.7 V to 3.6 V
