Sipeed Maixduino Kit for RISC-V AI + IoT

Maixduino基於MAIX模塊,是用於AI + IoT應用的RISC-V 64開發板。與其他  Sipeed MAIX dev不同。主板,Maixduino採用Arduino Uno外形設計,板載ESP32模塊和  MAIX AI模塊。

Maixduino介紹

特徵

  • CPU:RISC-V雙核64位,帶FPU; 400MHz神經網絡處理器
  • CPU:RISC-V雙核64位,帶FPU; 400MHz神經網絡處理器
  • QVGA @ 60FPS / VGA @ 30FPS圖像識別
  • 板載ESP32模塊支持2.4G 802.11。b / g / n和藍牙4.2
  • Arduino Uno外形,Arduino兼容接口
  • 板載全向I2S數字輸出MEMS麥克風
  • 用於DVP相機的24P 0.5mm FPC連接器
  • 8位MCU LCD 24P 0.5mm FPC連接器
  • 支持自彈式micro SD卡座
  • 重置和啟動按鈕; 3W DAC + PA音頻輸出
  • 只需連接USB Type-C電纜即可完成下載
  • 基於卷積神經網絡的機器視覺
  • 用於機器聽力的高性能麥克風陣列處理器
  • 支持MaixPy IDE,Arduino IDE,OpenMV IDE和PlatformIO IDE
  • 支持Tiny-Yolo,Mobilenet和TensorFlow Lite進行深度學習



MAIX是Sipeed專門設計的產品系列,專為在邊緣運行AI而設計。將AI模型從雲端移動到網絡邊緣的設備,在這些設備上運行速度更快,成本更低,隱私性更高。

MAIX不僅僅是一個硬件解決方案,它結合了定制硬件,開放軟件和最先進的AI算法。不同種類的開發。板,套件,外圍設備以及廣泛的兼容性使得快速和靈活的原型開發成為可能,使AIoT項目變得更加容易。由於MAIX的性能,佔地面積小,功耗低,成本低,因此可以廣泛部署高質量的Edge AI。

應用

智能家居   應用,如機器人清潔器,智能揚聲器,電子門鎖,家庭監控等。

醫療行業   應用,如輔助診斷和治療,醫學圖像識別,緊急報警等。

智能工業   應用,如工業機械,智能分揀,電氣設備監控等。

教育機器人,智能互動平台,教育效率檢查等 教育 應用

農業   應用,如農業監測,病蟲害監測,自動控制等。

規格

主模塊 Sipeed MAIX-I AIoT模塊
電源輸入 USB Type-C
DC-DC降壓電路:支持6-12V輸入;提供5V 1.2A輸出
Micro SD卡(TF卡)插槽 支持自彈性卡片夾
板載MEMS麥克風 MSM261S4030H0是一款全向,底部端口,I2S數字輸出MEMS麥克風。它具有高性能和可靠性。
DVP攝像頭接口 24P 0.5mm FPC連接器
LCD連接器 8位MCU LCD 24P 0.5mm FPC連接器
音頻輸出 DAC + PA:
TM8211:16位動態範圍;低諧波失真
NS4150:3W輸出功率;效率高達90%;
ESP32模塊 支持2.4G 802.11.b / g / n
802.11n(2.4 GHz)速率高達150 Mbps
藍牙v4.2全標準,包括傳統藍牙(BR / EDR)和藍牙低功耗(BLE)
外部電源的供電電壓 4.8V~5.2V
供電電源外接電源 >600毫安
溫度上升 <30K
工作溫度範圍 -30℃~85℃
MCU:ESP8285 Tensilica L106 32位MCU
無線標準 802.11 b / g / n
頻率範圍 2400Mhz – 2483.5Mhz
TX Power(傳導測試) 802.11.b:+ 15dBm
802.11.g:+ 10dBm(54Mbps)
802.11.n:+ 10dBm(65Mbps)
天線連接器 IPEX 3.0×3.0mm
Wi-Fi模式 站/軟AP /軟AP +站

出貨清單

  • Maixduino dev板 x1
  • OV2640相機模塊 x1
  • 2.4英寸TFT顯示屏 x1



Documents



=========================================================



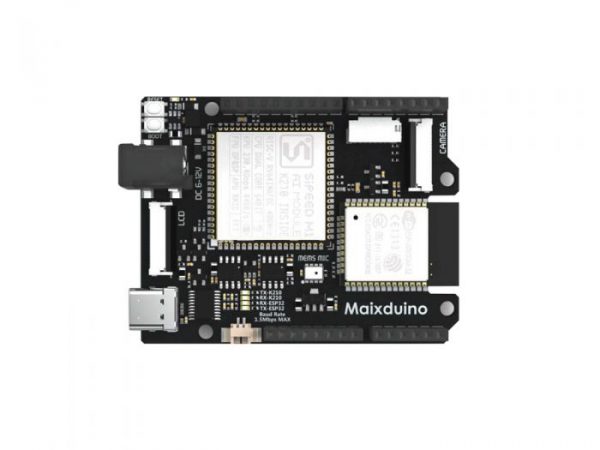

Sipeed Maixduino Kit for RISC-V AI + IoT

Based on MAIX Module, the Maixduino is a RISC-V 64 development board for AI + IoT applications. Different with other Sipeed MAIX dev. boards, Maixduino was designed in an Arduino Uno form factor, with ESP32 module on board together with MAIX AI module.

Features

CPU: RISC-V Dual Core 64bit, with FPU; 400MHz neural network processor

QVGA@60FPS/VGA@30FPS image identification

Onboard ESP32 module support 2.4G 802.11. b/g/n and Bluetooth 4.2

Arduino Uno form factor, Arduino compatible interface

Onboard omnidirectional I2S digital output MEMS Microphone

24P 0.5mm FPC connector for DVP Camera

8bit MCU LCD 24P 0.5mm FPC connector

Support self-elastic micro SD card holder

Reset and boot button; 3W DAC+PA Audio output

Just connect the USB Type-C cable to complete the download

Machine vision based on convolutional neural network

High performance microphone array processor for machine hearing

Support MaixPy IDE, Arduino IDE, OpenMV IDE, and PlatformIO IDE

Support Tiny-Yolo, Mobilenet and TensorFlow Lite for deep learning



MAIX is Sipeed’ s purpose-built product series designed to run AI at the edge. Move AI models from cloud down to devices on the edge of the network where they can run faster, at lower cost, and with greater privacy.

MAIX isn’t just a hardware solution, it combines custom hardware, open software, and state-of-the-art AI algorithms. Different kinds of dev. boards, kits, peripherals as well as wide compatibility enable rapid and agile prototype development, make AIoT projects much easier. And thanks to MAIX’ s performance, small footprint, low power, and low cost, it enables the broad deployment of high-quality Edge AI.

Applications

Smart Home  applications like robot cleaners, smart speakers, electronic door locks, household monitoring etc.

Medical Industry  applications like Auxiliary diagnosis and treatment, medical image recognition, emergency alarm etc.

Smart Industry  applications like industrial machinery, intelligent sorting, monitoring of electrical equipment, etc.

Education  applications like educational robots, intelligent interactive platforms, educational efficiency inspection, etc.

Agriculture  applications like agricultural monitoring, pest and disease monitoring, automated control, etc.

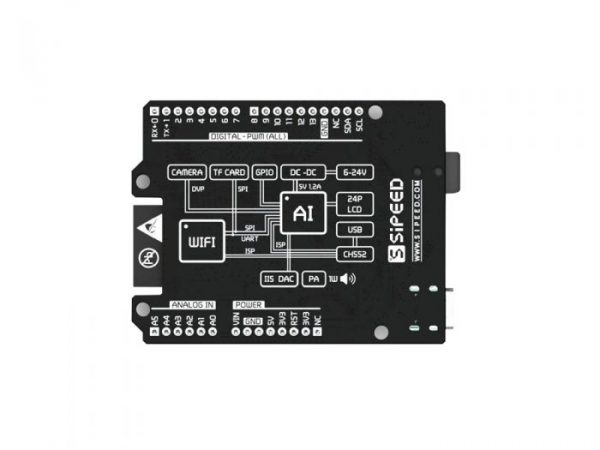

Specification

Master module Sipeed MAIX-I AIoT module
Power input USB Type-C
DC-DC step-down circuit:support 6-12V input;Provide 5V 1.2A output
Micro SD card(TF card) slot Support Self-elastic card holder
Onboard MEMS microphone MSM261S4030H0 is an omnidirectional, Bottom-ported, I2S digital output MEMS Microphone. It has high performance and Reliability.
DVP Camera interface 24P 0.5mm FPC connector
LCD connector 8bit MCU LCD 24P 0.5mm FPC connector
Audio output DAC+PA:
TM8211:16 bit dynamic range;Low harmonic distortion
NS4150:3W output power;Up to 90% efficiency;
ESP32 module Support 2.4G 802.11.b/g/n
802.11 n (2.4 GHz) speeds up to 150 Mbps
Bluetooth v4.2 full standard, including traditional Bluetooth (BR/EDR) and Bluetooth Low Energy (BLE)
Supply voltage of external power supply 4.8V ~ 5.2V
Supply current of external power supply >600mA
Temperature rise <30K
Range of working temperature -30℃ ~ 85℃
MCU: ESP8285 Tensilica L106 32-bit MCU
Wireless Standard 802.11 b/g/n
Frequency Range 2400Mhz – 2483.5Mhz
TX Power(Conduction test) 802.11.b : +15dBm
802.11.g : +10dBm(54Mbps)
802.11.n : +10dBm (65Mbps)
Antenna Connector IPEX 3.0×3.0mm
Wi-Fi mode Station/SoftAP/SoftAP+Station

Part List

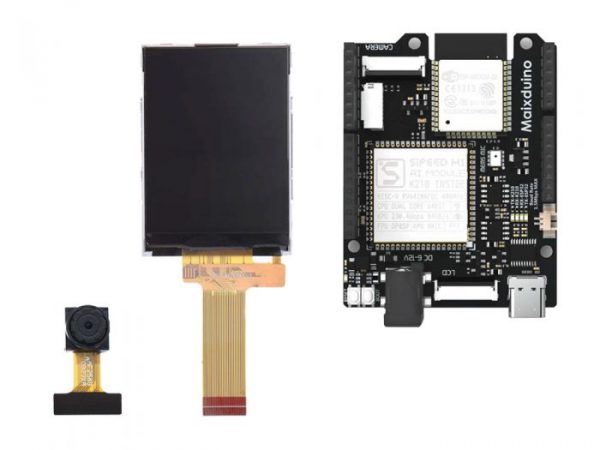

1 x Maixduino dev. board

1 x OV2640 camera module

1 x 2.4 inch TFT Display
