Grove-RS485串列通信模組 相容Arduino seeed原廠

商品說明

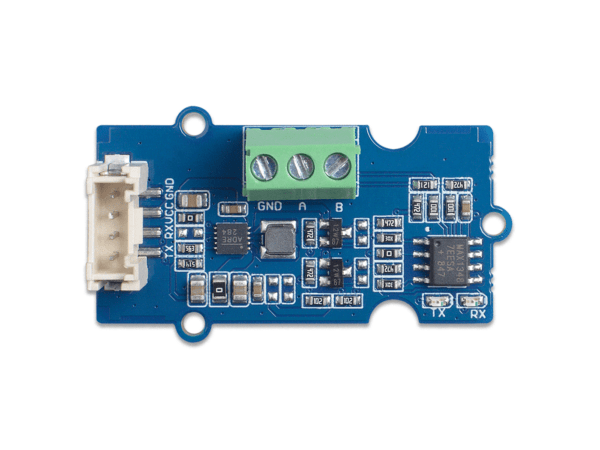

Grove – RS485串列通信模組 相容Arduino

Grove RS-485 讓您的 Arduino 輕鬆連接 RS-485 設備，您只需要即插即用。

RS485 是串行通信中具有成本效益的解決方案，它可以用於 10Mbit/s 的數據速率或以較低的速度傳輸高達 1200m 的距離。



特徵

• 供電電壓：3.3V / 5V
• 介面：UART
• 資料信號速率：高達10Mbit /s



硬件概述

Documents

• Grove – RS485 原理圖文件
• Max13478E 數據表
• https://wiki.seeedstudio.com/Grove-RS485/



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

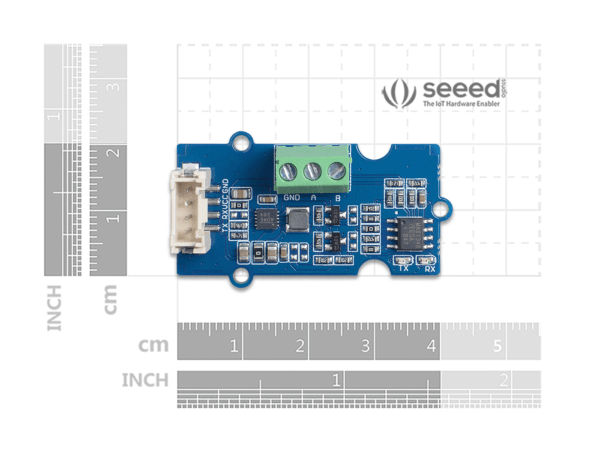

Grove – RS485

The Grove RS-485 allows your Arduino connect with RS-485 device easily, you just need to plug and play.

RS485 is cost-effective solution in serial communication, it can be used to data rate at 10Mbit/s or distance up to 1200m at lower speed.

Features

• Supply voltage: 3.3V/5V
• Interface: UART
• Data Signaling Rate: Up to 10Mbit/s
