Piezo Vibration Sensor – Small Vertical 垂直接角壓電振動感測器 SparkFun原廠

商品說明

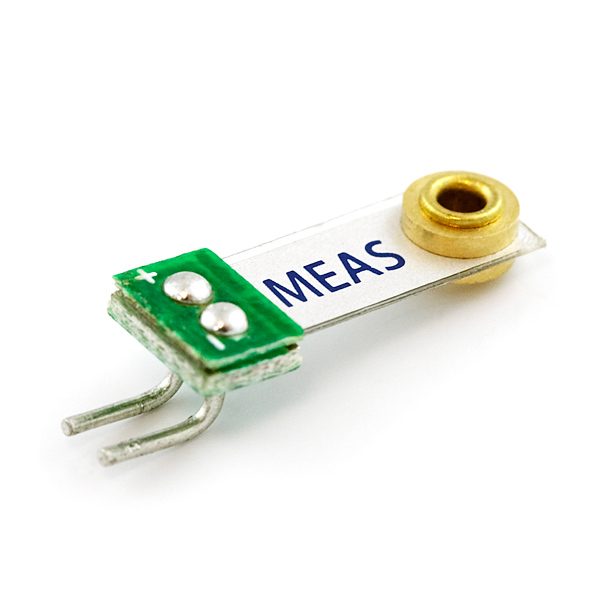

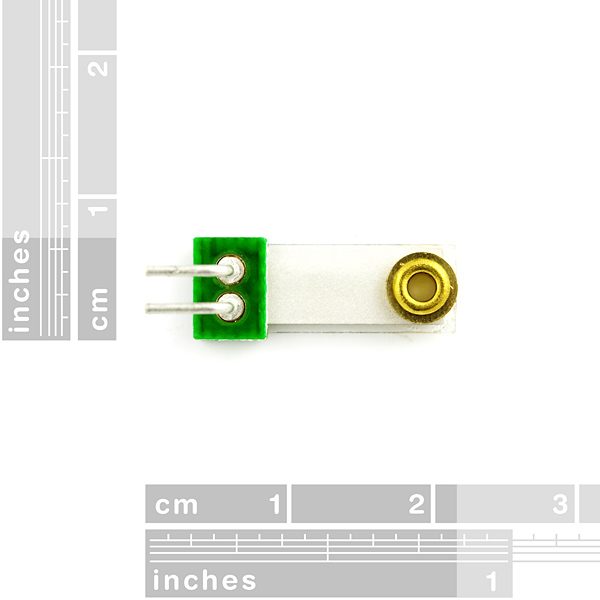

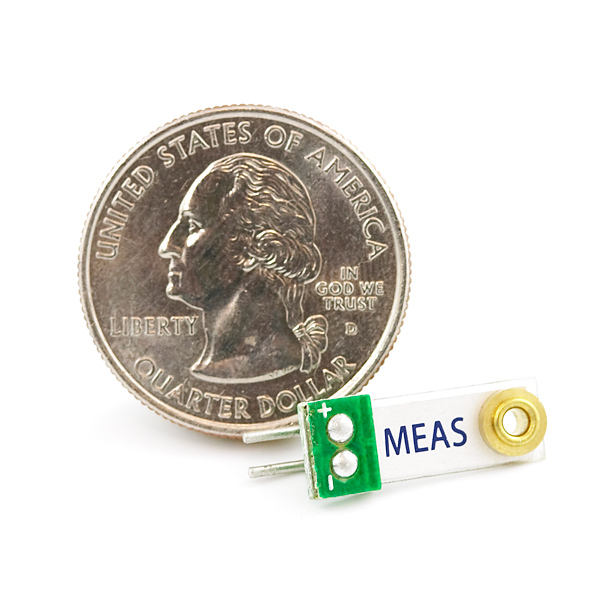

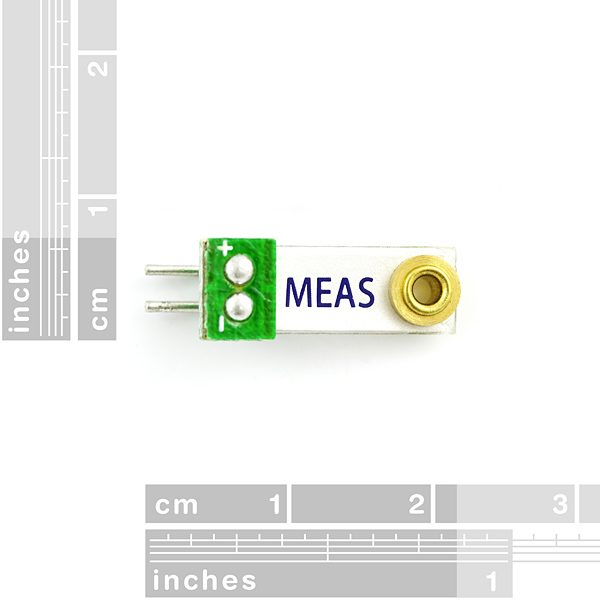

Piezo Vibration Sensor – Small Vertical 垂直接角 壓電振動 感測器

Measurement Specialties的Minisense 100是一款低成本的懸臂式振動傳感器，通過質量負載，在低頻時提供高靈敏度。 用於檢測用戶的振動和“敲擊”輸入。 當膠片向後移動時，會產生一個小AC和大電壓（高達+/- 90V）。 一個簡單的電阻應該使電壓降到ADC電平。 也可用於衝擊感應或靈活開關。

帶有允許垂直安裝的焊接引腳。

特徵

• 柔性PVDF壓電聚合物薄膜
• 寬動態範圍
• 層壓更高的電壓輸出
• 方便插于麵包板

Documents

• 數據表
• 技術手冊



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



Piezo Vibration Sensor – Small Vertical

The Minisense 100 from Measurement Specialties is a low-cost cantilever-type vibration sensor loaded by a mass to offer high sensitivity at low frequencies. Useful for detecting vibration and ‘tap’ inputs from a user. A small AC and large voltage (up to +/-90V) is created when the film moves back an forth. A simple resistor should get the voltage down to ADC levels. Can also be used for impact sensing or a flexible switch.

Comes with solder pins that allows for vertical mounting.

Features:

• Flexible PVDF Piezo Polymer Film
• Wide dynamic range
• Laminated for higher voltage output
• Breadboard friendly leads
