Grove – Water Atomization V1.0 超音波水霧化模組 seeed原廠

商品說明

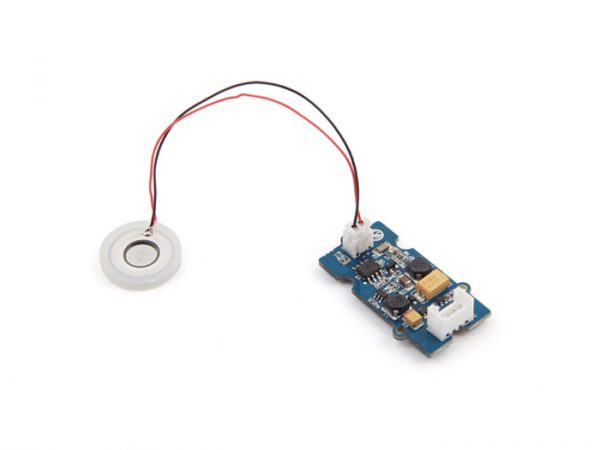

Grove Water Atomization 超音波水霧化模組 (需搭配開發板使用，非隨插即用商品)

Grove – Water Atomization是您在應用中輕鬆開發霧化器或霧化器模塊的完美模塊。只需幾個簡單的步驟，您就可以對霧化器進行原型設計。它具有Grove接口，可以輕鬆集成到大量應用程序中。加濕器是可以構建的基本設備，您可以使用數字香味技術和任何其他需要霧化的情況開發更先進和有趣的項目。





特徵

• 超音波加熱模式
• 5V 工作電壓
• 最大功率 2W
• Grove 模組化設計





應用理念

• 加濕器
• 不同情況下的香味發射器
• 適用於智能家居應用



規格參數

工作電壓	5.0V（DC）
波紋（最大功率）	≤100mV
最大功率	2W
峰值輸出電壓	65±5V
運行頻率	105±5kHz
芯片	ETA1617，NE555

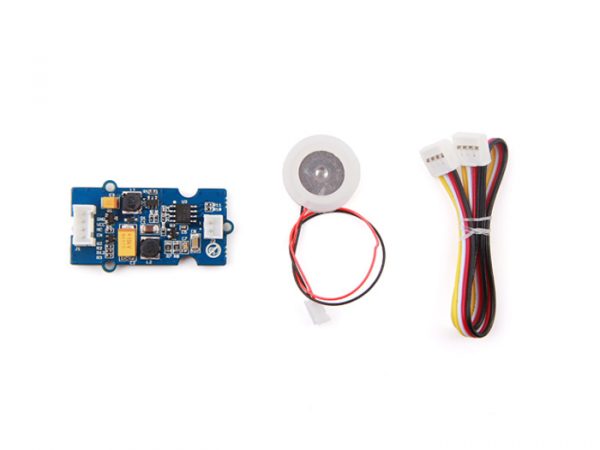

出貨清單

• Grove – 水霧化模組 x1
• 超音波感測器 x1
• Grove連接線 x1





Documents

• Grove – Water Atomization v1.0 wiki



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



Grove – Water Atomization v1.0

Grove – Water Atomization is a perfect module for you to develop an atomizer or an atomizer module in your applications easily. With just a few simple steps, you can prototype an atomizer. It has Grove interface which makes it easy to be integrated into plenty of applications. A humidifier is a basic device it can be built with, you can develop more advanced and interesting projects with digital scent technology and any other situations in which atomization required.

Features

• Heated with ultrasound
• Easy to prototype
• Well applied to vast projects
• For various interesting, smart and fashionable applications

Application ideas

• Humidifier
• Scent emitter in different situations
• For smart-house applications

Specification

Operating voltage	5.0V(DC)
ripple(at Max power)	≤100 mV
Max power	2W
peak output voltage	65±5V
Operating frequency	105±5kHz
Chip	ETA1617、NE555
