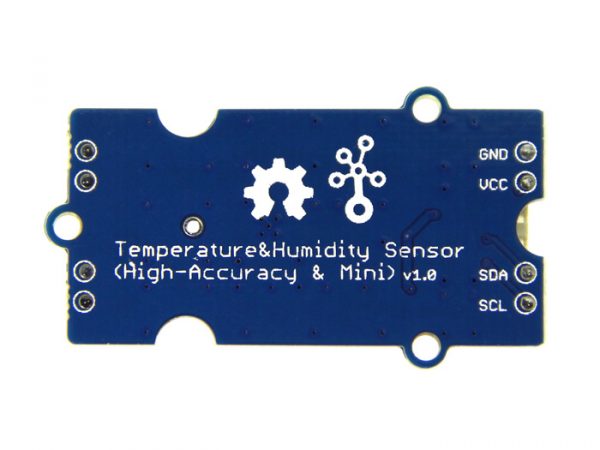

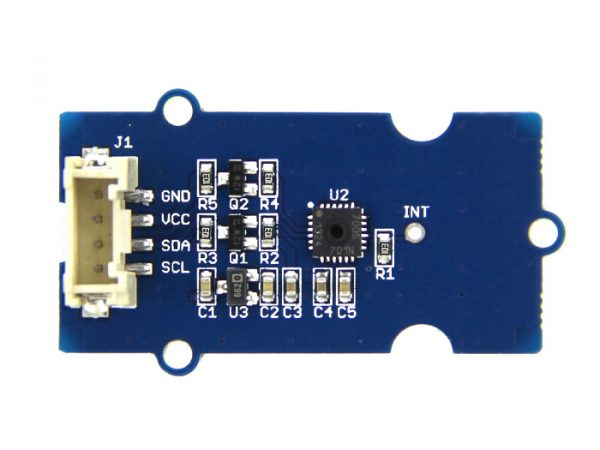

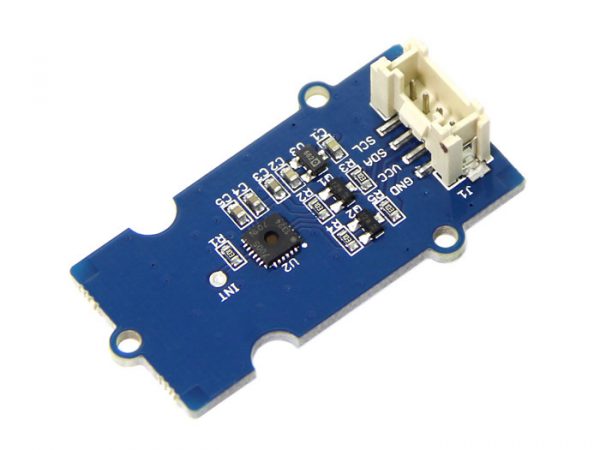

Grove – Temperature & Humidity Sensor (High-Accuracy & Mini) 高精度迷你溫濕度感測器 seeed原廠

商品說明

Grove – Temperature & Humidity Sensor  High-Accuracy & Mini I2C 通訊方式

Grove – Temperature & Humidity Sensor 是一款多功能傳感器，可同時為您提供溫度和相對濕度信息。 它採用TH02傳感器，可滿足一般用途的測量需求。 當環境濕度條件在0-80％RH之間，溫度條件在0-70°C之間時，它提供可靠的讀數，滿足大多數家庭和日常應用中不需要極端條件的需求。

規格參數

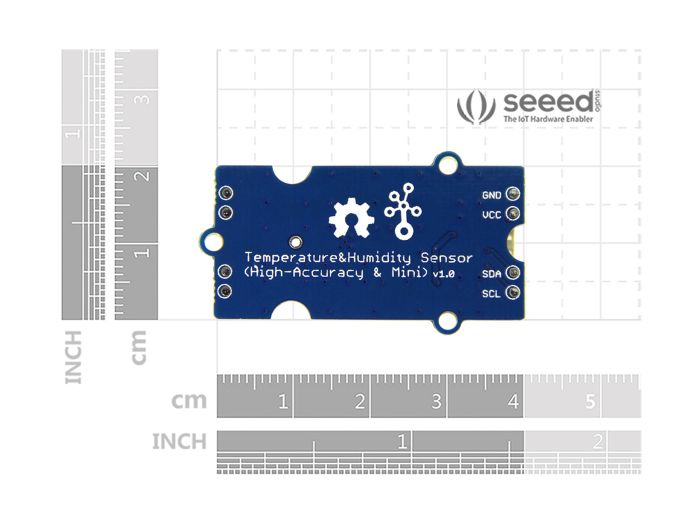

外形尺寸	20mm x 40mm
重量	GW 9g
電源電壓	3.3V~5V
電流消耗	RH轉換期間為350μA
工作範圍	0至100％RH
測量範圍	濕度：0％ – 80％RH溫度：0〜70°C
溫度準確性	±4.5％RH
濕度準確性	±0.5°C
通訊接口	I2C





出貨清單

• Grove – Temperature & Humidity Sensor (High-Accuracy & Mini) x1
• Grove連接線 x1



Documents

• Grove-TemptureAndHumidity Sensor-High-Accuracy AndMini-v1.0 wiki
• TH02_SENSOR.pdf
• Grove_Temper_Humidity_TH02庫
• Grove – 溫度和濕度傳感器（高精度和小型）V1.0 sch pcb



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



Grove – Temperature&Humidity Sensor (High-Accuracy & Mini)

This is a multifunctional sensor that gives you temperature and relative humidity information at the same time. It utilizes a TH02 sensor that can meet measurement needs of general purposes. It provides reliable readings when environment humidity condition inbetween 0-80% RH, and temperature condition inbetween 0-70°C, covering needs in most home and daily applications that don’t contain extreme conditions.

Specification

• Wide operating voltage range:(3.3V ~ 5V)
• Low Power Consumption:350 µA during RH conversion
• 0 to 100% RH operating range
• Measuring Range:
• Humidity: 0% – 80% RH Temperature: 0 ~ 70 °C
• Accuracy:
• Humidity: ±4.5% RH
• Temperature: ±0.5°C
• ŸI2C host interface
• Excellent long term stability
