Grove Shield for micro:bit 擴展板 銜接 Grove 系列感測器


Grove Shield for micro:bit 擴展板 銜接 Grove 系列感測器

NT$333 NT$310 未稅

Grove Shield for micro:bit 擴展板 銜接 Grove 系列感測器

micro:bit 是一款口袋大小的微控制器,專為兒童和初學者學習如何編程,讓他們輕鬆將想法引入DIY數字遊戲,互動項目和機器人。Micro:bit的Grove擴展板是一個用於微處理器的即插即用Grove擴展板:擴展層作為微型橋接器和我們的Grove系統,其提供了數百種不同的Grove模塊,包括傳感器,執行器,通信,顯示等,這將擴大微:輕鬆快捷地創造更多項目的能力。


貨號: 103030195(A5-12) 分類: , , 標籤: ,
  • 商品說明
  • 評論 (0)


Grove Shield for micro:bit 擴展板 銜接 Grove 系列感測器

micro:bit 是一款口袋大小的微控制器,專為兒童和初學者學習如何編程,讓他們輕鬆將想法引入DIY數字遊戲,互動項目和機器人。Grove Shield for micro:bit  擴展板是一個用於微處理器的即插即用 Grove 擴展板:擴展層作為微型橋接器和我們的Grove系統,其提供了數百種不同的Grove模塊,包括傳感器,執行器,通信,顯示等,這將擴大微:輕鬆快捷地創造更多項目的能力。


Grove Shield for micro:bit 擴展板

micro:bit is a pocket-sized microcontroller designed for kids and beginners learning how to program, letting them easily bring ideas into DIY digital games, interactive projects and robotics. The Grove shield for micro:bit is a plug-and-play grove extension board for micro:bit, the shield acts as a bridge for micro:bit and our grove system, which provides hundreds of different grove modules including sensor, actuator, communication, display etc. that will broaden micro:bit’s ability in creating more projects easily and quickly.

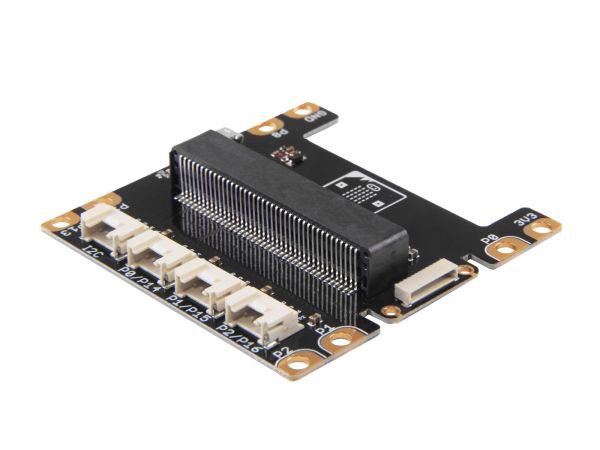

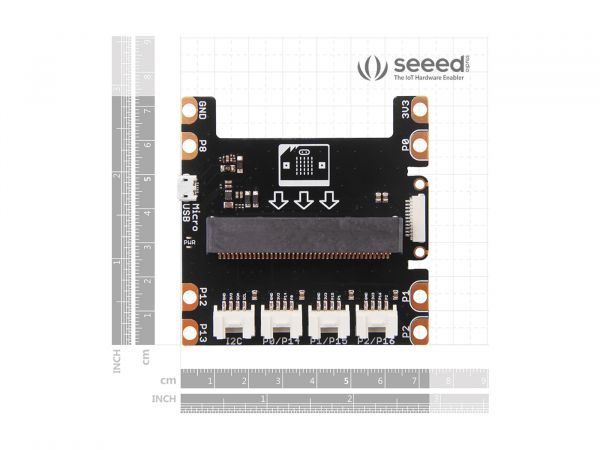

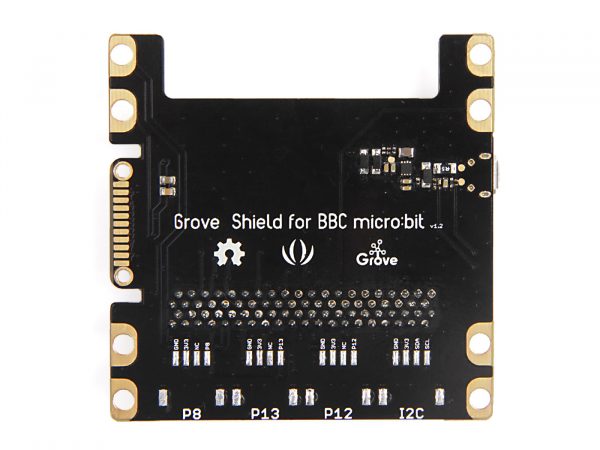

As an extension board, the grove shield for micro:bit integrated 4 grove connectors on board and reserves extra 4 pin outs if users need more grove connector. Apart from that, we have also reserved some pinout that has special functions such as P0, P1, P2 that  have touch function, so that you can build project like fruit piano. Or you can simple use crocodile clip to connect the pinout, just like what you can do on micro:bit. Thirdly, with the on-board micro USB interface, you can power micro:bit from the grove shield.

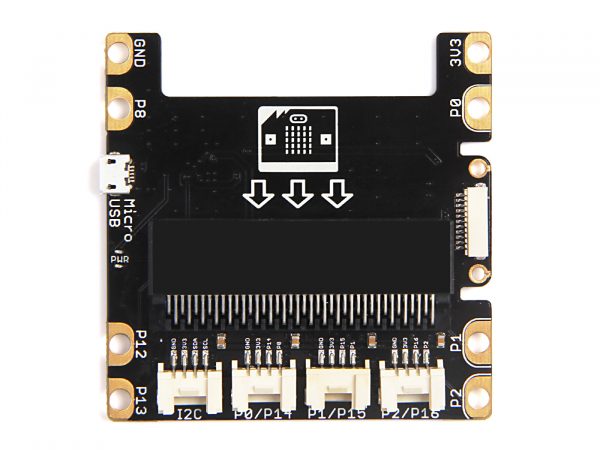

  • 4 Grove ports to cover different interfaces
  • Edge connectors for crocodile clip and 4mm banana plugs

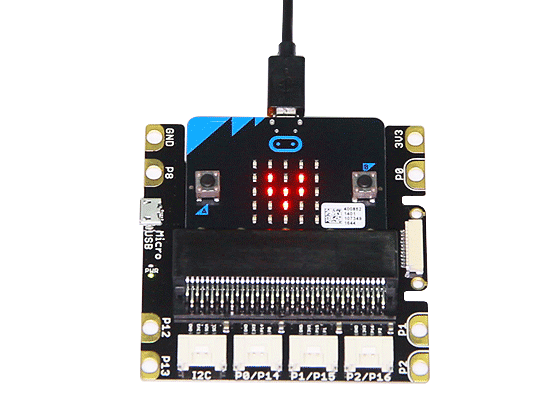

  • On-board USB port to power up your micro:bit

Technical Details

Weight G.W 27.5g
Battery Exclude
DC Interfaces Micro USB x1
Grove Interface P0/P14,P1/P15,P2/P16,I2C
Grove ZERO Interface Grove ZERO x1
Logic Interface 3V3/P0/P1/P2/P8/P12/P13/GND

Part List

Grove Shield for micro:bit 1
