- 商品說明
商品說明
Grove Laser PM2.5 雷射粉塵感測器 PM10顆粒度檢測 TSP空氣品質感測
Grove PM2.5傳感器(HM3301)是新一代的激光灰塵檢測傳感器,用於連續實時地檢測空氣中的灰塵。 它具有穩定的輸出,低噪聲和超低功耗,適用於空調,智能空氣淨化器和其他與空氣質量有關的物聯網項目。 與傳統的泵送粉塵檢測傳感器不同,HM-3301創新地使用風扇葉片來驅動空氣,並且流經檢測室的空氣被用作測試樣本,以對不同粒徑的灰塵進行實時連續測試 在空中。 該模組是粉塵檢測器,智能空氣淨化器,智能空調,智能換氣扇,空氣質量測試,霧度計,環境監測以及相關產品和應用的理想選擇。
特徵
- 實時連續檢測空氣中的塵埃濃度
- 對0.3μm或更大的灰塵顆粒具有高靈敏度
- 基於激光散射技術,讀數準確,穩定且一致
- 低噪音,超低功耗
應用
- 空氣淨化器,空調
- 空氣質量檢測設備
- 工業PM值分析
- 煙塵檢測與分析
- 實時PM2.5,PM10,TSP檢測器
- 多通道粒子計數器
- 環境檢測設備
引腳輸出
Documents
- Grove – 激光 PM2.5 傳感器 (HM3301) Eagle 文件
- Seeed_PM2_5_sensor_HM3301 軟件庫
- 數據表 HM3301

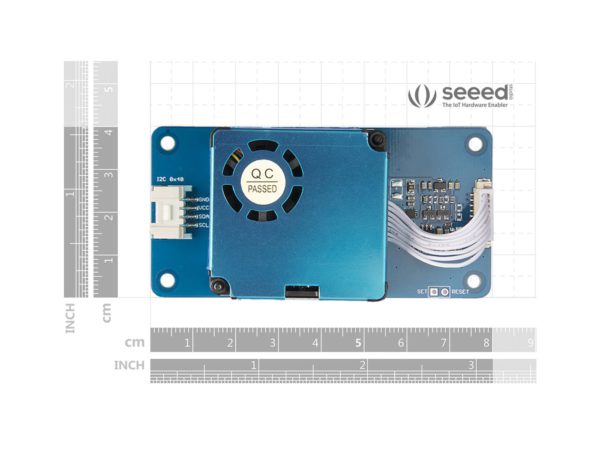

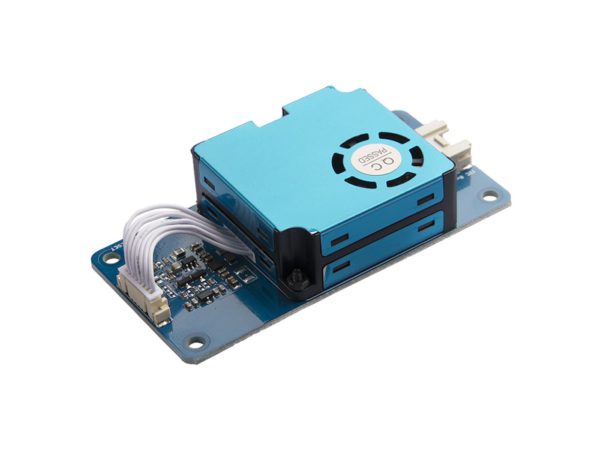

- Grove – Laser PM2.5 Sensor (HM3301)
=========================================================
Grove – Laser PM2.5 Dust Sensor – Arduino Compatible – HM3301
Features
- Real-time & continuous detection of dust concentration in the air
- High sensitivity on dust particles of 0.3 μm or greater
- Based on laser light scattering technology, readings are accurate, stable, and consistent
- Low noise and Ultra-low power consumption
Description
The Grove – Laser PM2.5 Sensor (HM3301) is a new generation of laser dust detection sensor, which is used for continuous and real-time detection of dust in the air. With its stable output, low noise, and ultra-low power consumption, it is suitable for air conditioners, intelligent air purifiers, and other air quality-related IoT projects.
Different from the traditional pumping dust detection sensor, the HM-3301 innovatively uses fan blades to drive air, and the air flowing through the detection chamber is used as a test sample to perform a real-time and continuous test on dust of different particle sizes in the air.
This module is a perfect choice for dust detectors, intelligent air purifiers, intelligent air conditioners, intelligent ventilation fans, air quality testing, haze meters, environmental monitoring, and relative products and applications.
Typical Applications
- Air purifier, air conditioner
- Air quality testing equipment
- Industrial PM value analysis
- Dust and smoke detection and analysis
- Real-time PM2.5, PM10, TSP detector
- Multichannel particle counter
- Environmental testing equipment
Pin Out
Part List
Grove – Laser PM2.5 Sensor (HM3301) | 1 |
Grove Cable | 1 |
