Grove-Blue LED Button 按鈕開關 帶藍色LED燈 seeed

商品說明

Grove – Blue LED Button 按鈕開關 帶藍色LED燈

穩定可靠，使用壽命長達100000倍。使用內置的LED，您可以將其應用於許多有趣的項目，使用LED來顯示按鈕的狀態確實很有用。我們使用高質量的N溝道MOSFET來控制LED，以確保高開關速度和低功耗。

特徵

• 使用壽命長
• 使用方便
• Grove Digital接口



接口說明



出貨清單

• Grove – Blue LED Button x1
• Grove連接線 x1



Documents

• Grove-LED Button Eagle file
• Grove-LED_Button wiki



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

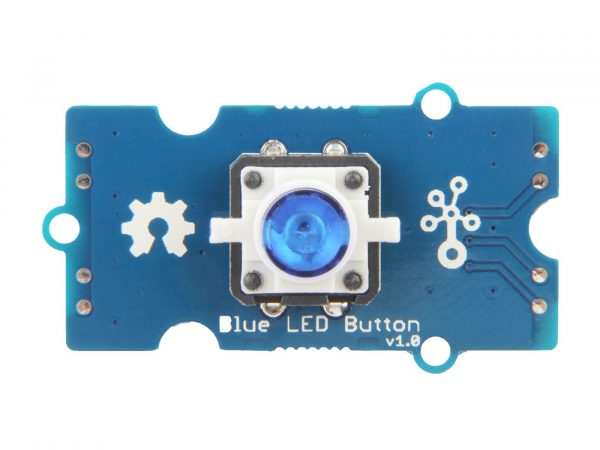

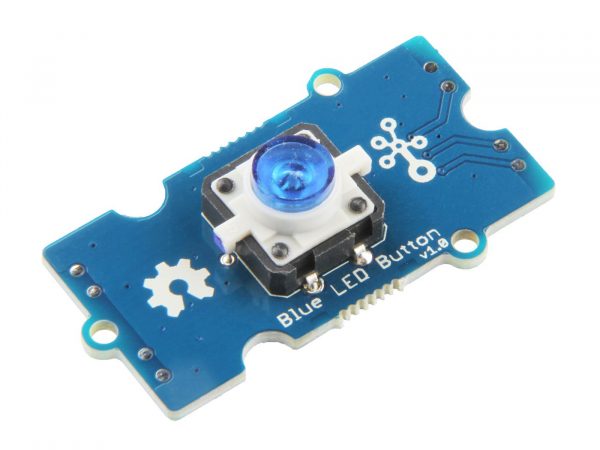

Grove – Blue LED Button

The Grove – Blue LED Button is stable and reliable with a 100 000 times long life. With the build-in LED, you can apply it to many interesting projects, it is really useful to use the LED to show the status of the button. We use a high-quality N-Channel MOSFET to control the LED to ensure the high switching speed and low power consumption. All in all, you want some really awesome button? Here you go …

Features

• Long operating life
• Easy to use
• Grove Digital interface

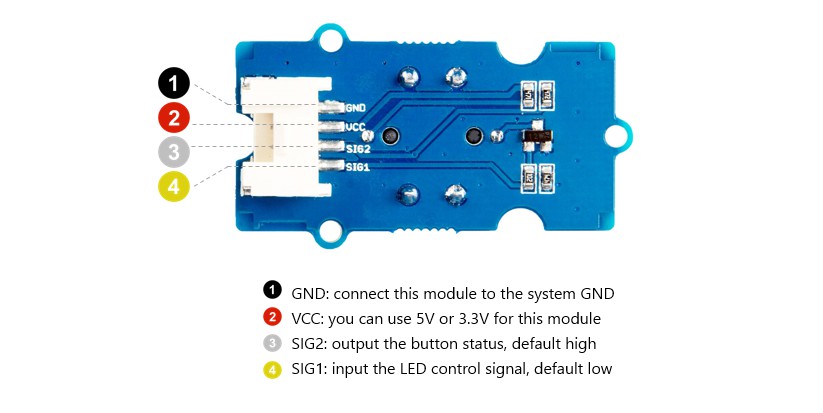

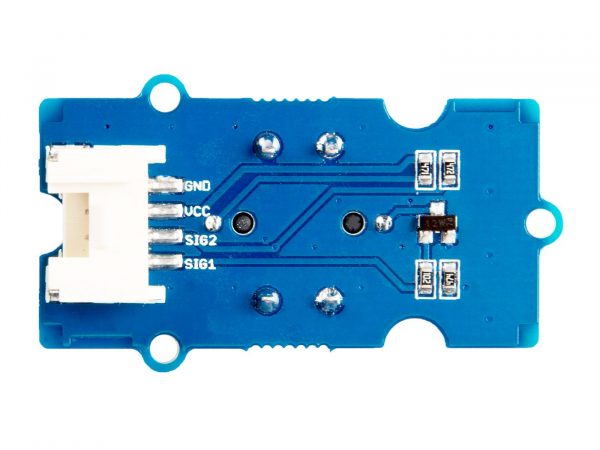

Pin Map

Part List

• Grove – Blue LED Button x1
• Grove cable x1
