Grove Base Hat for Raspberry Pi Zero 擴展板 seeed原廠

-11%

Grove Base Hat for Raspberry Pi Zero 擴展板 seeed原廠

NT$333 NT$295 未稅

尚有庫存

    • 850 NT$
  • 商品說明
  • 評論 (0)

商品說明

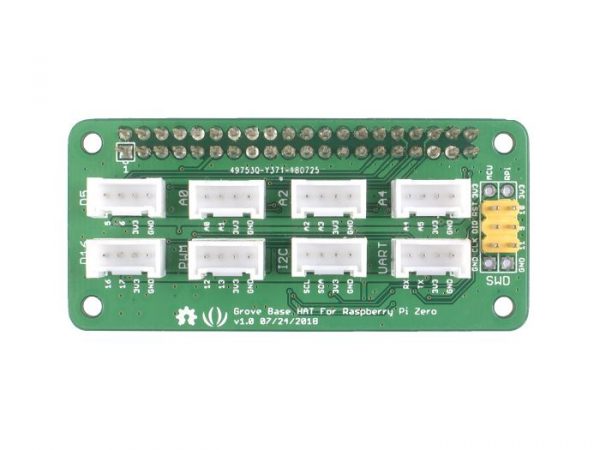

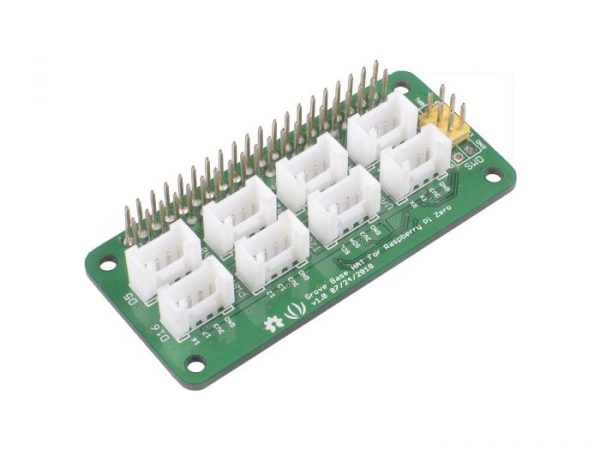

Grove Base Hat for Raspberry Pi Zero 擴展板

如今,Grove系列的傳感器,執行器和顯示器已成長為一個大家族。將來,越來越多的模塊將加入整個系統。我們看到Grove幫助成千上萬的製造商,工程師,教師,學生甚至藝術家學習,製作和創造。現在,我們為Raspberry Pi帶來了整個Grove系統。

用於Raspberry Pi Zero的Grove Base Hat提供了數字/模擬/ I2C / PWM / UART端口,可滿足您的所有需求。在內置MCU的幫助下,Raspberry Pi還提供了一個12位6通道ADC。目前,已有60多個 groves支持Raspberry Pi的Grove Base Hat。此外,我們將繼續向兼容列表中添加新的兼容模塊。

與Grove Pi +相比,Raspberry Pi Zero的Grove Base Hat不使用ATMEGA芯片進行數據轉換,因此運行速度更快。我們為Raspberry Pi Zero的Grove Base Hat提供了Raspberry Pi驅動程序。更重要的是,Raspberry Pi Zero的Grove Base Hat更具成本效益。

出貨清單不包含 Raspberry Pi Zero。



特徵

  • 支持Raspberry 2/ 3 B/B+ Zero/4
  • 內置MCU
  • 12位ADC
  • 多型Grove端口



Pin Out



規格參數

Item Value
Operating Voltage 3.3V
MCU STM32
ADC 12-bit 6 channel
Grove Port 2 Digital
3 Analog
1 I2C
1 PWM
1UART
Raspberry pi communication bus I2C
I2C Address 0x04



出貨清單

  • Grove Base Hat擴展版 x1



Documents



=========================================================



Grove Base Hat for Raspberry Pi Zero

Today, the grove series of sensors, actuators, and displays have grown into a large family. More and more grove modules will join the whole Grove ecosystem in the future. We see the Grove helps hundreds of thousands of makers, engineers, teachers, students and even artists to learn, to make, to create…We always know it is our responsibility to make the Grove module compatible with more platforms. Now we bring you the Grove Base Hat for Raspberry Pi and Grove Base Hat for Raspberry Pi Zero, in another word, we bring the Raspberry Pi the whole Grove System.

The Grove Base Hat for Raspberry Pi Zero provides Digital/Analog/I2C/PWM/UART port to meet all your needs. With the help of build-in MCU, a 12-bit 6 channel ADC is also available for Raspberry Pi.

Currently, more than 60 groves have supported the Grove Base Hat for Raspberry Pi . In addition, we will continue to add new compatible modules to the compatible list, the more you use, the more grove will be added.

Compared with Grove Pi+, the Grove Base Hat for Raspberry Pi Zero does not use the ATMEGA chip for data conversion, so it runs faster. We provide the Raspberry Pi driver for Grove Base Hat for Raspberry Pi Zero. What’s more, Grove Base Hat for Raspberry Pi Zero is much more cost-effective. In other words, we lowered the threshold for using the grove series on the Raspberry Pi. We hope you like it, enjoy 😀

Attention

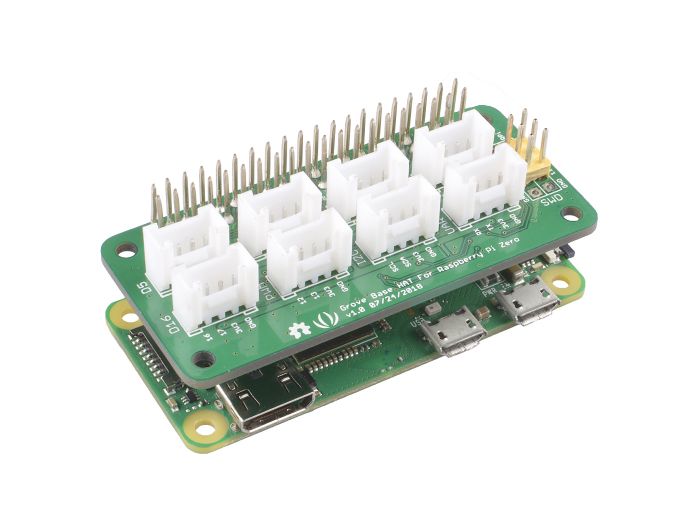

This hat do not contain a Raspberry Pi Zero, the second picture is just a connection diagram. If you need one, you can click Raspberry Pi Zero.

Features

  • Support Raspberry 2/ 3 B/B+ Zero/4
  • build-in MCU
  • 12-bit ADC
  • Multi-type Grove port
  • Compatible : Raspberry Pi 4

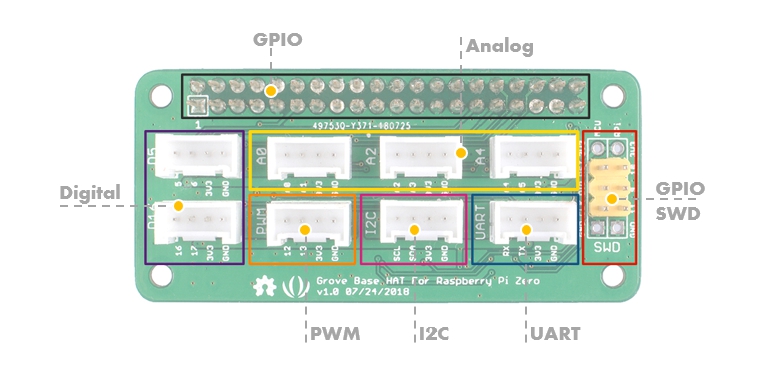

Pin Out

Technical details

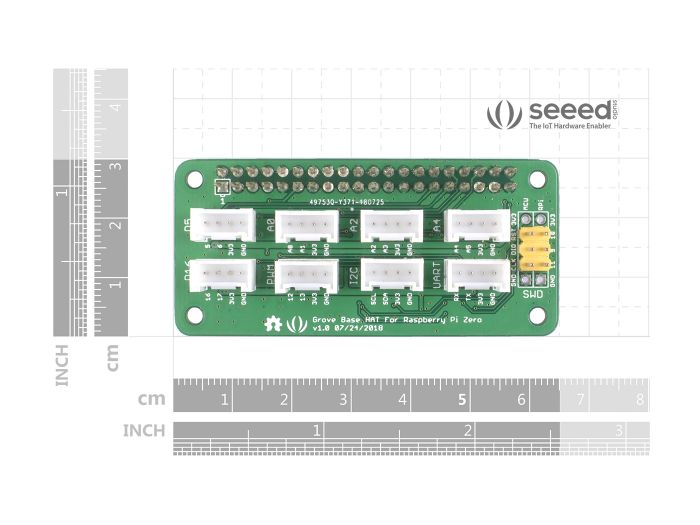

Dimensions 30mm x65mm x20mm
Weight G.W 14.9g
Battery Exclude
Operating Voltage 3.3 V
MCU STM32

Part List

Grove Base Hat for Raspberry Pi Zero 1
