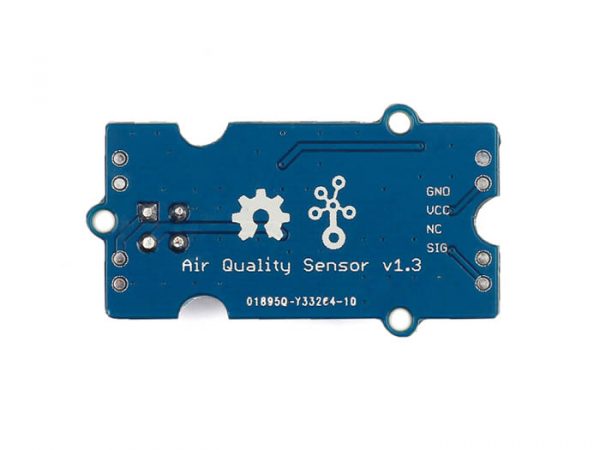

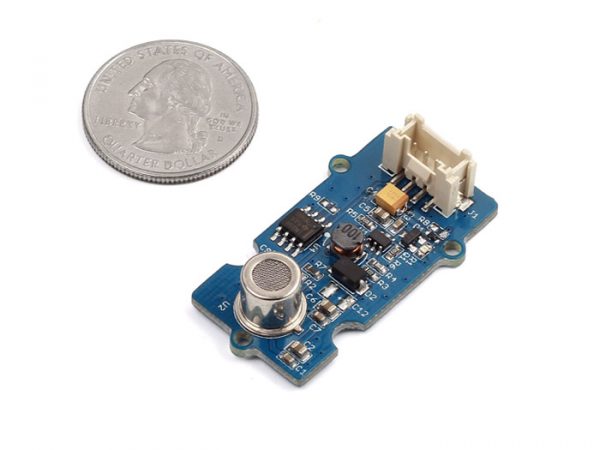

Grove – Air quality sensor v1.3 空氣品質感測器模組 支援 Arduino 與 Raspberry Pi seeed原廠

NT$457 NT$314 未稅

Grove – Air quality sensor 空氣品質感測器模組是專為室內空氣品質檢測的傳感器模組。主要可以監測的氣體是一氧化碳,醇,丙酮,稀釋劑,甲醛等輕微毒性氣體。本模組兼容 5V和3.3V電源。

尚有庫存

  • 商品說明
  • 額外資訊
  • 原廠資料
  • 技術文件
  • 評論 (1)

商品說明

Grove – Air quality sensor 空氣品質感測器模組是專為室內空氣品質檢測的傳感器模組。主要可以監測的氣體是一氧化碳,醇,丙酮,稀釋劑,甲醛等輕微毒性氣體。本模組兼容 5V和3.3V電源。
本感測器支援  Arduino 與 Raspberry Pi 使用
產品特點:
  • 低功耗
  • 高靈敏度
  • 小尺寸封裝
  • 可偵測多種目標氣體
  • 低成本高效益
  • 耐用持久
  • 兼容5V和3.3V電源
規格:
傳感器晶片:Winsen MP503
電源:5V或3.3V
尺寸:40x20mm

額外資訊

MCU 相容

Arduino, Raspberry Pi

Introduction

This sensor is designed for comprehensive monitor over indoor air condition. It’s responsive to a wide scope of harmful gases, as carbon monixide, alcohol, acetone, thinner, formaldehyde and so on. Due to the measuring mechanism, this sensor can not output specific data to describe target gases’ concentrations quantitatively. But it’s still competent enough to be used in applications that require only qualitative results, like auto refresher sprayers and auto air cycling systems.

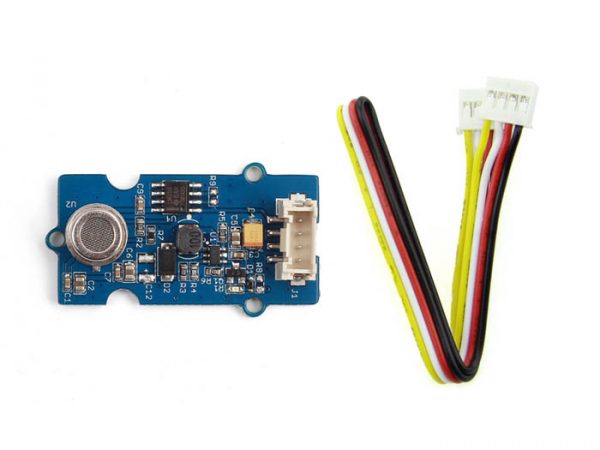

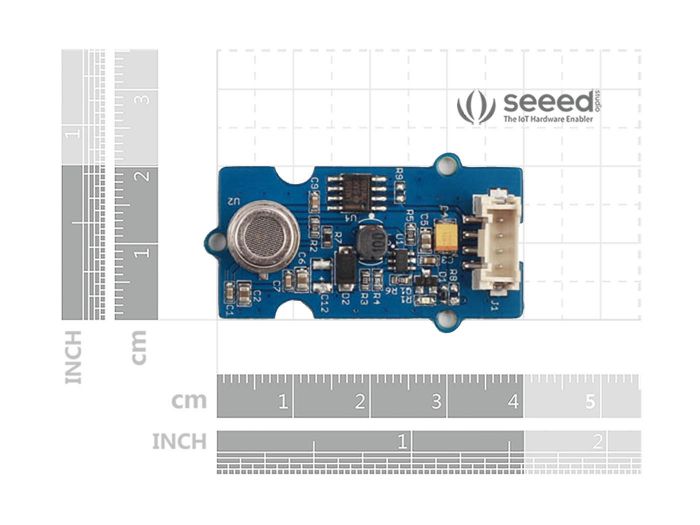

Grove - Air Quality Sensor v1.3 Top.jpg

Features

  • Responsive to a wide scope of target gases
  • Cost efficient
  • Durable
  • Compatible with 5V and 3.3V

Cautions

  • Requires relatively clean air as an initial condition.
  • Long time exposure to highly polluted air can significantly weaken its sensitivity.
  • Coffre-fort et armoire forte:

Il convient de sécuriser les prouctions dans une armoire forte ignifuge blindée (Computer translation: Safe and strong cabinet: It should secure product in a strong armored fireproof cabinet, spam in french?)

Usage

With Arduino

As described in Introduction, this sensor does better in providing qualitative results over a wide scope of target gases. In this demo, we define 4 statuses for reference in the .cpp file. They are:

a. air fresh — indicating a good air condition
b. low pollution — indicating a rather low concentration of target gases exist.
c. high pollution(without “Force signal active” message printed on serial monitor) — you should be aware of the pollution level and consider if some measures could be taken.
d. high pollution(with “Force signal active” message printed on serial monitor) — instant measures should be taken to improve the air quality.

We encapsulated the decision structure in a .cpp file. You can find info in there on how to modify the thresholds.

Let’s try it out!
1. Connect the Sensor to A0 port of Grove – Base Shield.
Grove - Air Quality Sensor v1.3 Test.jpg
2. Download the File :AirQuality_Sensor Library.

3. Wait at least 2 minutes after powering on for heat-up of the sensor. Then open the example below by the path: File -> Example ->AirQuality_Sensor->AirQuality_Sensor.

/*
AirQuality Demo V1.0.
connect to A1 to start testing. it will needs about 20s to start
* By: http://www.seeedstudio.com
*/
#include "AirQuality.h"
#include "Arduino.h"
AirQuality airqualitysensor;
int current_quality =-1;
void setup()
{
Serial.begin(9600);
airqualitysensor.init(14);
}
void loop()
{
current_quality=airqualitysensor.slope();
if (current_quality >= 0)// if a valid data returned.
{
if (current_quality==0)
Serial.println("High pollution! Force signal active");
else if (current_quality==1)
Serial.println("High pollution!");
else if (current_quality==2)
Serial.println("Low pollution!");
else if (current_quality ==3)
Serial.println("Fresh air");
}
}
ISR(TIMER2_OVF_vect)
{
if(airqualitysensor.counter==122)//set 2 seconds as a detected duty
{

airqualitysensor.last_vol=airqualitysensor.first_vol;
airqualitysensor.first_vol=analogRead(A0); // change this value if you use another A port
airqualitysensor.counter=0;
airqualitysensor.timer_index=1;
PORTB=PORTB^0x20;
}
else
{
airqualitysensor.counter++;
}
}

4. Upload the code. Please click here if you do not know how to upload it.

5. Open serial monitor.

AirQualitySensot Demo.jpg

To adjust the thresholds and indicating messages, refer to the decision structure below in the .cpp file.

 int AirQuality::slope(void)
{
while(timer_index)
{
if(first_vol-last_vol>400||first_vol>700)
{
Serial.println("High pollution! Force signal active.");
timer_index=0;
avg_voltage();
return 0;

}
else if((first_vol-last_vol>400&&first_vol<700)||first_vol-vol_standard>150)
{
Serial.print("sensor_value:");
Serial.print(first_vol);
Serial.println("t High pollution!");
timer_index=0;
avg_voltage();
return 1;

}
else if((first_vol-last_vol>200&&first_vol<700)||first_vol-vol_standard>50)
{
//Serial.println(first_vol-last_vol);
Serial.print("sensor_value:");
Serial.print(first_vol);
Serial.println("t Low pollution!");
timer_index=0;
avg_voltage();
return 2;
}
else
{
avg_voltage();
Serial.print("sensor_value:");
Serial.print(first_vol);
Serial.println("t Air fresh");
timer_index=0;
return 3;
}
}
return -1;
}

With Raspberry Pi

1.You should have got a raspberry pi and a grovepi or grovepi+.
2.You should have completed configuring the development enviroment, otherwise follow here.
3.Connection

  • Plug the sensor to grovepi socket A0 by using a grove cable.

4.Navigate to the demos’ directory:

   cd yourpath/GrovePi/Software/Python/
  • To see the code
   nano grove_air_quality_sensor.py   # "Ctrl+x" to exit #
import time
import grovepi

# Connect the Grove Air Quality Sensor to analog port A0
# SIG,NC,VCC,GND
air_sensor = 0

grovepi.pinMode(air_sensor,"INPUT")

while True:
    try:
        # Get sensor value
        sensor_value = grovepi.analogRead(air_sensor)

        if sensor_value > 700:
            print "High pollution"
        elif sensor_value > 300:
            print "Low pollution"
        else:
            print "Air fresh"

        print "sensor_value =", sensor_value
        time.sleep(.5)

    except IOError:
        print "Error"

5.Run the demo.

   sudo python grove_air_quality_sensor.py
Download File Not available

1 review for Grove – Air quality sensor v1.3 空氣品質感測器模組 支援 Arduino 與 Raspberry Pi seeed原廠

  1. 5 滿分 5 分

    挺靈敏的, 我的案子可以交了


只有註冊並且購買過商品的顧客才能撰寫評論
