Grove – 3-Axis Digital Accelerometer (±16g) 3軸數字加速度計 seeed原廠

-19%

Grove – 3-Axis Digital Accelerometer (±16g) 3軸數字加速度計 seeed原廠

NT$395 NT$319 未稅

這是一種高精度數字加速度計,可提供最高3.9mg / LSB分辨率和高達±16g測量範圍。

尚有庫存

  • 商品說明
  • 評論 (0)

商品說明

Grove – 3-Axis Digital Accelerometer (±16g) 3軸數字加速度計

基於出色的ADXL-345,3-Axis Digital Accelerometer 數字3軸加速度計具有出色的EMI保護。其可變輸出使其適用於廣泛的應用:
  • 硬盤震動保護
  • 振動傳感器
  • 遊戲控制器輸入
  • 機器人
  • 智能車輛
  • 任何你需要獲得運動感應和方向信息。
卓越的靈敏度(3.9mg / LSB @ 2g)可提供高達±16g的高精度輸出。該傳感器採用4針Grove接口(3-5VDC),方便與標準Arduino設備或Seeed Stalker連接。
Grove - 3軸數字加速度計(±16g)

特徵

  • 寬功率範圍DC3V至5V
  • Grove模塊
  • 3軸感應
  • 高靈敏度
  • 小巧,薄型封裝:14端子LGA
  • VS = 2.5 V(典型值)時,待機模式下的低功耗0.1μA
  • 能承受10,000克振動
  • 符合RoHS / WEEE無鉛標準

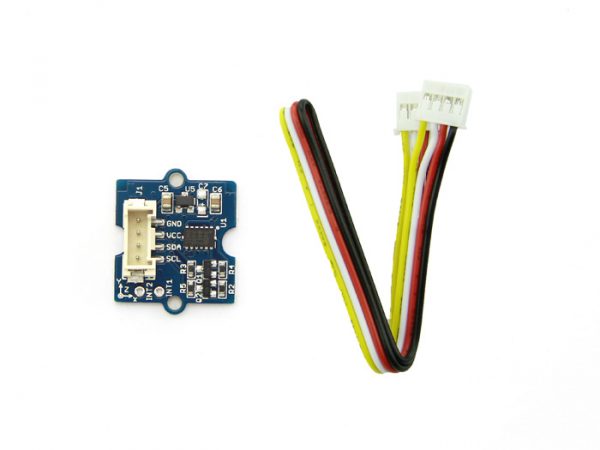

出貨清單

  • Grove – 3-Axis Digital Accelerometer (±16g) x1
  • Grove連接線 x1



Documents



=========================================================



Grove – 3-Axis Digital Accelerometer(±16g)

Based on the excellent ADXL-345, this digital 3-axis accelerometer has excellent EMI protection. Its variable output makes it suitable for a wide range of applications:
  • HDD shock protection
  • Vibration sensor
  • Game controller input
  • Robotics
  • Smart vehicles
  • Anywhere you need to obtain motion-sensing & orientation information.
The excellent sensitivity (3.9mg/LSB @2g) provids high-precision output up to ±16g.
The sensor is utilizes a 4-pin Grove interface (3-5VDC) for easy connectivity with your standard Arduino device or Seeed Stalker.
Features
  • Wide power range DC3V to 5V
  • Grove module
  • 3 axis sensing
  • High sensitivity
  • Small, low-profile package: 14-Terminal LGA
  • Low power 0.1 μA in standby mode at VS = 2.5 V (typical)
  • 10,000 g shock survival
  • RoHS/WEEE lead-free compliant
For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface – Getting Started and Introduction to Grove before your using of the product.
