Force Sensitive Resistor – FSR400 Small 電阻式壓力感測器 SparkFun原廠

商品說明

Force Sensitive Resistor – FSR400 Small 電阻式壓力感測器 美國 SparkFun 原裝進口 min:2g

直徑為0.16“（4 mm）的有源感應區域，Interlink Electronics的FSR會根據傳感區域的壓力而改變其阻力，力越強，電阻越小，當沒有壓力應用於FSR，其電阻將大於1MΩ，全壓施加電阻為2.5kΩ。



特徵

• 驅動力低至2克
• 寬力靈敏度範圍0.1N – 10N *總長度：1.75“
• 總寬：0.28“
• 感應面積：0.3“



Documents

• 數據表（400 FSR）
• 連接指南
• FSR集成指南



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



Force Sensitive Resistor – Small

Interlink Electronics FSRTM 400 series is part of the single zone Force Sensing ResistorTM family. Force Sensing Resistors, or FSRs, are robust polymer thick film (PTF) devices that exhibit a decrease in resistance with increase in force applied to the surface of the sensor. This force sensitivity is optimized for use in human touch control of electronic devices such as automotive electronics, medical systems, and in industrial and robotics applications. The standard 400 sensor is a round sensor 7.62mm in diameter. Custom sensors can be manufactured in sizes ranging from 5mm to over 600mm. Female connector and short tail versions can also be ordered.

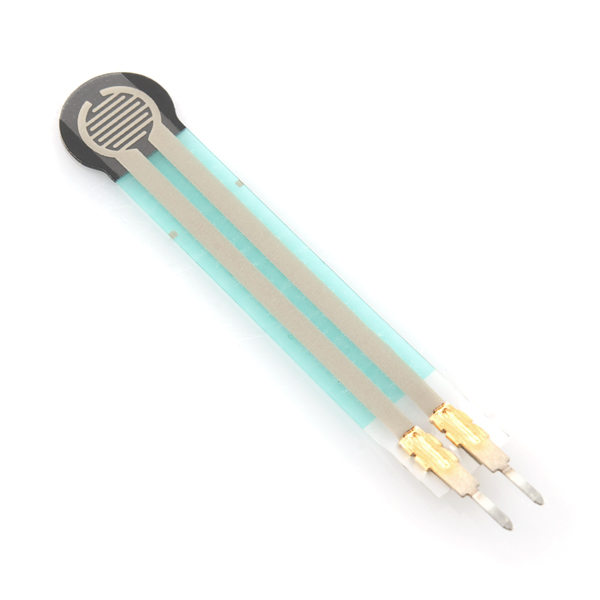

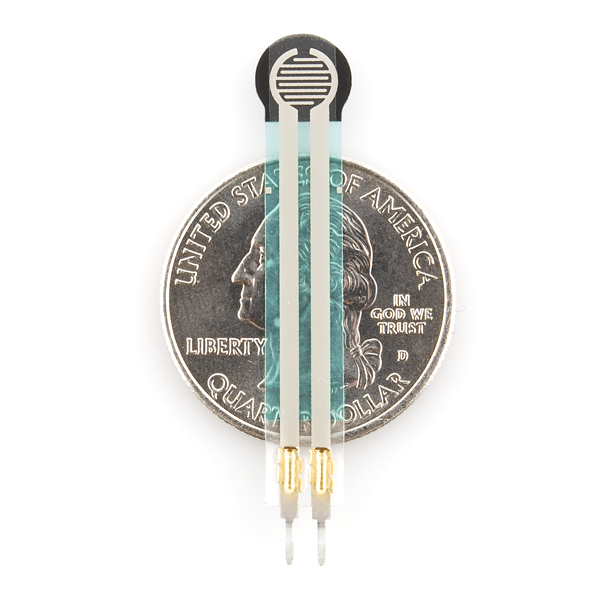

This is a small force sensitive resistor. It has a 0.16″ (4 mm) diameter active sensing area. This FSR from Interlink Electronics will vary its resistance depending on how much pressure is being applied to the sensing area. The harder the force, the lower the resistance. When no pressure is being applied to the FSR, its resistance will be larger than 1MΩ, with full pressure applied the resistance will be 2.5kΩ.

Two pins extend from the bottom of the sensor with 0.1″ pitch making it bread board friendly.

These sensors are simple to set up and great for sensing pressure, but they aren’t incredibly accurate. Use them to sense if it’s being squeezed, but you may not want to use it as a scale.

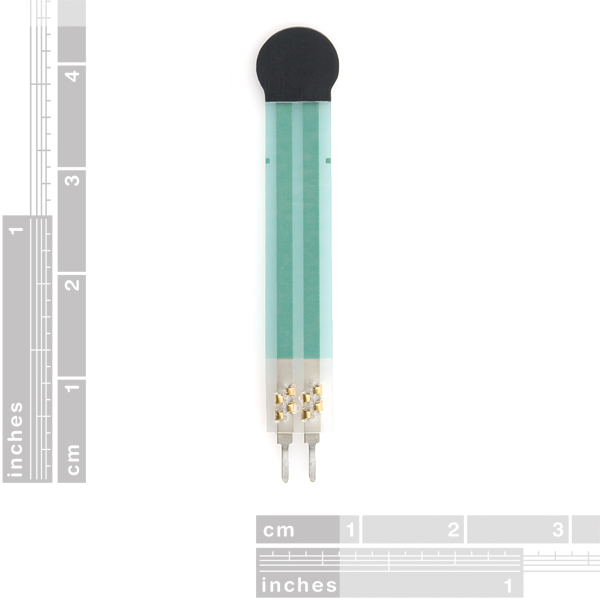

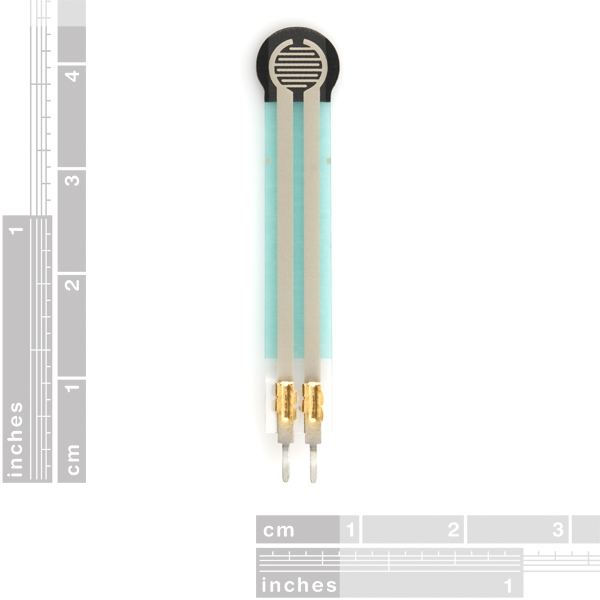

Dimensions

• Overall length: 1.75″
• Overall width: 0.28″
• Sensing area: 0.3″

Features

• Actuation Force as low as 2 grams
• Wide force sensitivity range 0.1N – 10N

Documents:

• Datasheet (400 FSR)
• FSR Integration Guide
• Bildr Tutorial
