Flex Sensor SpectraSymbol 2.2″ 彎曲感測器 SparkFun原廠

商品說明

Flex Sensor SpectraSymbol 2.2″ 彎曲感測器 SparkFun原廠

Flex Sensor SpectraSymbol 2.2″  ： 一個簡單的伸縮傳感器，長度為2.2英寸。 當感測器彎曲時，感測器上的電阻增加。 Spectra Symbol的專利技術 – 他們聲稱這些傳感器用於最初的Nintendo Power Glove。 我喜歡Nintendo Power Glove。 太糟糕了！

當金屬墊位於彎曲的外側（彎曲內側的文本）時，柔性傳感器的電阻會發生變化。

連接器間隔0.1英寸，麵包板友好。 檢查數據表以獲取完整規格。

注意：請避免在底座上彎曲或拉緊此傳感器。 傳感器的可用範圍可以毫無問題地彎曲，但應注意盡量減少可用範圍之外的彎曲。 為獲得最佳效果，請牢固安裝底座和底部，並僅允許實際的柔性傳感器彎曲。

Documents

• Datasheet
• ITP Sensor Workshop
• Quickstart Guide

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

Flex Sensor 2.2″

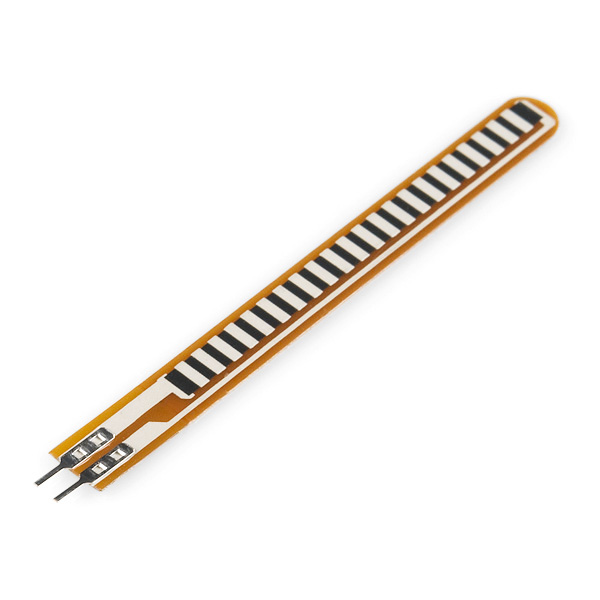

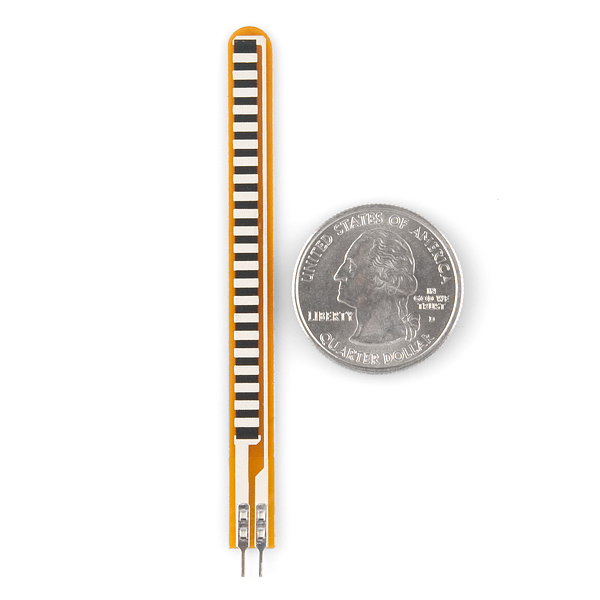

A simple flex sensor 2.2″ in length. As the sensor is flexed, the resistance across the sensor increases. Patented technology by Spectra Symbol – they claim these sensors were used in the original Nintendo Power Glove. I love the Nintendo Power Glove. It’s so bad!

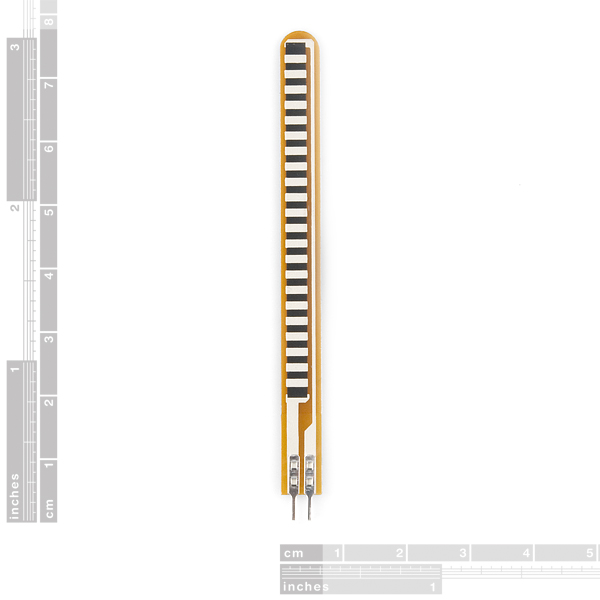

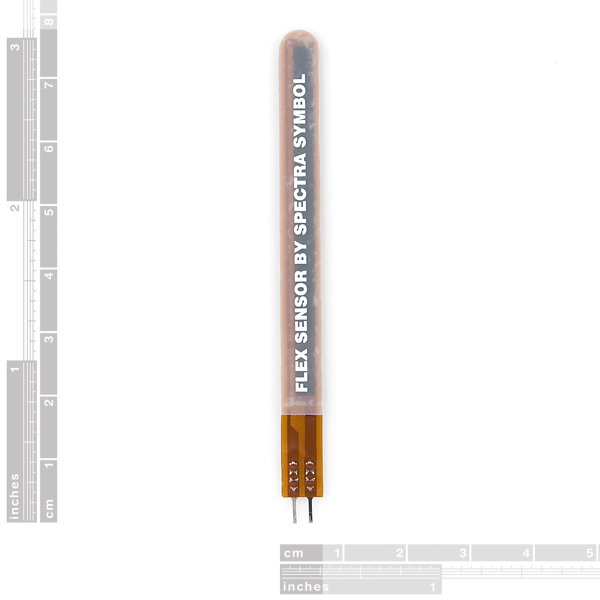

The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on inside of bend).

Connector is 0.1″ spaced and bread board friendly. Check datasheet for full specifications.

Note: Please refrain from flexing or straining this sensor at the base. The usable range of the sensor can be flexed without a problem, but care should be taken to minimize flexing outside of the usable range. For best results, securely mount the base and bottom portion and only allow the actual flex sensor to flex.

Documents

• Datasheet
• ITP Sensor Workshop
• Quickstart Guide
• Bildr Tutorial
